770581-1
Connector Soft Shell 12 600 VAC Plug Double-Row Nylon Plug White | TE Connectivity 770581-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 770581-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

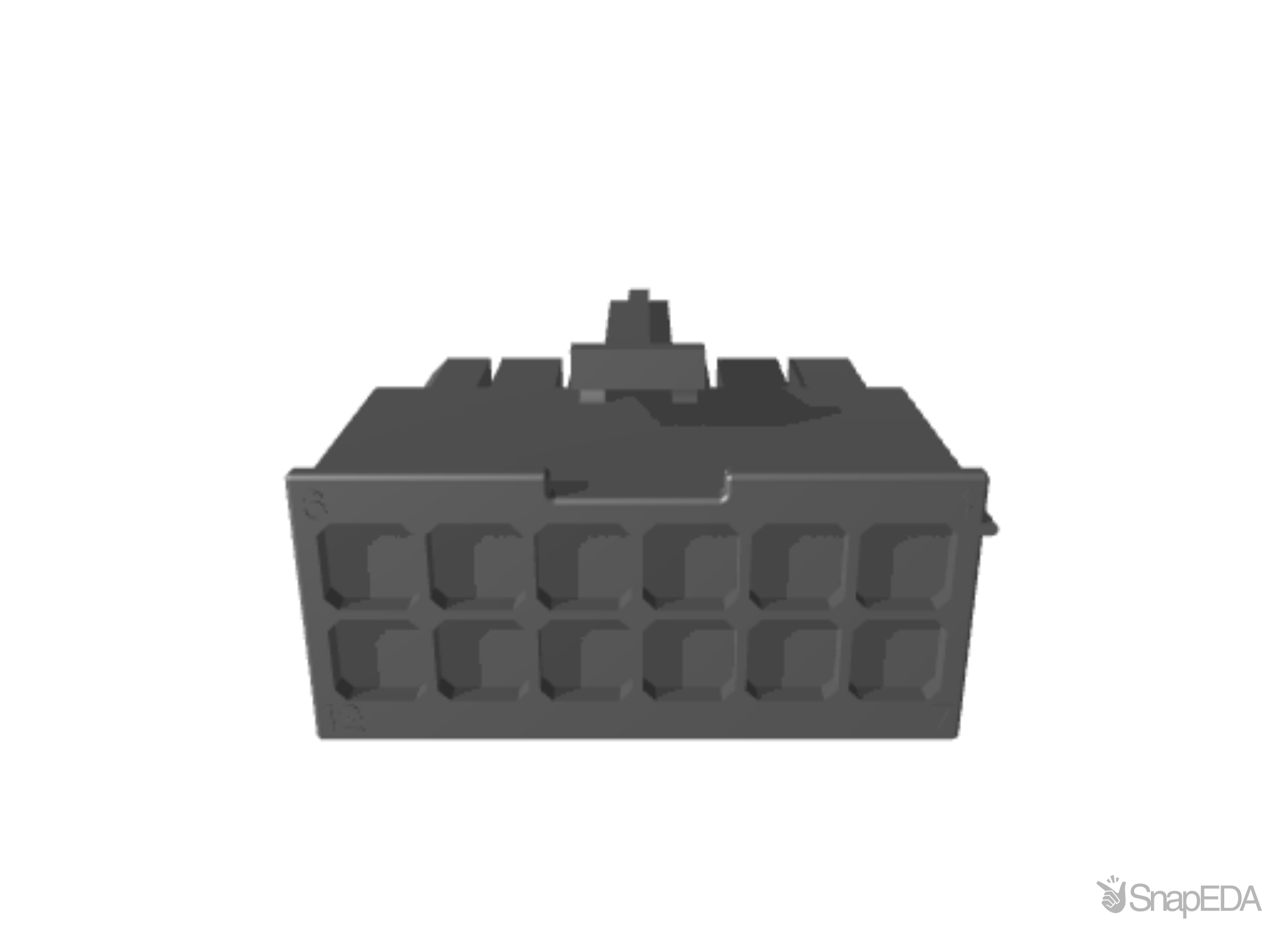

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 770581-1
| Part Name | 770581-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 4.14 |
| Circuit Application | Power & Signal |
| Housing Material | Nylon |
| Row-to-Row Spacing | 4.14 |
| Connector & Contact Terminates To | Wire & Cable |
| Operating Voltage (V) | 600 |
| For Use With | Mini-Universal MATE-N-LOK Cap Housing |
| Number of Positions | 12 |
| Connector System | Wire-to-Wire |
| VDE Tested | No |
| TE Internal Number | 770581-1 |
| UL Rating | Recognized |
| Termination Method to Wire & Cable | Crimp |
| Housing Type | Plug |
| Agency/Standard Number | E28476 |
| Housing Color | White |
| Product Type | Housing |
| Multiple Contact Types | Without |
| Operating Temperature Range | -4 – 221 |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Agency/Standard | UL |
| CSA Rating | Certified |
| Number of Rows | 2 |
| Sealable | No |
| Assembly Integration Feature | Without |
| UL Flammability Rating | UL 94V-0 |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Panel Mount Feature | Without |
| CSA File Number | LR7189 |
| Contact Retention | Without |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 9.5 (A) |
| Mounting Type | Cable Mount |
| Voltage Rating (V) | 600 V ac/dc |
| Gender | Male |
| Housing Material | Nylon |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +105 (°C) |
Inventory for the 770581-1 by TE Connectivity AMP Connectors from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,043
|
|
Visit Site | |
|
★ Featured
|
5,177
|
|
Visit Site | |
|
★ Featured
|
6,700
|
|
Visit Site | |
|
★ Featured
|
839
|
375 x $0.93
|
Visit Site | |
| Arrow Electronics |
5,504
|
|
Visit Site | |
| Onlinecomponents |
566
|
|
Visit Site | |
| Verical |
48
|
17 x $0.53
|
Visit Site |
No issues have been reported for the 770581-1
