770680-1
Conn Housing PL 23 POS Crimp ST Cable Mount Automotive Package
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 770680-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

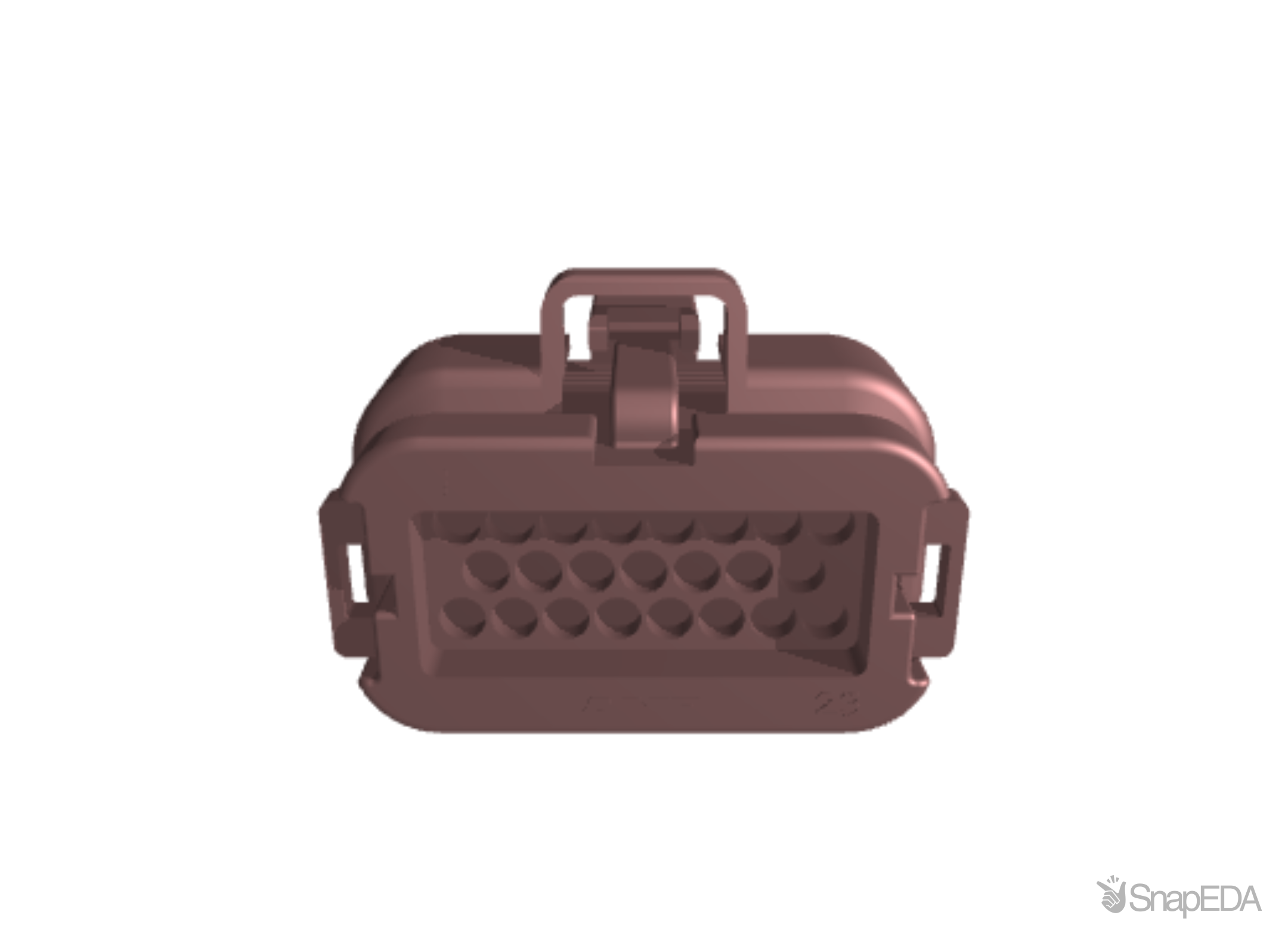

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 770680-1
| Part Name | 770680-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 4 |
| Circuit Application | Power & Signal |
| Mounting Feature | Without |
| Width | 33.6 |
| Operating Voltage (V) | 250 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for female terminals |
| Number of Positions | 23 |
| Operating Temperature Range | -40 – 125 |
| TE Internal Number | 770680-1 |
| Connector System | Wire-to-Board |
| Number of Rows | 3 |
| Sealable | Yes |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | Yes |
| Length | 1.866 |
| Hybrid Connector | No |
| Degree of Protection | IP6K9K |
| Packaging Method | Package |
| Packaging Quantity | 220 |
| Body Material | Other |
| Cable Exit Angle | 180° |
| Serviceable | Yes |
| Strain Relief | Add By Accessory |
| Color | Black |
| UL Flammability Rating | UL 94V-0 |
| Height | 34.6 |
| Row-to-Row Spacing | 4 |
| Primary Locking Feature | Integrated in Housing |
| Mating Pin Diameter | 1.3 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Cable Mount |
| Series | AMPSEAL |
| Housing Material | Nylon |
| Width | 34.6 (mm) |
| Number Of Rows | 3 |
| Gender | Male |
| Number Of Contacts | 23 |
