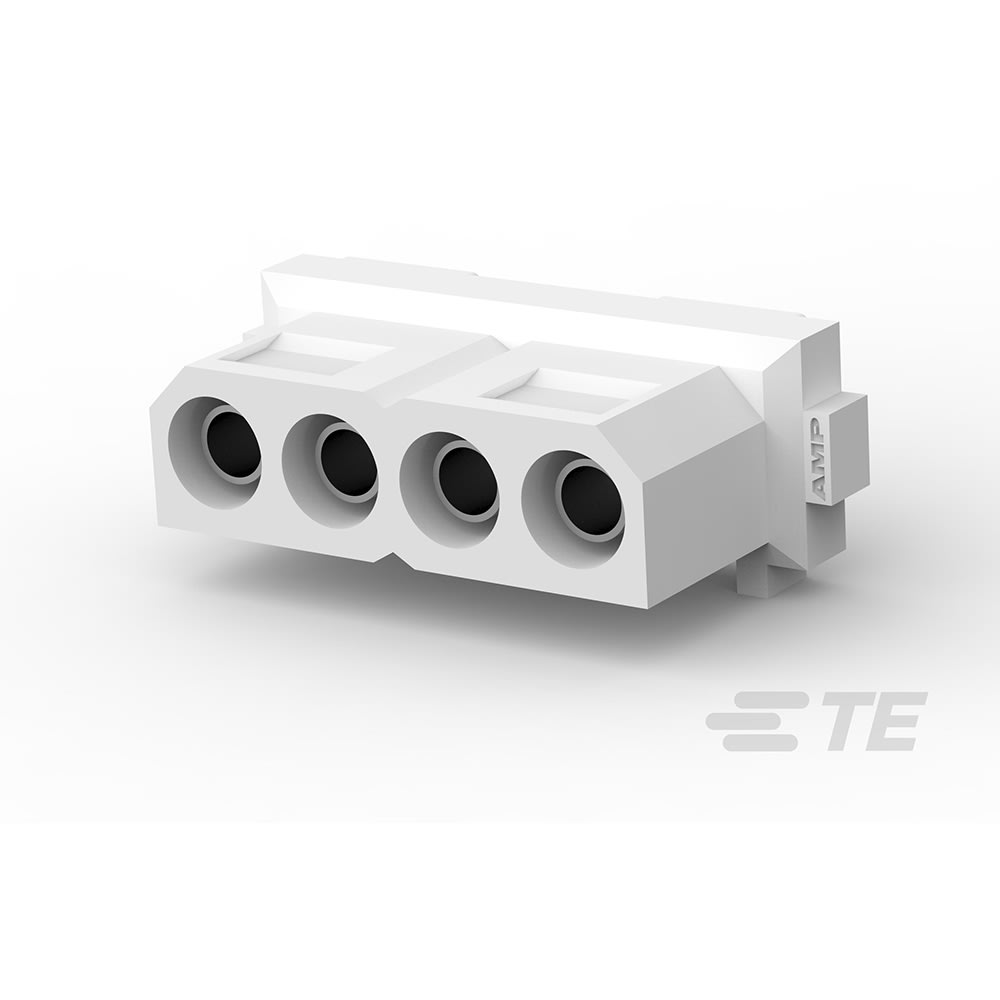

770997-1
MATE-N-LOK HEADER ASY, 04P CMNL SOK HDR ASSY | TE Connectivity 770997-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 770997-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 770997-1
| Part Name | 770997-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .2 |
| Circuit Application | Power |
| UL Flammability Rating | UL 94V-2 |
| Housing Material | Nylon |
| Width | 6.22 |
| Number of Power Positions | 4 |
| Operating Voltage (V) | 250 |
| For Use With | Pin (Cap) Housing |
| Contact Termination Area Plating Material | Pre-Tin |
| UL Rating | Recognized |
| Connector & Contact Terminates To | Printed Circuit Board |
| VDE Tested | No |
| CSA File Number | LR16455 |
| TE Internal Number | 770997-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Housing Type | Plug |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Mating Area Plating Thickness | 3.81 – 5.08 |
| Operating Temperature Range | -67 – 221 |
| Contact Layout | Inline |
| Number of Rows | 1 |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Agency/Standard | CSA |
| Length | 20.93 |
| Number of Positions | 4 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Pre-Tin |
| Mating Retention | With |
| Strain Relief | Without |
| Mating Retention Type | Detent Lock |
| Height | 11.18 |
| Contact Current Rating (Max) (A) | 12 |
| Contact Retention | Without |
| Product Type | Header |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 13 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250 V |
| Series | Commercial MATE-N-LOK |
| Body Orientation | Straight |
| Termination Method | Solder |
| Number Of Rows | 1 |
| Pitch | 5.08 (mm) |
| Number Of Contacts | 4 |
| Type | Wire to Board |
| Contact Material | Bronze |
Inventory for the 770997-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,071
|
|
Visit Site | |
|
★ Featured
|
2,378
|
|
Visit Site | |
|
★ Featured
|
710
|
|
Visit Site | |
|
★ Featured
|
3,830
|
280 x $1.24
|
Visit Site | |
| Arrow Electronics |
30
|
1 x $1.10
|
Visit Site | |
| Onlinecomponents |
4,323
|
|
Visit Site | |
| Verical |
1,194
|
|
Visit Site |
