776164-1
35 way AMPSEAL A key plug. Housing for female terminals; with mating tab width .051 inch/1.3 millimeters Black.
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 776164-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

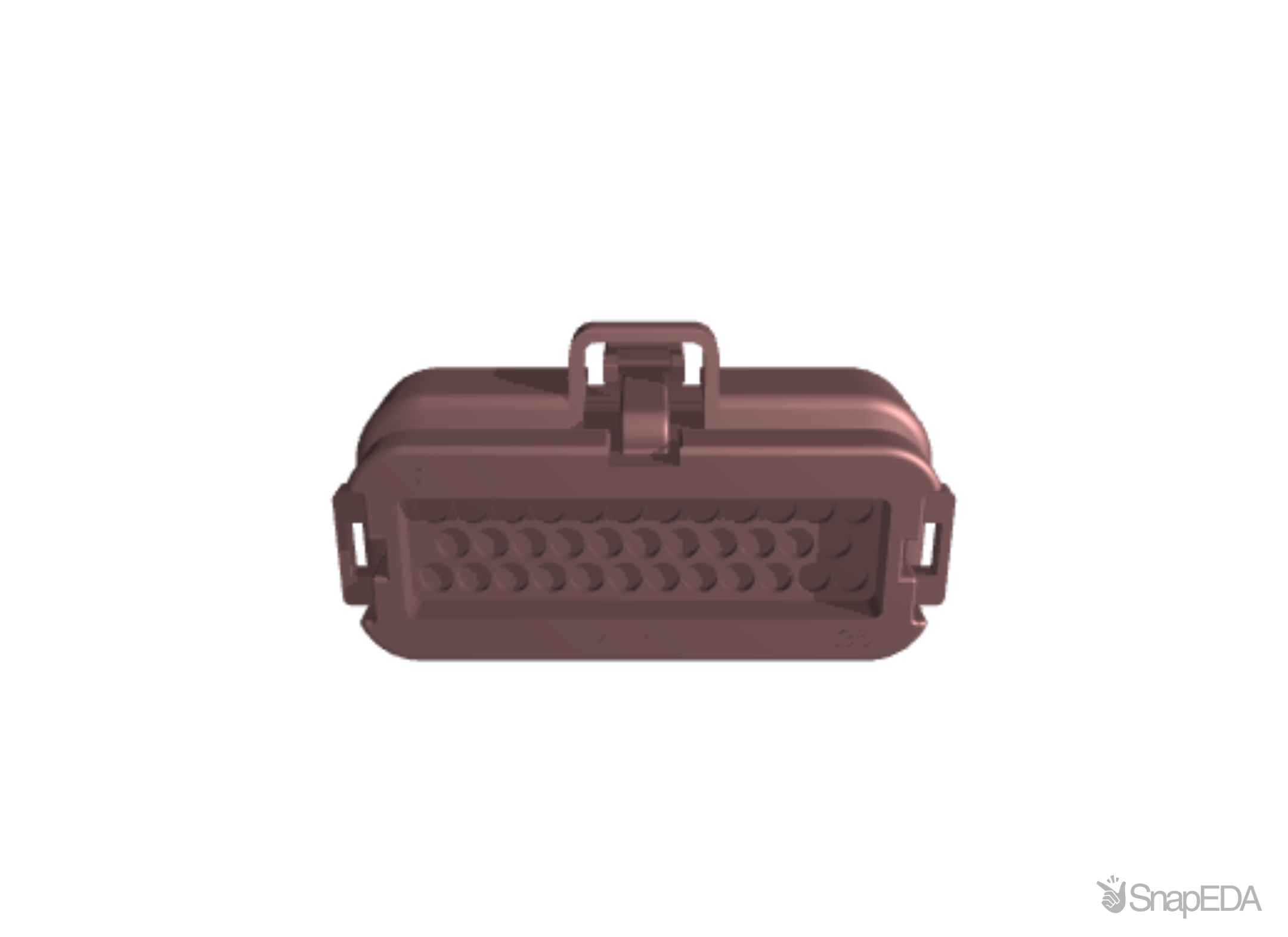

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 776164-1
| Part Name | 776164-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .157 |
| Circuit Application | Power & Signal |
| Mounting Feature | Without |
| UL Flammability Rating | UL 94V-0 |
| Width | 1.323 |
| Operating Voltage (V) | 250 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for female terminals |
| Number of Positions | 35 |
| Operating Temperature Range | -40 – 125 |
| TE Internal Number | 776164-1 |
| Connector System | Wire-to-Device |
| Number of Rows | 3 |
| Strain Relief | Add By Accessory |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 250 |
| Polarized | Yes |
| Hybrid Connector | No |
| Degree of Protection | IP6K9K |
| Packaging Method | Package |
| Packaging Quantity | 220 |
| Body Material | Other |
| Cable Exit Angle | 180° |
| Serviceable | Yes |
| RoHS | True |
| Sealable | Yes |
| Color | Black |
| Length | 2.496 |
| Height | 34.6 |
| Row-to-Row Spacing | 4 |
| Primary Locking Feature | Integrated in Housing |
| Connector Code | 1 |
| Mating Pin Diameter | .051 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Distrelec Product Id | 11048878 |
| Series | AMPSEAL |
| Number Of Contacts | 35 |
| Gender | Female |
