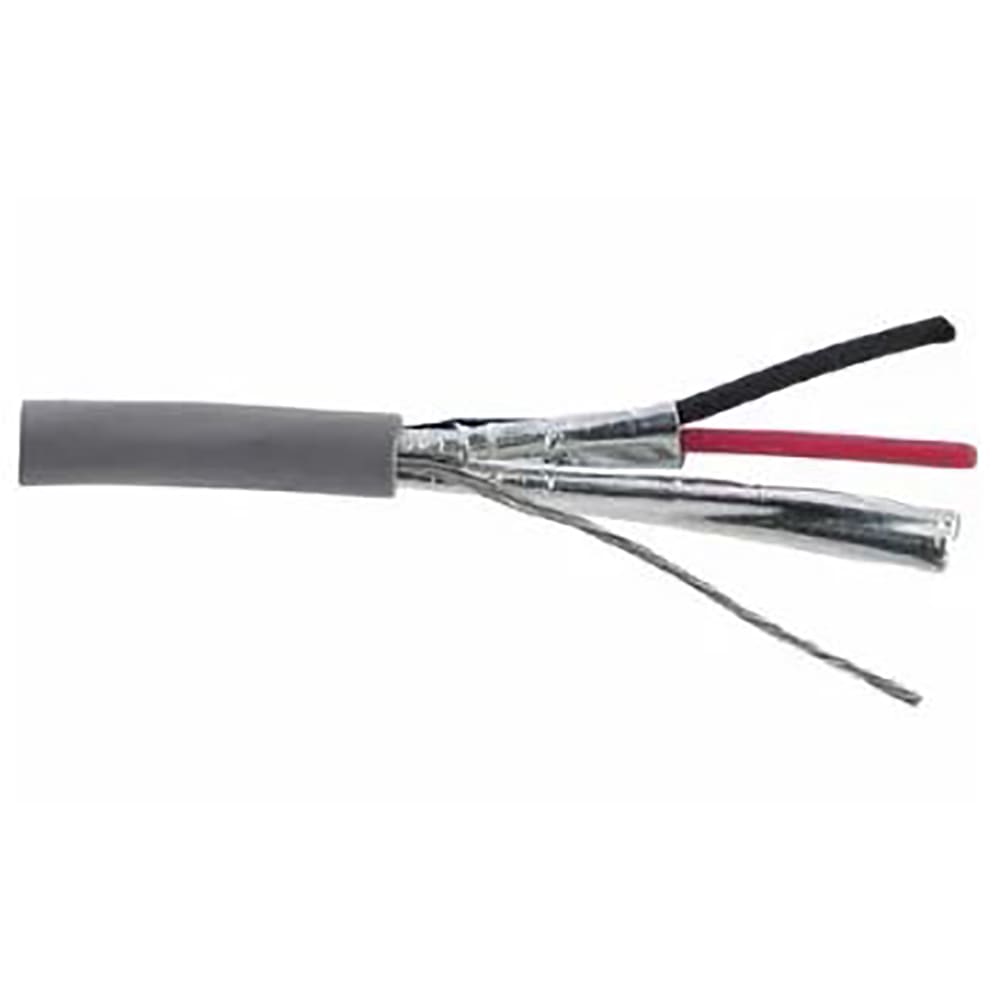

Multiconductor Cable,EcoCable Mini,2C,26AWG,Slate | Alpha Wire 78012 SL005
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 78012 SL005 by Alpha and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 78012 SL005
| Part Name | 78012 SL005 |
| Manufacturer | Alpha Wire |
| Category | Wire & Cable |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Voltage Rating (V) | 300 V |
| Screened/Unscreened | Unscreened |
| Standards Met | CE, CSA, UL |
| Control Cable Type | ECO |
| Screen Type | Unscreened |
| Conductor Material | Tinned Copper |
| Series | Ecogen Ecocable Mini |
| Minimum Bend Radius | 10 x Diameter |
| Fire Behaviour | Halogen Free |
| Drain Wire | No |
| Sheath Colour | Grey |
| Length | 30 (m) |
| Core Strands | 19/0.102 mm |
| American Wire Gauge | 26 AWG |
| Cross Sectional Area | 0.15 mm² |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Cores | 2 |
| Maximum Operating Temperature | +80 (°C) |
| Outer Diameter | 2.59 (mm) |
| Insulation Material | MPPE |
| Sheath Material | mPPE |
