78171-0004

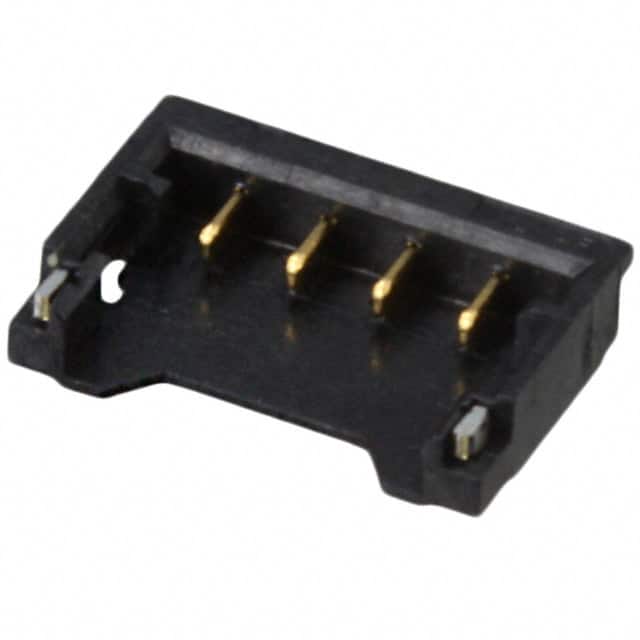

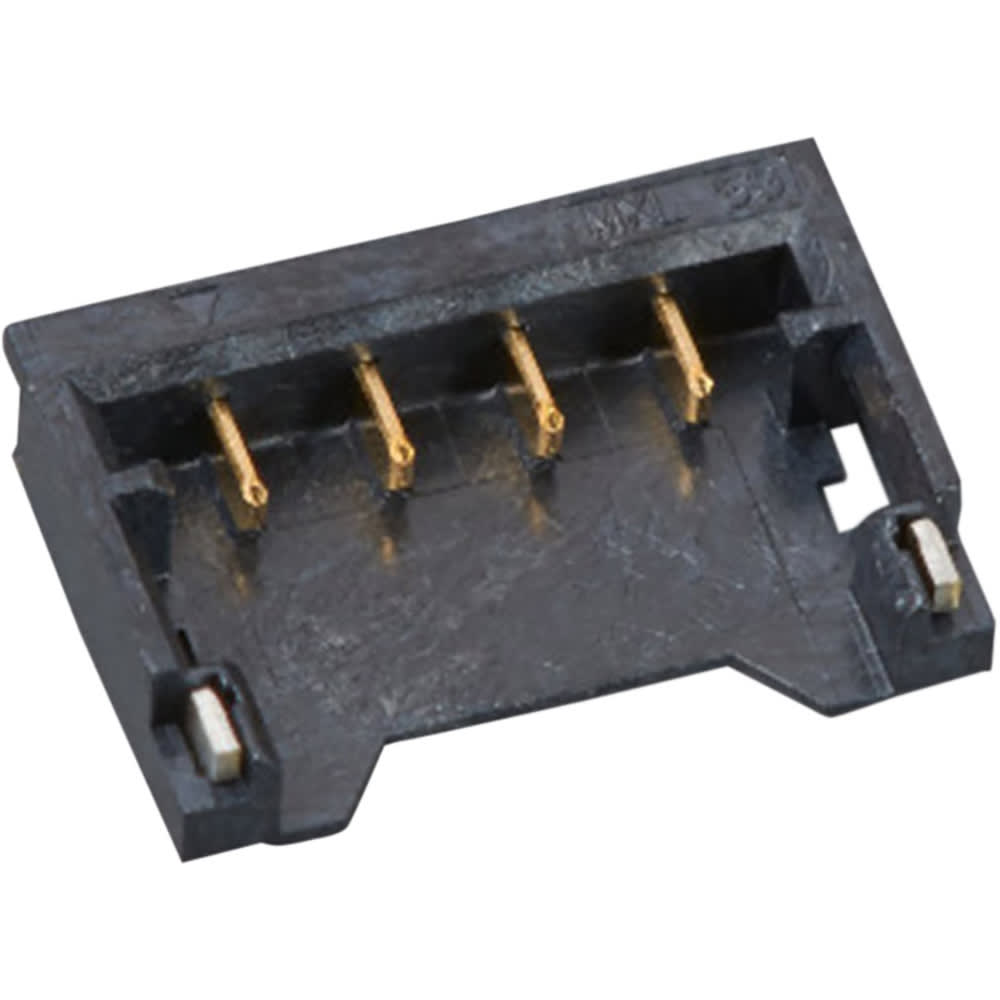

Pico-Ezmate SMT PCB header, 4w | Molex Incorporated 78171-0004
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 78171-0004 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

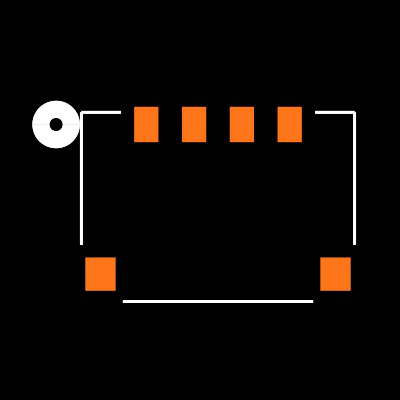

Footprint
No web preview
This Footprint is Available for

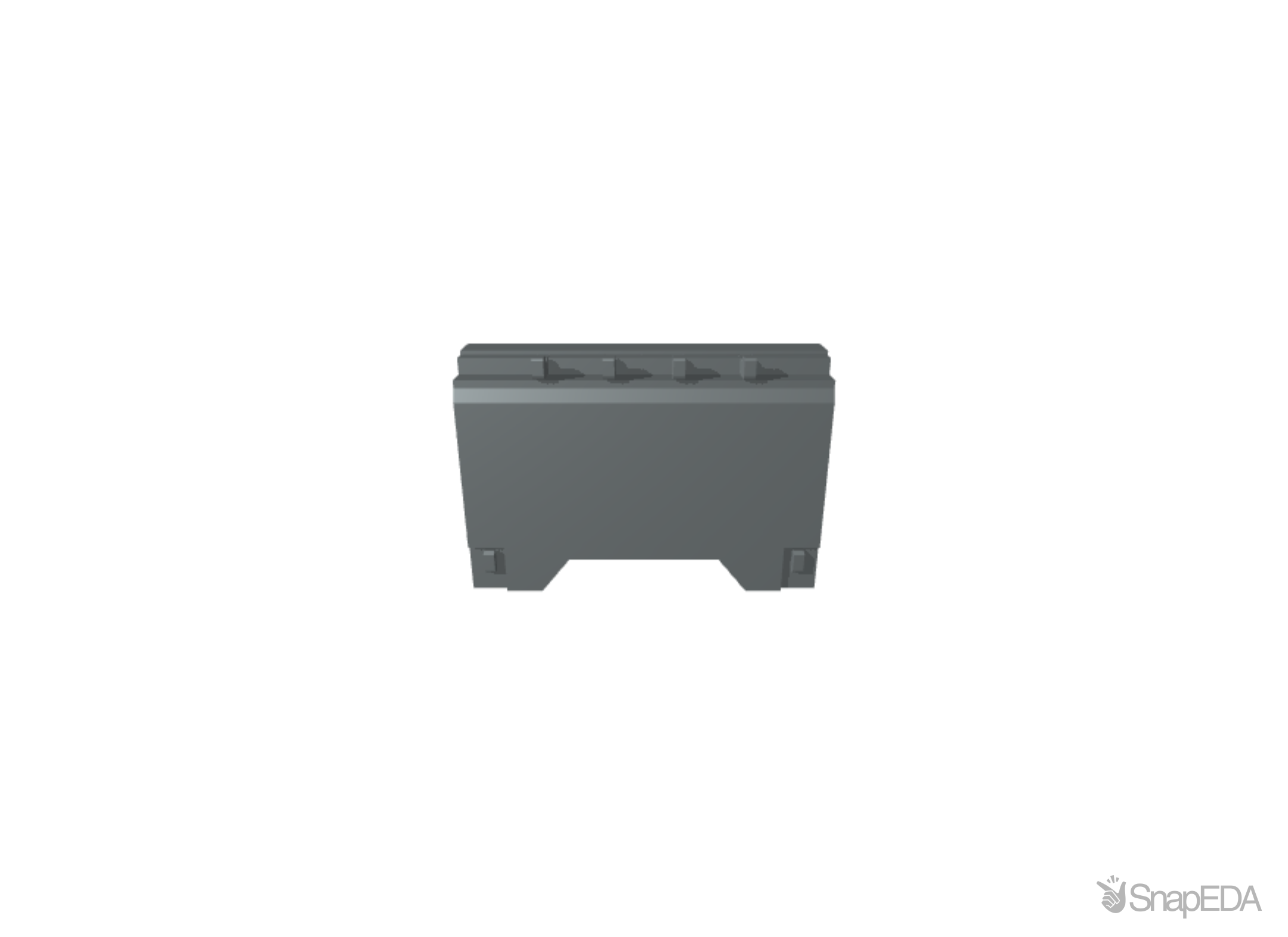

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 78171-0004
| Part Name | 78171-0004 |
| Manufacturer | Molex |
| Category | Connectors |
| Design Resource | https://www.molex.com/molex/custom-cable-creator/snapeda |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Copper Alloy |
| Current Rating (A) | 1.5 (A) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50.0 V |
| Series | Pico-Ezmate |
| Body Orientation | Straight |
| Pitch | 1.2 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 4 |
| Series Number | 78171 |
Inventory for the 78171-0004 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
74,425
|
|
Visit Site | |
|
★ Featured
|
29,500
|
3,065 x $0.10
|
Visit Site | |
| Avnet America |
4,500
|
|
Visit Site | |
| Chip One Stop |
170,255
|
|
Visit Site | |
| Compona AG |
|
36,000 x $0.26
|
Visit Site | |
| Conrad |
4,458
|
|
Visit Site | |
| Farnell UK |
177,049
|
|
Visit Site | |
| Heilind Americas |
23,625
|
|
Visit Site | |
| Interstate Connecting Components |
7,875
|
|
Visit Site | |
| Newark |
5
|
|
Visit Site | |
| Onlinecomponents |
148,542
|
|
Visit Site | |
| Powell Electronics |
129,835
|
|
Visit Site | |
| RS Americas |
4,495
|
|
Visit Site | |
| Rutronik |
22,500
|
|
Visit Site | |
| Sager |
|
36,000 x $0.20
|
Visit Site | |
| TTI Americas |
27,000
|
|
Visit Site | |
| Verical |
72,000
|
|
Visit Site | |
| element14 Singapore |
4,612
|
|
Visit Site |
No issues have been reported for the 78171-0004
If you experienced any issues with the symbol or footprint, please report it.
