7820-0000PR

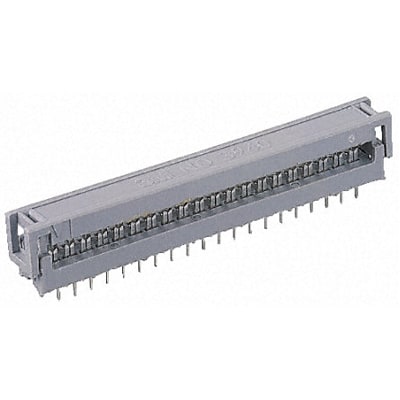

Right Angle Cable Mount IDC Connector Plug, 20 Way, 2 Row, 2.54mm Pitch | 3M 7820-0000PR
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 7820-0000PR by 3M and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

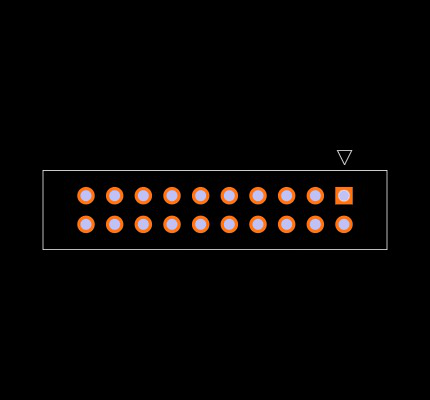

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 7820-0000PR
| Part Name | 7820-0000PR |
| Manufacturer | 3M |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1 (A) |
| Contact Plating | Gold over Nickel |
| Mounting Type | Cable Mount |
| Gender | Male |
| Body Orientation | Right Angle |
| Pitch | 2.54 (mm) |
| Termination Method | IDC |
| Housing Material | PET |
| Number Of Rows | 2 |
| Minimum Operating Temperature | -55.0 (°C) |
| Series | 78XX |
| Number Of Contacts | 20 |
| Maximum Operating Temperature | 105.0 (°C) |
| Contact Material | Copper |
No issues have been reported for the 7820-0000PR
If you experienced any issues with the symbol or footprint, please report it.
