78646-3001

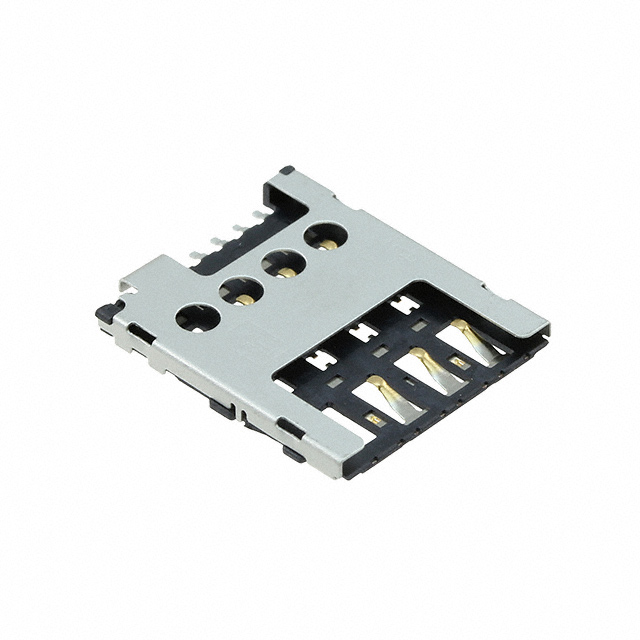

Horizontal Surface Mount Micro SIM Card Connector, with Push In Termination | Molex Incorporated 78646-3001
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 78646-3001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 78646-3001
| Part Name | 78646-3001 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Copper Alloy |
| Dimensions | 15.45 x 13.05 x 1.45 (mm) |
| Mounting Type | Surface Mount |
| Card Type | Micro SIM |
| Gender | Female |
| Body Orientation | Straight |
| Pitch | 1.27 (mm) |
| Length | 15.45 (mm) |
| Housing Material | Liquid Crystal Polymer |
| Width | 13.05 (mm) |
| Depth | 1.45 (mm) |
| Number Of Rows | 1 |
| Insertion/Removal Method | Push/Pull |
| Minimum Operating Temperature | -30 (°C) |
| Termination Method | Push In |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 6 |
| Maximum Operating Temperature | +85 (°C) |
| Series Number | 78646 |
Inventory for the 78646-3001 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
139,480
|
|
Visit Site | |
|
★ Featured
|
4,339
|
|
Visit Site | |
|
★ Featured
|
18,880
|
775 x $0.39
|
Visit Site | |
| Onlinecomponents |
16,500
|
|
Visit Site | |
| RS Americas |
5
|
|
Visit Site | |
| Verical |
1,500
|
1,500 x $0.70
|
Visit Site |
No issues have been reported for the 78646-3001
If you experienced any issues with the symbol or footprint, please report it.
