78723-1001

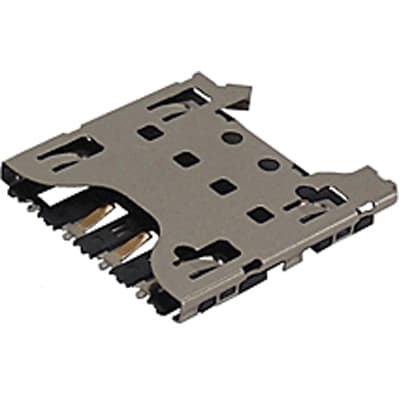

Right Angle Surface Mount Memory & SIM Card Connector, with Solder Termination | Molex Incorporated 78723-1001
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 78723-1001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

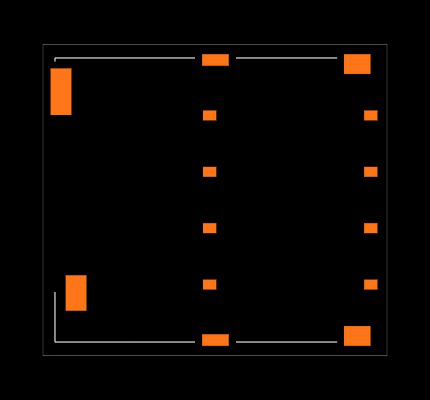

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 78723-1001
| Part Name | 78723-1001 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Copper Alloy |
| Dimensions | 12.8 x 1.35 x 14.42 (mm) |
| Mounting Type | Surface Mount |
| Card Type | Micro SIM |
| Gender | Female |
| Body Orientation | Right Angle |
| Pitch | 2.54 (mm) |
| Length | 12.8 (mm) |
| Housing Material | Liquid Crystal Polymer |
| Width | 1.35 (mm) |
| Depth | 14.42 (mm) |
| Number Of Rows | 1 |
| Insertion/Removal Method | Push/Pull |
| Minimum Operating Temperature | -40 (°C) |
| Termination Method | Solder |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 6 |
| Maximum Operating Temperature | +85 (°C) |
| Series Number | 78723 |
Inventory for the 78723-1001 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,285
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Compona AG |
|
3,600 x $0.87
|
Visit Site | |
| Conrad |
30,900
|
|
Visit Site | |
| Farnell UK |
28,200
|
|
Visit Site | |
| Heilind Americas |
8,100
|
|
Visit Site | |
| Interstate Connecting Components |
2,700
|
|
Visit Site | |
| Newark |
29,700
|
|
Visit Site | |
| Onlinecomponents |
19,140
|
|
Visit Site | |
| Powell Electronics |
19,602
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TTI Americas |
2,400
|
|
Visit Site | |
| Verical |
16,500
|
|
Visit Site | |
| element14 Singapore |
2,432
|
|
Visit Site |
No issues have been reported for the 78723-1001
