78730-1002
0.85MM DDR4 DIMM Vt SMT 0.76AuLF 288CKT | Molex Incorporated 78730-1002
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 78730-1002 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

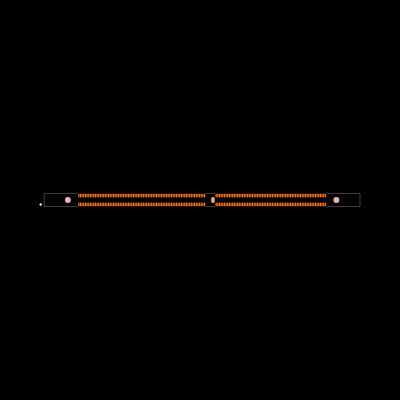

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 78730-1002
| Part Name | 78730-1002 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 0.85 (mm) |
| Contact Material | Copper Alloy |
| Current Rating (A) | 750.0 (mA) |
| Minimum Operating Temperature | -55 (°C) |
| Mounting Type | Surface Mount |
| Sdram Type | DDR4 |
| Gender | Female |
| Latching | Yes |
| Maximum Contact Resistance | 10.0 (mΩ) |
| Housing Material | Nylon |
| Row Spacing | 0.85 (mm) |
| Memory Socket Type | DIMM Socket |
| Contact Plating | Gold over Nickel, Tin over Nickel |
| Termination Method | Solder |
| Voltage Rating (V) | 29.0 Vrms |
| Number Of Contacts | 288 |
| Maximum Operating Temperature | +85 (°C) |
| Body Orientation | Straight |
| Series Number | 78730 |
