787653-3

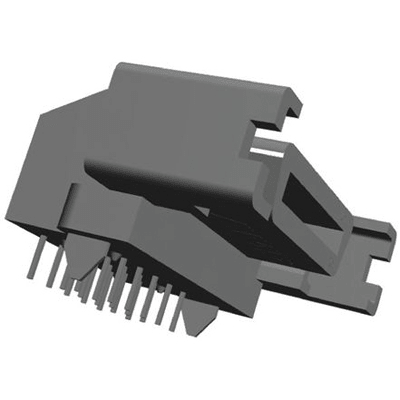

Female 20 Way Right Angle Through Hole SCSI Connector 2.54mm Pitch, Solder | TE Connectivity 787653-3
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 787653-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 787653-3
| Part Name | 787653-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarized |
| Centerline (Pitch) | 1.27 |
| Circuit Application | Signal |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Insulation Resistance | 2 |
| Operating Voltage (V) | 30 |
| PCB Mount Alignment Type | Positioning Bosses |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Retention Leg |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .76 |
| Termination Post & Tail Length | .1 |
| Contact Current Rating (Max) (A) | 2 |
| TE Internal Number | 787653-3 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Connector Height | .38 |
| Number of Rows | 2 |
| Board-to-Board Configuration | Right Angle |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105 |
| Connector Profile | Standard |
| Packaging Method | Tray |
| Packaging Quantity | 100 |
| Contact Type | Socket |
| PCB Retention Feature Plating Material | Tin over Nickel |
| Number of Positions | 20 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Contact Base Material | Phosphor Bronze |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .76 |
| PCB マウント アラインメント タイプ | Positioning Bosses |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| High Temperature Compatible | Yes |
| PCB Retention Feature Material | Brass |
| Stackable | No |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the 787653-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| TE Connectivity |
119
|
|
Visit Site |
No issues have been reported for the 787653-3
If you experienced any issues with this part, please report it.
