794188-1
Hsg, Conn,Interconnect System,Panel Plug,4 Cont,MATE-N-LOK Series,Straight | TE Connectivity 794188-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 794188-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

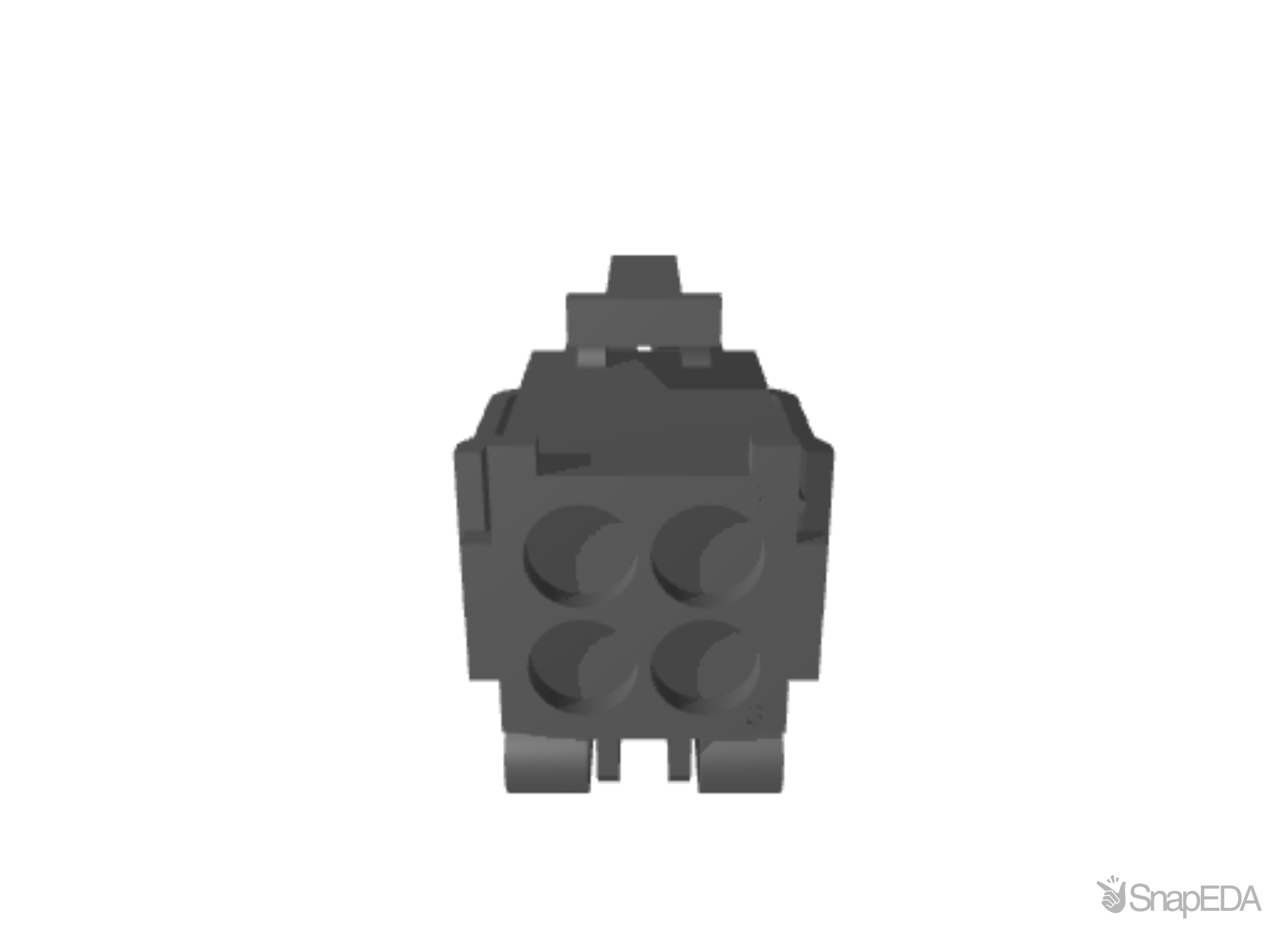

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 794188-1
| Part Name | 794188-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .162 |
| Operating Temperature Range | -55 – 105 |
| Circuit Application | Power & Signal |
| Packaging Method | Bag |
| Housing Type | Plug |
| Packaging Quantity | 600 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Nylon |
| Row-to-Row Spacing | .162 |
| Sealable | No |
| Agency/Standard | UL |
| Operating Voltage (V) | 600 |
| For Use With | Mini-Universal MATE-N-LOK 2 Cap Housing/PC Board Pin Headers Header |
| UL Rating | Recognized |
| Connector & Contact Terminates To | Wire & Cable |
| Panel Mount Feature | Without |
| Connector System | Wire-to-Wire |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Contact Retention | Without |
| Assembly Integration Feature | Without |
| TE Internal Number | 794188-1 |
| Number of Positions | 4 |
| Termination Method to Wire & Cable | Crimp |
| Number of Rows | 2 |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Product Type | Housing |
| Multiple Contact Types | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 794188-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,463
|
|
Visit Site | |
|
★ Featured
|
18,579
|
|
Visit Site | |
| Arrow Electronics |
64
|
|
Visit Site | |
| Onlinecomponents |
6,748
|
|
Visit Site | |
| Verical |
64
|
10 x $0.71
|
Visit Site |
No issues have been reported for the 794188-1
