796329-1

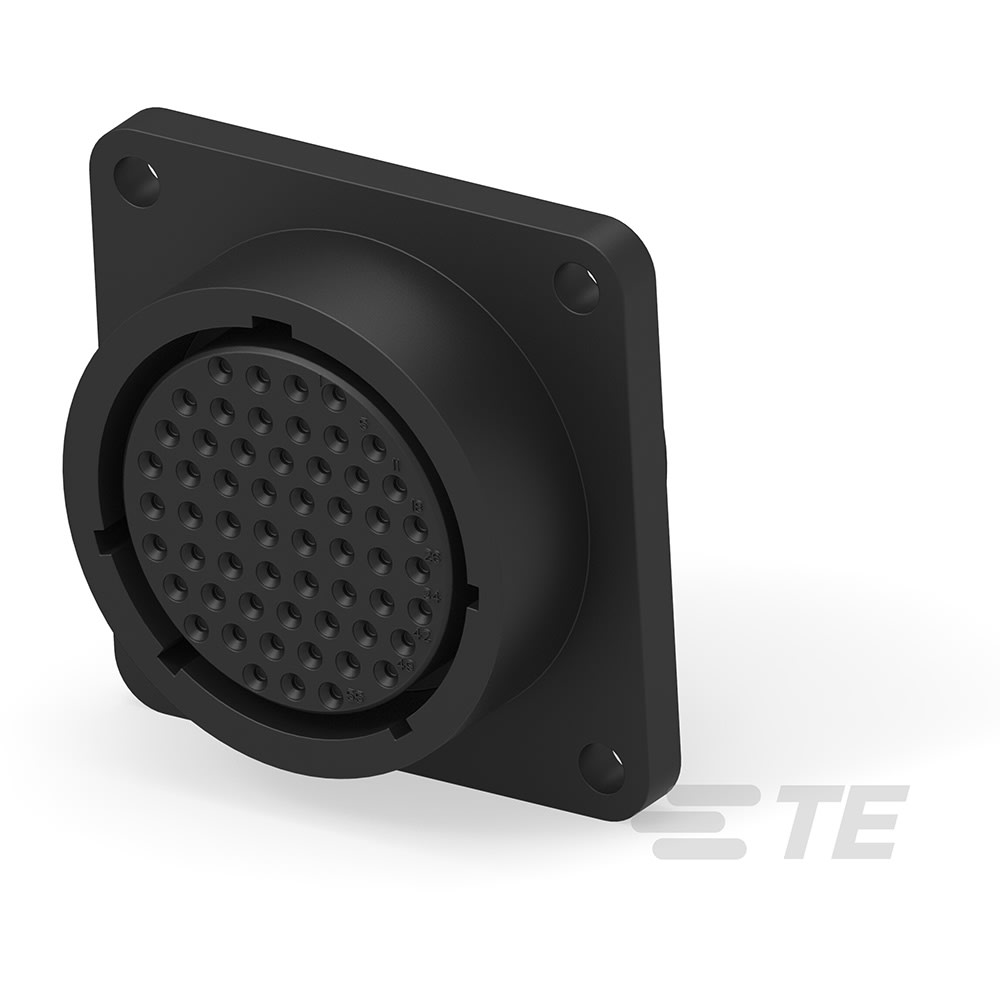

Circular Connector, 23-57 CPC POSTD SKT RECPT | TE Connectivity 796329-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 796329-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

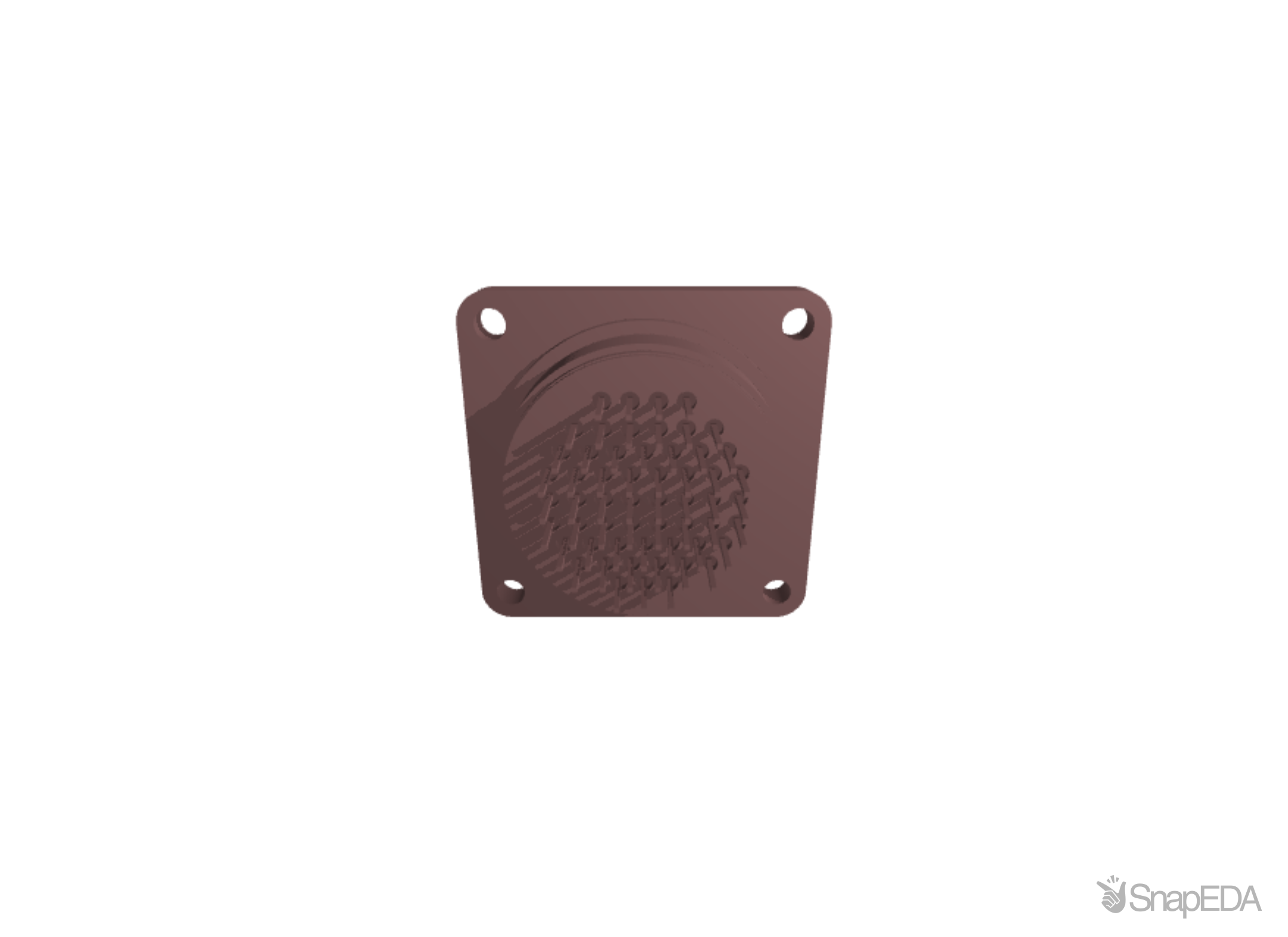

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 796329-1
| Part Name | 796329-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Keyed |
| Mating Retention Type | Threaded Coupling |
| Mating Retention | With |
| Number of Power Positions | 0 |
| Shell Size | 23 |
| Number of Positions | 57 |
| TE Internal Number | 796329-1 |
| Connector System | Wire-to-Panel |
| Housing Type | Receptacle |
| Number of Signal Positions | 57 |
| Product Type | Connector Assembly |
| Connector Mounting Type | Panel |
| Operating Temperature Range | -40 – 105 |
| Packaging Quantity | 12 |
| Assembly Length | 1.169 |
| Mating Alignment | With |
| Panel Mount Feature Type | Flange with Mounting Holes |
| Fluid Resistance | None |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Sealable | No |
| Reverse Gender | Reverse |
| Shell Type | All Plastic |
| UL Flammability Rating | UL 94V-0 |
| Panel Mount Feature | With |
| Contact Type | Socket |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 796329-1 by TE Connectivity AMP Connectors from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
56
|
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Onlinecomponents |
12
|
|
Visit Site | |
| Verical |
56
|
|
Visit Site |
No issues have been reported for the 796329-1
