796638-3
SnapVerified
3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle - Through Hole
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 796638-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

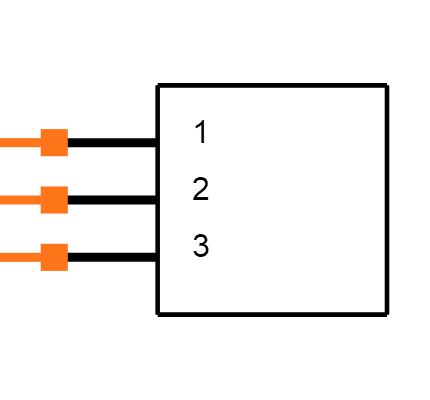

Symbol
No web preview
This Symbol is Available for

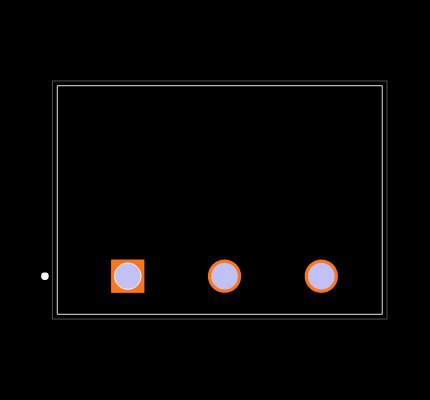

Footprint
No web preview
This Footprint is Available for

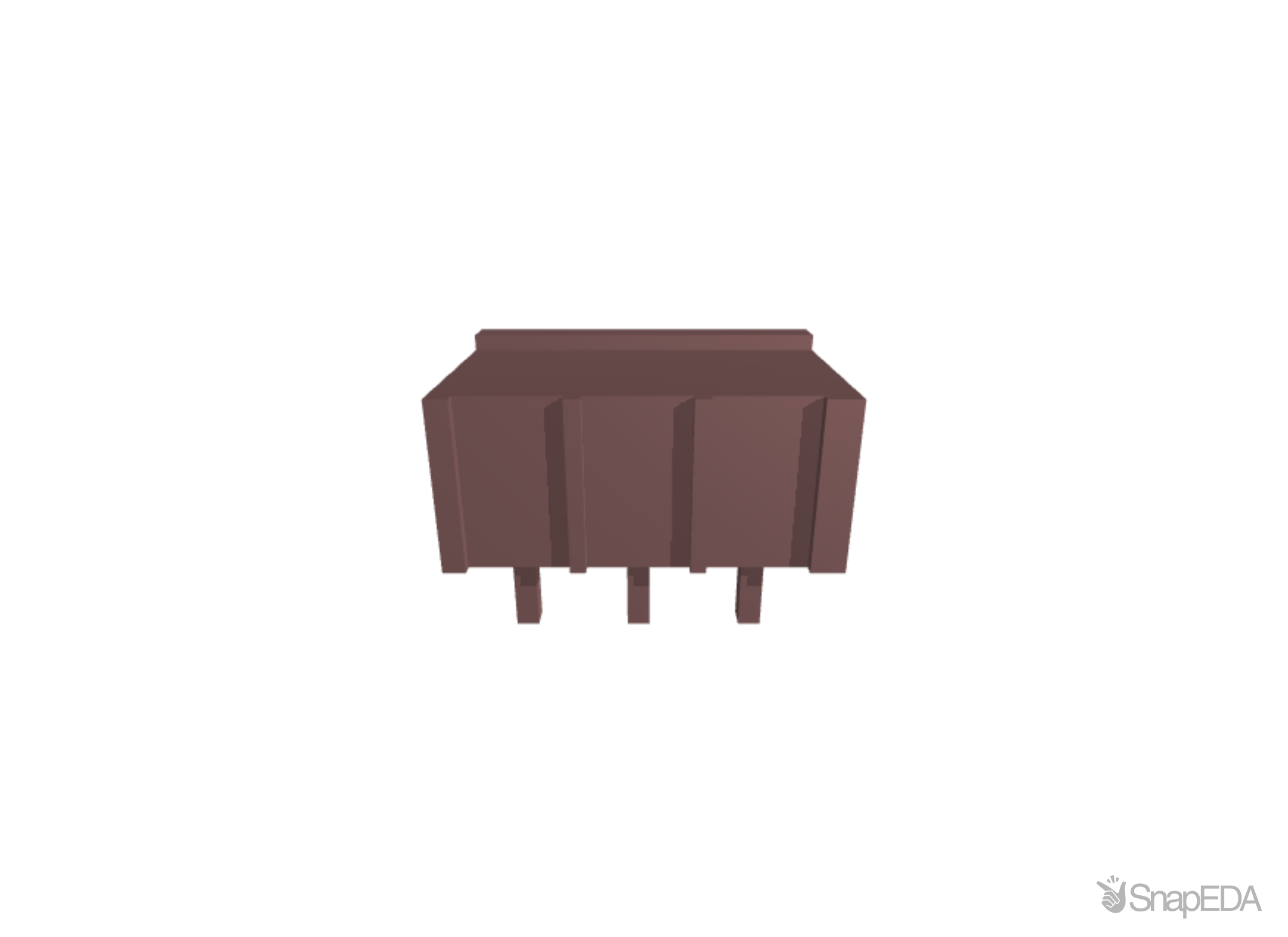

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 796638-3
| Part Name | 796638-3 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 5.08 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Flange | Without |
| Contact Mount | Through Hole |
| Connector Style | Header |
| Connector & Contact Terminates To | Printed Circuit Board |
| Current Rating (Max) (A) | 15 |
| TE Internal Number | 796638-3 |
| PCB Tail Length | 3.5 |
| Number of Positions | 3 |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Green |
| Header Type | Shrouded |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 to 105 |
| Packaging Method | Box |
| Packaging Quantity | 200 |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mounting Angle | Right Angle |
| Threaded Flange | Without |
| Interlock | Without |
| Block Type | PCB Mount |
| Contact Current Rating (Max) (A) | 15 |
| Contact Mating Area Plating Thickness | 6 7 |
| Voltage (V) | 300 |
| Wire Size | 30 12 |
| Closed End | With |
| Mating Angle | 90 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 5.08 (mm) |
| Current Rating (A) | 15.0 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 300.0 V |
| Series | Buchanan |
| Body Orientation | Right Angle |
| Pluggable Terminal Block Type | Header |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 3 |
| Contact Material | Phosphor Bronze |
Inventory for the 796638-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,553
|
|
Visit Site | |
|
★ Featured
|
4,083
|
|
Visit Site | |
| Avnet America |
6,400
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Farnell UK |
2,200
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
1
|
|
Visit Site | |
| Onlinecomponents |
4,953
|
|
Visit Site | |
| Powell Electronics |
3,269
|
|
Visit Site | |
| RS UK |
|
5 x $3.13
|
Visit Site | |
| Sager |
|
3,200 x $0.65
|
Visit Site | |
| TME |
188
|
|
Visit Site | |
| TTI Europe |
3,000
|
|
Visit Site | |
| Verical |
188
|
63 x $1.29
|
Visit Site | |
| element14 Singapore |
846
|
|
Visit Site |
No issues have been reported for the 796638-3
