796641-9
9 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) - 180° Free Hanging (In-Line)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 796641-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

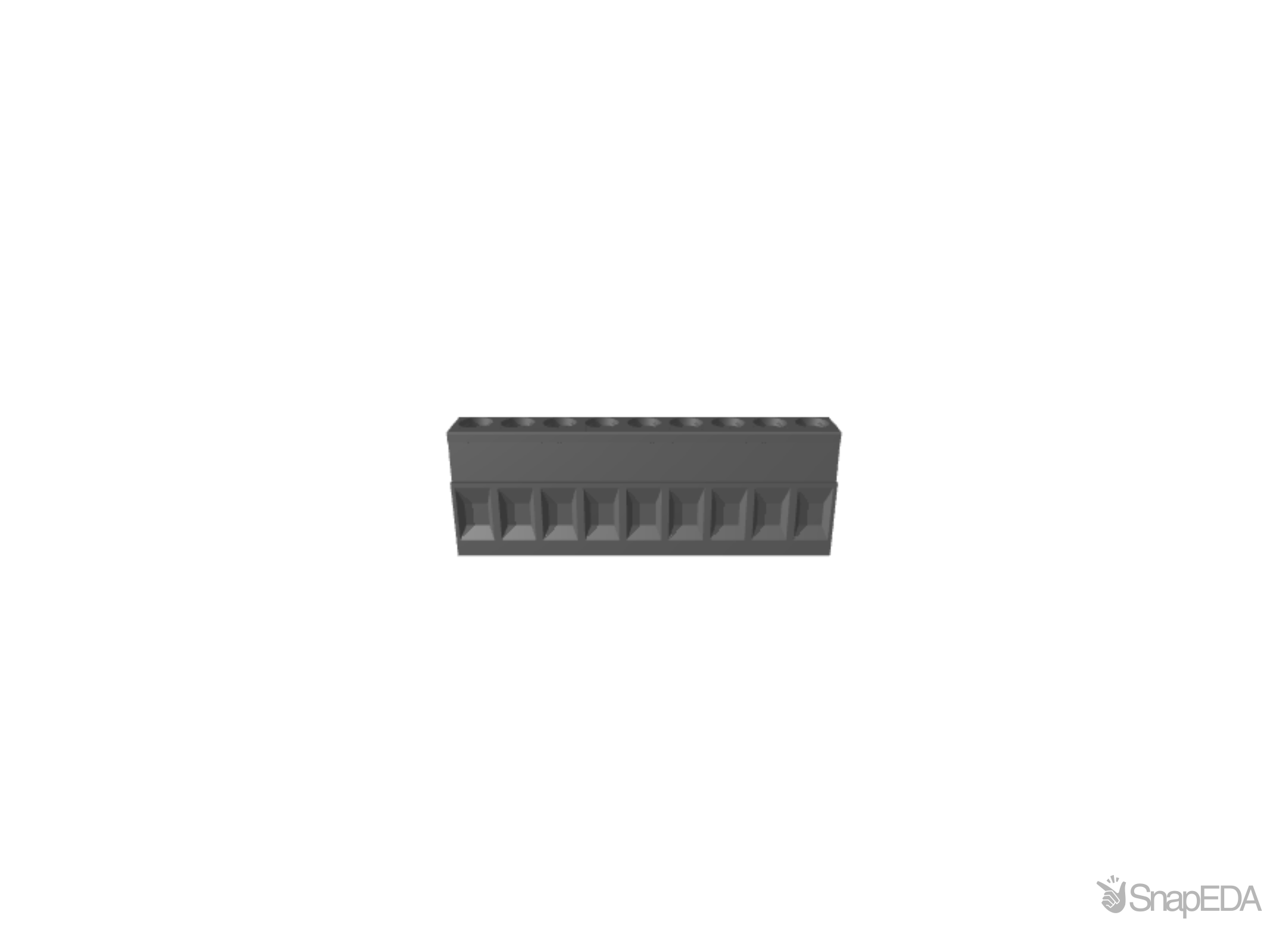

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 796641-9
| Part Name | 796641-9 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 5 |
| Circuit Application | Power & Signal |
| Housing Material | PA 66 |
| Screw Plating Material | Nickel |
| Screw Flange | Without |
| Screw Size | M3 |
| Connector Style | Plug |
| Connector & Contact Terminates To | Wire & Cable |
| Stacking Configuration | Side Stackable |
| Current Rating (Max) (A) | 15 |
| Screw Material | Brass |
| TE Internal Number | 796641-9 |
| Number of Positions | 9 |
| Connector System | Wire-to-Board |
| Screwless Terminal Block | No |
| Number of Rows | 1 |
| Housing Color | Black |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 to 221 |
| Packaging Method | Box |
| Packaging Quantity | 100 |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mounting Angle | Right Angle |
| Interlock | Without |
| Wire Entry Angle | Side |
| Contact Current Rating (Max) (A) | 15 |
| Block Type | Stacking Plug |
| Voltage (V) | 300 |
| Wire Size | 30 12 |
| Wire Protection | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 796641-9 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
400 x $5.80
|
Visit Site |
No issues have been reported for the 796641-9
If you experienced any issues with this part, please report it.
