7BB-27-4L0

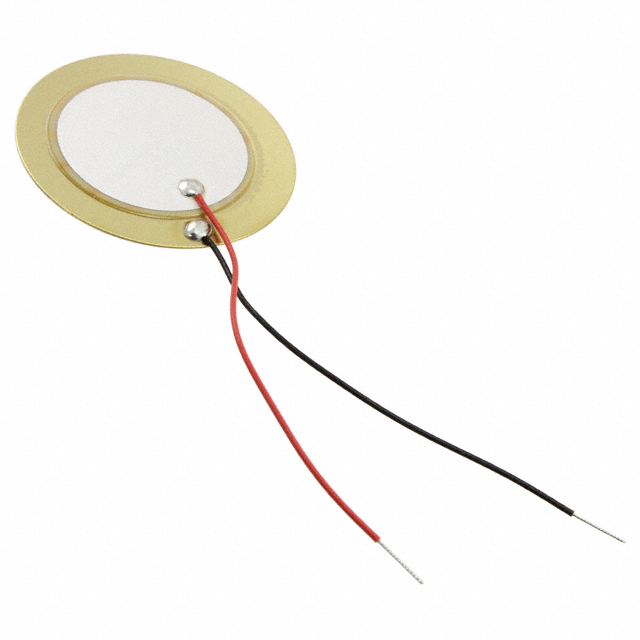

4.6 kHz Standard Buzzer Element - 1.063" Dia (27.00mm) 300 Ohms
Availability: Out of Stock
Package Type: CUSTOM PACKAGE
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 7BB-27-4L0 by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 7BB-27-4L0
| Part Name | 7BB-27-4L0 |
| Manufacturer | Murata |
| Category | Piezo Buzzers |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=7BB-27-4L0 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 27 (mm) |
| Dimensions | 27 (Dia.) x 0.54 (mm) |
| Mounting Type | Lead Wire |
| Capacitance | 20 (nF) |
| Drive Type | External |
| Height | 0.54 (mm) |
| Tone Type | Diaphragm |
| Maximum Frequency | 4.6 (kHz) |
| Minimum Operating Temperature | -10 (°C) |
| Maximum Operating Temperature | +40 (°C) |
