8-1614882-1
SnapVerified
Precision Thin Film Smnt Resistor 0603 Case 360kOhm +/-0.1%.063W +/-25ppm/C
Availability: In Stock
Package Type: 0603
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 8-1614882-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

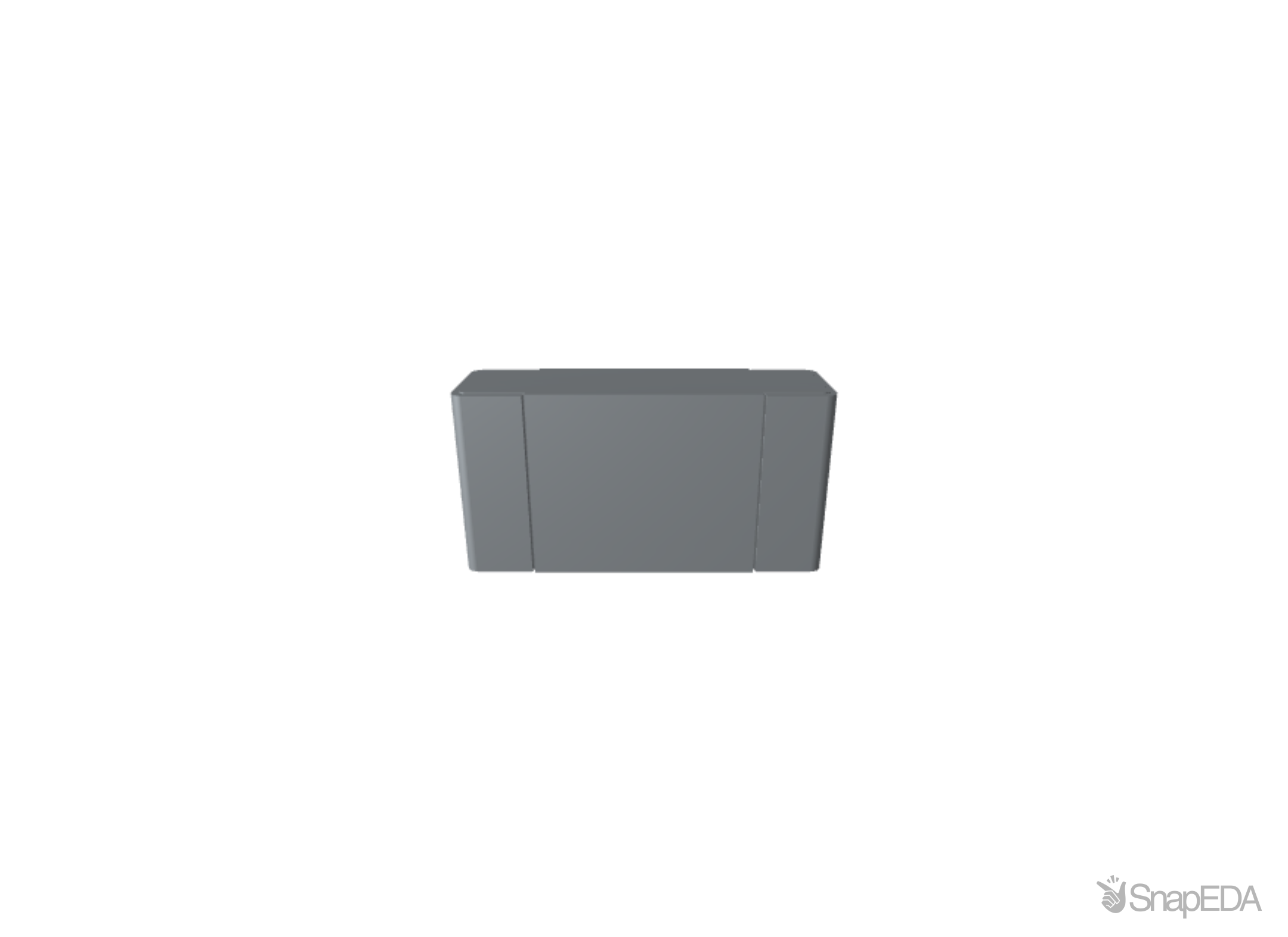

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 8-1614882-1
| Part Name | 8-1614882-1 |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Size Code | 0603 |
| Number of Terminations | 2 |
| Resistor Type | Precision Resistor |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 8-1614882-1 |
| Temperature Coefficient | ±25 |
| Resistance | 360K |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Power Rating | .063 |
| Product Type | Fixed Resistor |
| Tolerance | .1% |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
