8-1734774-3
CONN PCI EXP FEMALE 98POS 0.039
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 8-1734774-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

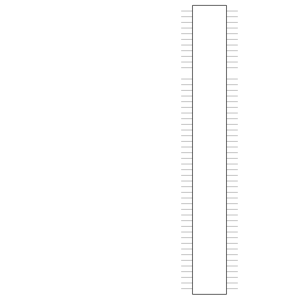

Symbol
No web preview
This Symbol is Available for

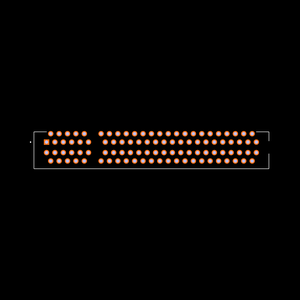

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 8-1734774-3
| Part Name | 8-1734774-3 |
| Manufacturer | TE Connectivity / AMP |
| Current Rating (A) | 1.1 |
| Pick and Place Cover | Without |
| Number of Pylons | 2 |
| Housing Material | PA 46 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 50 |
| Centerline (Pitch) | .039 |
| PCB Mount Orientation | Vertical |
| Pylon Material | Plastic |
| PCB Thickness (Recommended) | .063 |
| Termination Post & Tail Length | .091 |
| Ejector | Without |
| TE Internal Number | 8-1734774-3 |
| Number of Positions | 98 |
| Connector System | Cable-to-Board |
| Solder Tail Contact Plating Thickness | 2.54 |
| Connector Height | .394 |
| Housing Color | White |
| Connector Width | 8.8 |
| Contact Base Material | Phosphor Bronze |
| PCI Generation | II |
| Connector Mounting Type | Board Mount |
| PCB Thickness (Accepted) | 1.57 |
| Connector Length | 56 |
| Bus Type | PCI Express |
| Operating Temperature Range | -40 – 185 |
| Packaging Method | Tray |
| Packaging Quantity | 40 |
| Contact Mating Area Plating Material | Gold |
| Solder Tail Contact Plating Material Finish | Matte |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole |
| Weight | .194 |
| Contact Mating Area Plating Material Thickness | 15 |
| Contact Current Rating (Max) (A) | 1.1 |
| Voltage (V) | 50 |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 8-1734774-3
If you experienced any issues with the symbol or footprint, please report it.
