8-1744056-2

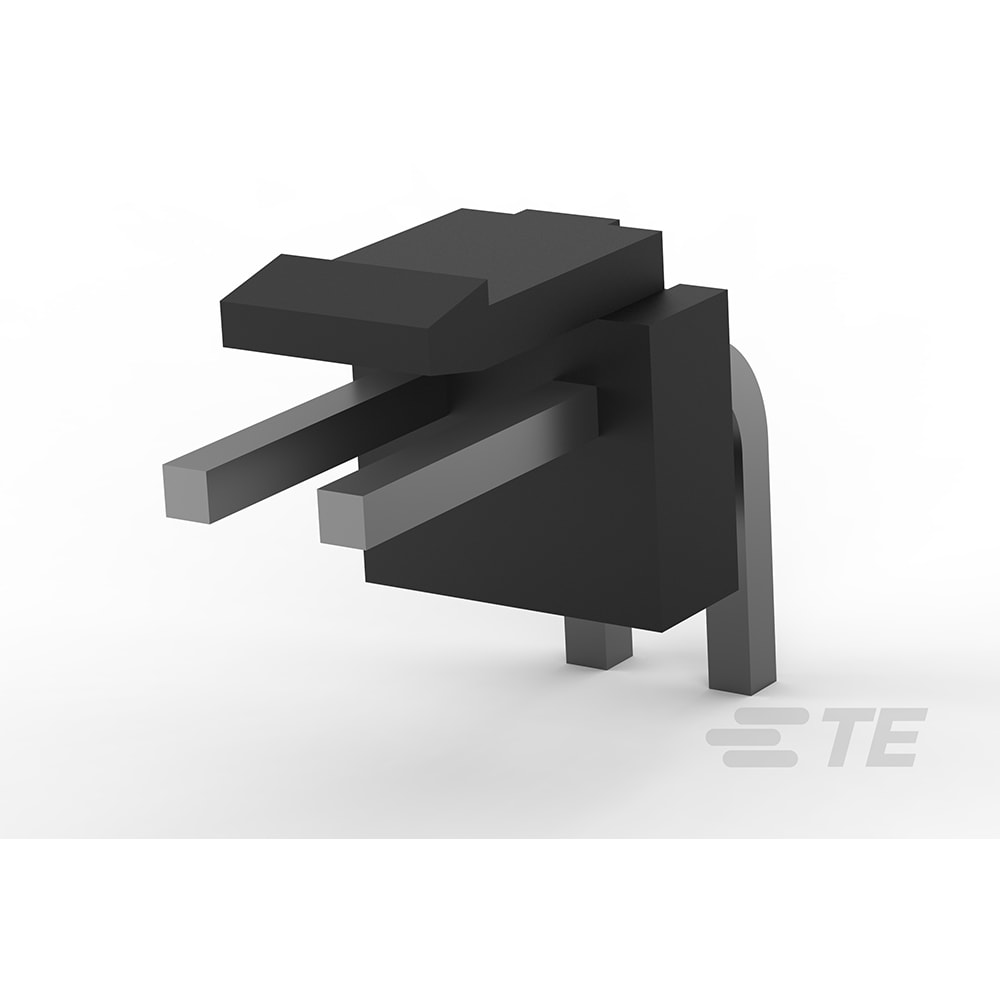

3.96 EP HDR ASSY 2P R/A HT,TAPE | TE Connectivity 8-1744056-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 8-1744056-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 8-1744056-2
| Part Name | 8-1744056-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarizing Tab |
| Centerline (Pitch) | .156 |
| Circuit Application | Power |
| Mating Retention Type | Latch |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Width | 15.68 |
| Number of Power Positions | 2 |
| Operating Voltage (V) | 250 |
| For Use With | Receptacle Assembly |
| Number of Positions | 2 |
| PCB Mount Retention | Without |
| Contact Current Rating (Max) (A) | 8 |
| Mating Post Length | 8.6 |
| TE Internal Number | 8-1744056-2 |
| PCB Mount Orientation | Right Angle |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Housing Color | Black |
| Header Type | Unshrouded |
| Strain Relief | Without |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Operating Temperature Range | -67 – 221 |
| Packaging Method | Bag/Box |
| Housing Type | Plug |
| Packaging Quantity | 250 |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin |
| Length | 47.5 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Brass |
| Contact Retention | Without |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | .3228 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Mating Area Plating Thickness | 3 |
| Product Type | Header |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Sealable | No |
