8-1971800-4
SnapVerified
Conn Shrouded Header HDR 8 POS 2.5mm Solder ST Thru-Hole Bag/Box
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 8-1971800-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

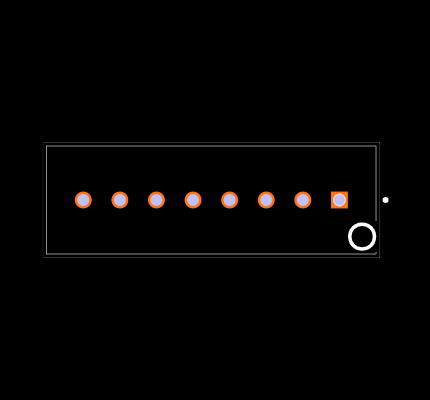

Footprint
No web preview
This Footprint is Available for

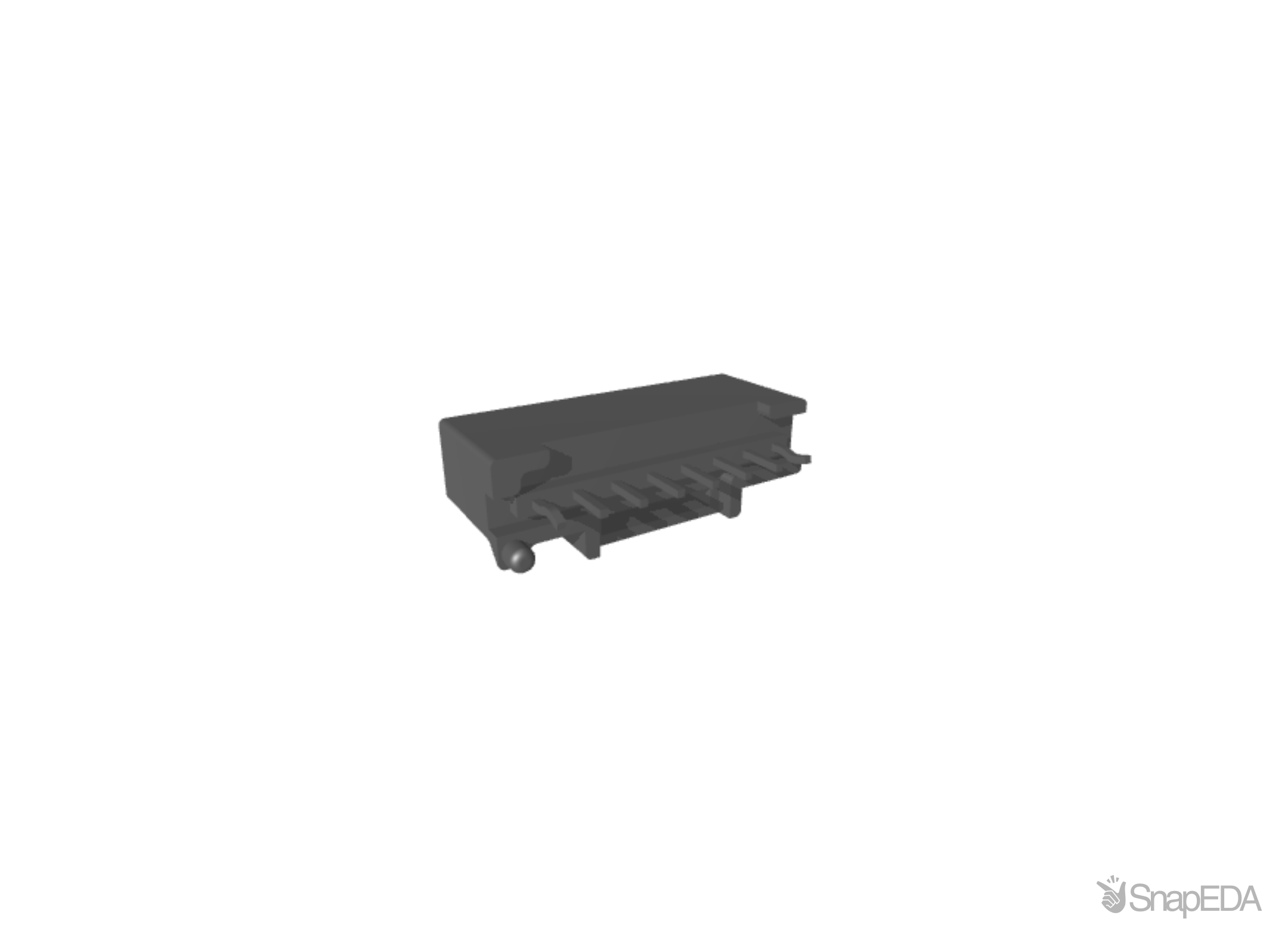

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 8-1971800-4
| Part Name | 8-1971800-4 |
| Manufacturer | TE Connectivity / AMP |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | .098 |
| Contact Underplating Material Thickness | 49.21 |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Nylon |
| Operating Voltage (V) | 50 |
| PCB Mount Alignment Type | Locating Posts |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Kinked |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .063 – .079 |
| Termination Post & Tail Length | .118 |
| PCB Connector Assembly Type | PCB Mount Header |
| TE Internal Number | 8-1971800-4 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | .29 |
| Number of Rows | 1 |
| Housing Color | Yellow |
| Header Type | Shrouded |
| Contact Underplating Material | Nickel |
| Contact Base Material | Brass |
| Contact Shape | Square |
| Termination Method to Wire & Cable | Solder |
| Contact Transmits (Typical) | Signal (Data) |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector Length | .88 |
| Operating Temperature Range | -30 – 105 |
| Packaging Method | Bag/Box |
| Packaging Quantity | 600 |
| Contact Layout | Inline |
| Sealable | No |
| Number of Positions | 8 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mating Tab Width | .5 |
| Mating Retention | With |
| 端子の下地めっきの材料 | Nickel |
| Glow Wire Rating | Glow Wire |
| PCB Contact Termination Area Plating Material Thickness | 78.74 |
| PCB Mount Alignment | With |
| Mating Retention Type | Latch |
| Contact Mating Area Plating Material Thickness | 2 |
| PCB マウント アラインメント タイプ | Locating Posts |
| Contact Current Rating (Max) (A) | 3 |
| Contact Retention | Without |
| Contact Type | Tab |
| PCB Contact Termination Area Plating Material | Tin |
| Keying Code | D |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3.0 (A) |
| Contact Plating | Tin |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 50.0 V |
| Series | Grace Inertia |
| Body Orientation | Straight |
| Termination Method | Solder |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Shrouded Unshrouded | Shrouded |
| Pitch | 2.5 (mm) |
| Number Of Contacts | 8 |
| Contact Material | Copper Alloy |
No issues have been reported for the 8-1971800-4
