80PK-22

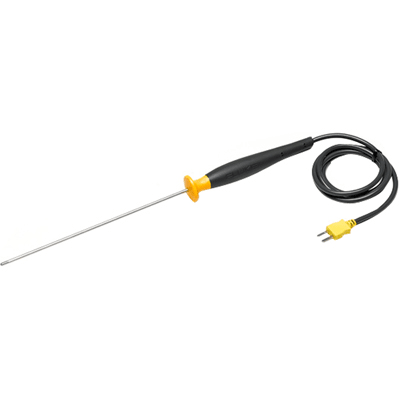

Probe Temperature -40 to 1090 ° C, SureGrip Series | Fluke 80PK-22
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 80PK-22 by Fluke and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 80PK-22
| Part Name | 80PK-22 |
| Manufacturer | Fluke |
| Category | Test & Measurement |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Probe Type | General |
| Best Accuracy | ±2.2 °C |
| Sensor Type | K |
| Probe Diameter | 3.2 (mm) |
| Connector Type | Miniature Plug |
| Model Number | 80PK-22 |
| Probe Length | 213 (mm) |
| Maximum Temperature Measurement | +1090 °C |
| Cable Length | 1 (m) |
Inventory for the 80PK-22 by Fluke from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
10
|
1 x $154.99
|
Visit Site | |
| Carlton-Bates |
|
1 x $159.12
|
Visit Site | |
| Newark |
3
|
1 x $154.99
|
Visit Site | |
| RS Americas |
7
|
1 x $137.10
|
Visit Site | |
| RS UK |
97
|
1 x $247.71
|
Visit Site | |
| TME |
3
|
1 x $190.18
|
Visit Site |
No issues have been reported for the 80PK-22
