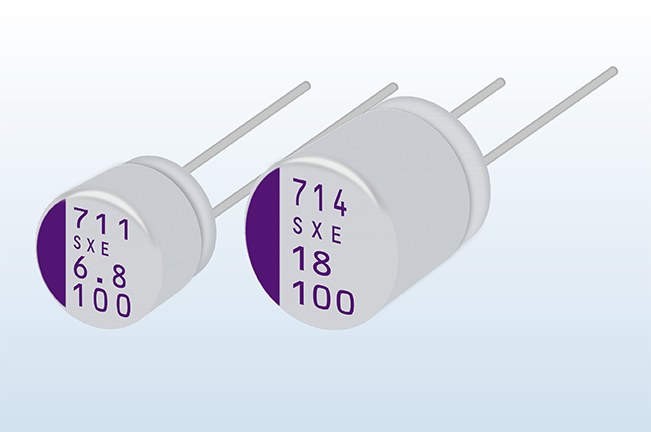

80SXE47MX

Name: 80SXE47MX
Brand: Panasonic

Series/Type: SXE, Body Type: Radial lead type, Rated voltage (V): 80, Capacitance (µF): 47, Tolerance on Capacitance (%): +/-20, Category Temperature Range (°C): -55 to 125, Endurance (h): 1000, Endurance@Temp.: 1000@125°C, Rated Ripple Current (mArms): 2490, Rated Ripple Current (temp.) (°C): T≦105, Rated Ripple Current (freq.) (kHz): 100, ESR (mΩ): 35, ESR Frequency (kHz): 100, Leakage Current [Max.] (µA): 188, Dissipation Factor [Max.]: 0.12, Diameter (mm): 8, Body Length (mm): 12, Lead (terminal) Pitch (mm): 3.5, Size Code: E12

Availability: In Stock

Package Type: RADIAL-2

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 80SXE47MX by Panasonic and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

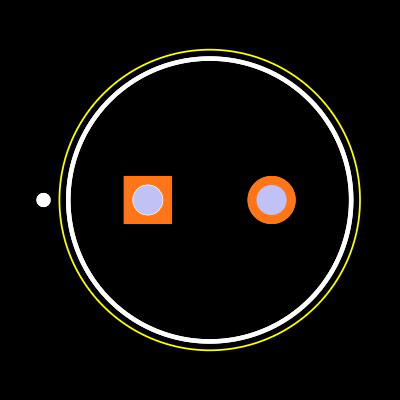

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 80SXE47MX

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 80SXE47MX

Part Name	80SXE47MX
Manufacturer	Panasonic
RoHS	True
Life Cycle Status	New Product
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

Inventory for the 80SXE47MX by Panasonic from major distributors.

Supplier	Quantity
★ Featured	200	Visit Site
Farnell UK	383	Visit Site
Newark	383	Visit Site
RS UK	400	Visit Site
element14 Singapore	383	Visit Site
