826634-3
SnapVerified
PCB Header, 2x3, Right Angle, Gold, AMPMODU Mod II Series | TE Connectivity 826634-3
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 826634-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

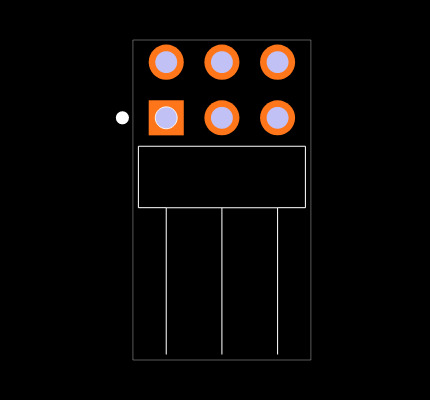

Footprint
No web preview
This Footprint is Available for

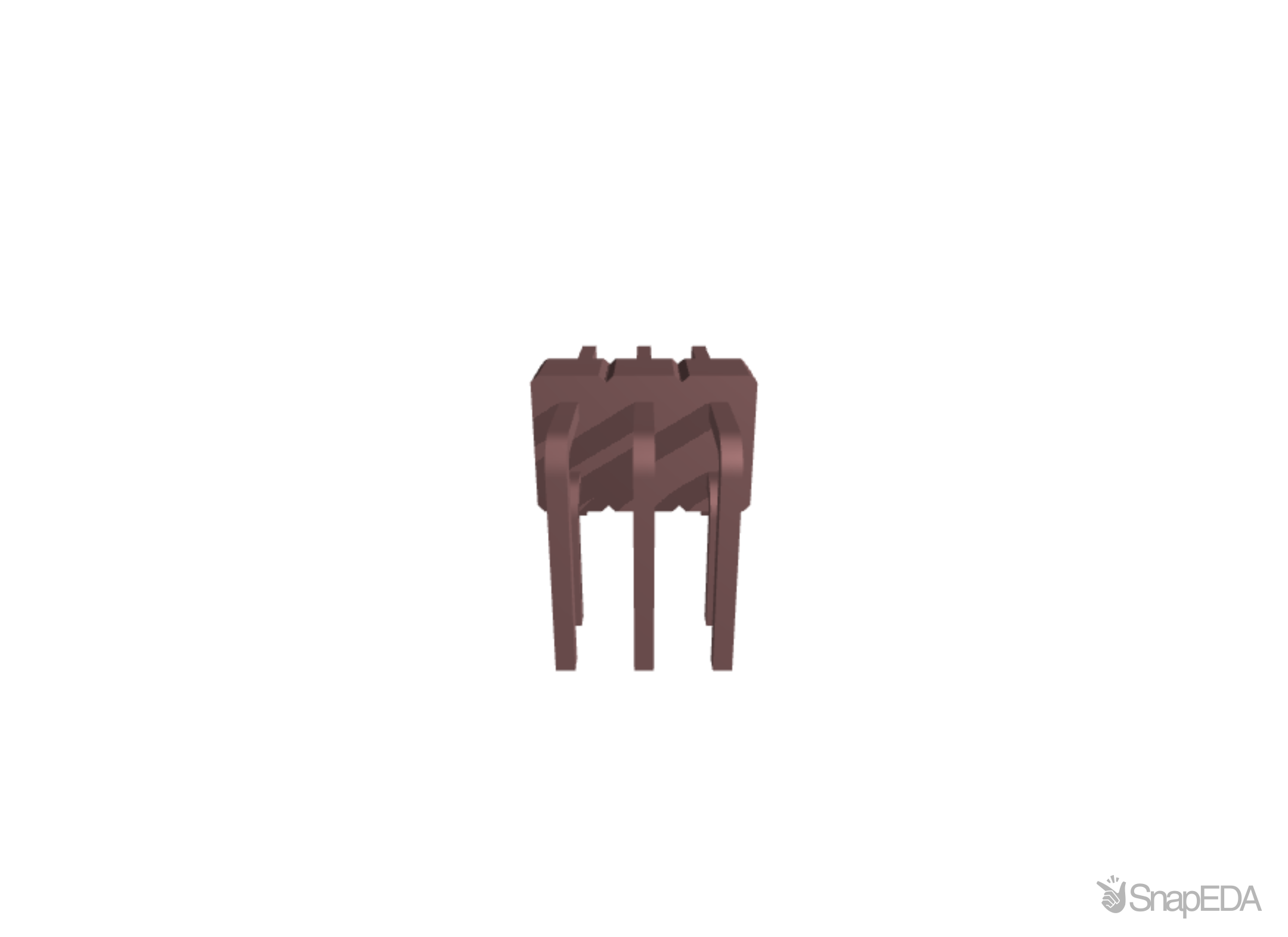

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 826634-3
| Part Name | 826634-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .1 |
| Dielectric Withstanding Voltage (V) | 1000 V |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 6 |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | .1259 |
| Contact Current Rating (Max) (A) | 5 |
| Panel Mount Feature | Without |
| Mating Post Length | 6.7 |
| TE Internal Number | 826634-3 |
| PCB Mount Orientation | Right Angle |
| Number of Rows | 2 |
| PCB Contact Termination Area Plating Material Thickness | 3 |
| Header Type | Breakaway |
| Strain Relief | Without |
| Contact Shape | Square |
| Housing Color | Green |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Carton |
| Packaging Quantity | 600 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Housing Material | PBT GV |
| Contact Base Material | Phosphor Bronze |
| High Temperature Housing | No |
| Post Size | .024 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .8 |
| Row-to-Row Spacing | .1 |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| Connector Profile | Standard |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 3.0 (A) |
| Shrouded Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Series | AMPMODU MOD II |
| Body Orientation | Right Angle |
| Pitch | 2.54 (mm) |
| Connector System | Board to Board, Wire to Board |
| Number Of Rows | 2 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 6 |
| Contact Material | Brass |
