826634-8
SnapVerified
Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 826634-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

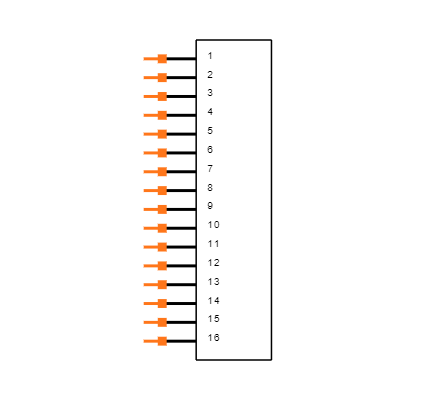

Symbol
No web preview
This Symbol is Available for

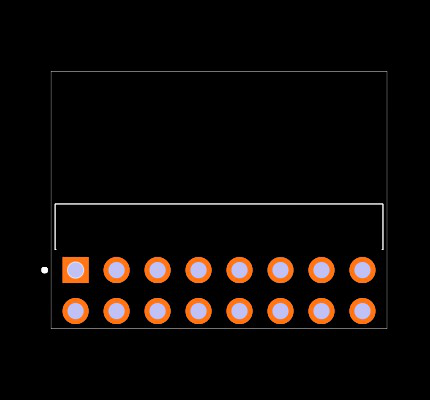

Footprint
No web preview
This Footprint is Available for

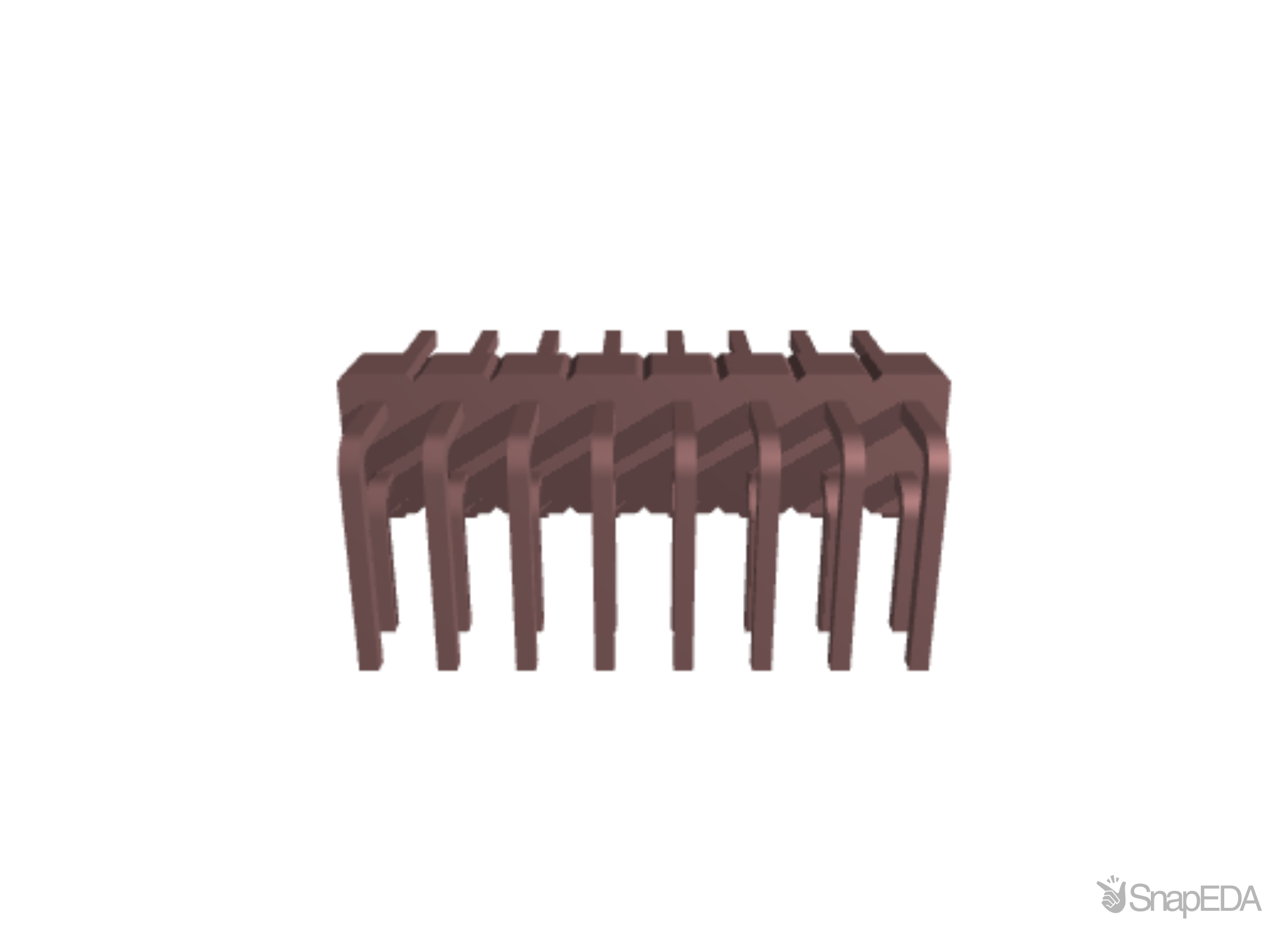

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 826634-8
| Part Name | 826634-8 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Dielectric Withstanding Voltage (V) | 1000 V |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Row-to-Row Spacing | 2.54 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 16 |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | 3.2 |
| PCB Connector Assembly Type | PCB Mount Header |
| Mating Post Length | 6.7 |
| TE Internal Number | 826634-8 |
| PCB Mount Orientation | Right Angle |
| Number of Rows | 2 |
| Housing Color | Green |
| Header Type | Breakaway |
| Contact Base Material | Phosphor Bronze |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | 3 |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Carton |
| Packaging Quantity | 300 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Housing Material | PBT GV |
| Strain Relief | Without |
| High Temperature Housing | No |
| Post Size | .024 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .8 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 5 |
| Connector Contact Load Condition | Fully Loaded |
| Connector Profile | Standard |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 826634-8 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Buerklin |
175
|
|
Visit Site | |
| Chip One Stop |
4,538
|
|
Visit Site | |
| Conrad |
4,602
|
|
Visit Site | |
| Farnell UK |
4,143
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
806
|
|
Visit Site | |
| Powell Electronics |
3,037
|
|
Visit Site | |
| RS Americas |
|
|
Visit Site | |
| Sager |
|
3,600 x $1.76
|
Visit Site | |
|
★ Featured
|
|
3,600 x $1.75
|
Visit Site | |
| TME |
175
|
|
Visit Site | |
| TTI Europe |
200
|
100 x $1.17
|
Visit Site | |
| element14 Singapore |
806
|
|
Visit Site |
No issues have been reported for the 826634-8
