829558-4
MCX GE KU LEI
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 829558-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

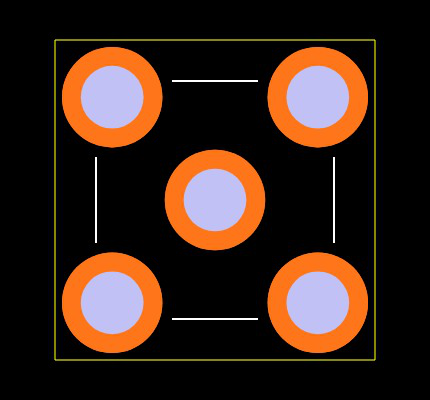

Footprint
No web preview
This Footprint is Available for

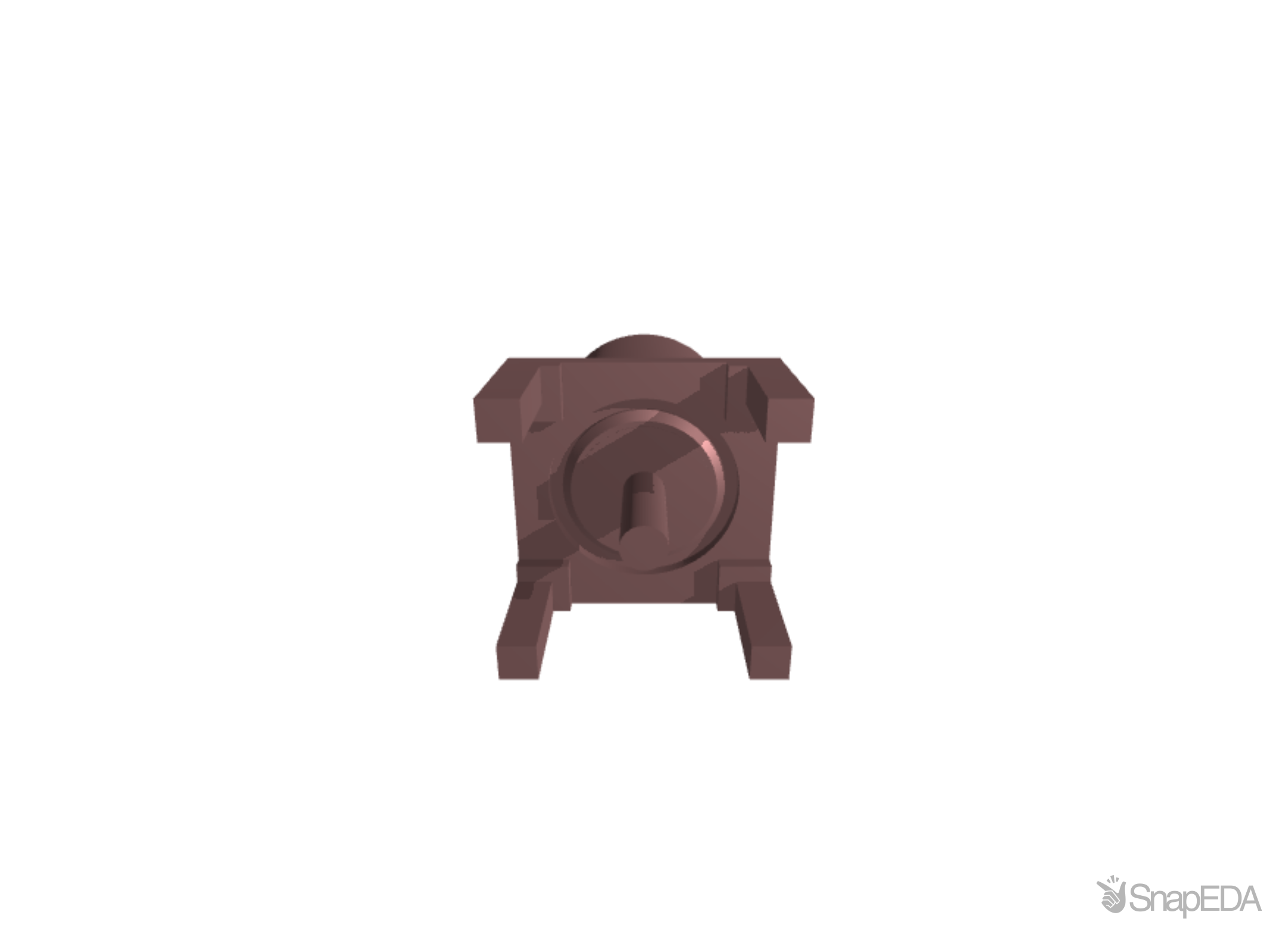

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 829558-4
| Part Name | 829558-4 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| RF Contact Captivation Method | Mechanical |
| Port Configuration | Single Port |
| TE Internal Number | 829558-4 |
| Termination Method to Printed Circuit Board | Through Hole |
| RF Connector Style | Jack |
| PCB Tail Length | .1 |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | PTFE |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | With |
| Part Category | Coax Connectors |
| Number of Mounting Legs | 4 |
| RF Connector Coupling Mechanism | Snap-On |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Body Plating Material | Gold over Nickel |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Product Length | 8.5 |
| RF Connector Mated Outer Diameter (Approximate) | 5 |
| RF Connector Center Contact Plating Thickness | 1300 |
| Operating Temperature Range | -85 – 257 |
| Packaging Method | Bag |
| RF Interface | MCX |
| Packaging Quantity | 1 |
| Detent | Without |
| Body Material | Copper Zinc |
| Number of Positions | 1 |
| Operating Frequency | 6 |
| RoHS | True |
| RF Connector Center Contact Plating Material | Gold |
| Height Above PC Board | .335 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Gold over Nickel |
| Mounting Type | Through Hole |
| Gender | Female |
| Body Orientation | Straight |
| Coaxial Connector Type | MCX Connector |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Operating Frequency | 0 to 6 (GHz) |
| Impedance | 50 (Ω) |
| Contact Material | Beryllium Copper |
Inventory for the 829558-4 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
1,000 x $7.11
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Onlinecomponents |
591
|
1,000 x $5.84
|
Visit Site | |
| Verical |
2,952
|
|
Visit Site |
No issues have been reported for the 829558-4
If you experienced any issues with the symbol or footprint, please report it.
