830108131401
SnapVerified
IQXC-240; 1.2 X 1.0MM; 37.4 MHZ;
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 830108131401 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

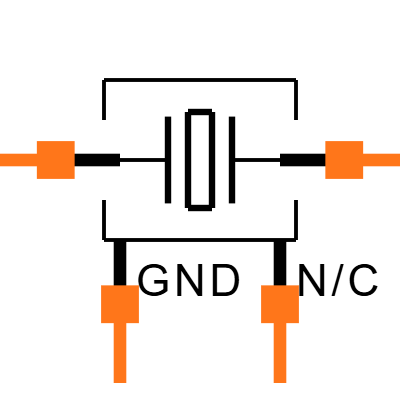

Symbol
No web preview
This Symbol is Available for

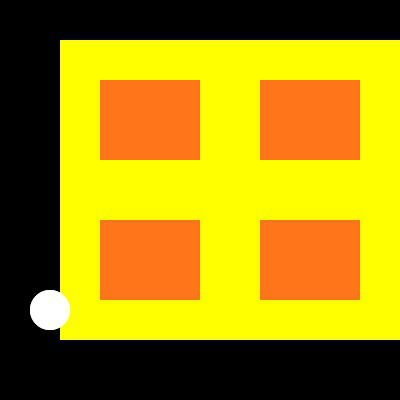

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 830108131401
| Part Name | 830108131401 |
| Manufacturer | Wurth Electronics Inc. |
| Product Series Size | IQXC-240 |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | IQXC-240; 1.2 x 1.0mm; 37.4 MHz; Tol = ±7 ppm; Stab = ±15 ppm; Temp Range: -30 to 85 °C ; Load Cap = 5 pF; |
| Product Family | Quartz Crystal |
| Weight | 0.0014 |
| Spq | 5000 |
| Current Revision (A) | 1.25.0 |
| Packaging Type | 7" Plastic Reel |
| Height | 0.33 mm |
| Width | 1 mm |
| Length | 1.2 mm |
| Product Unit | Frequency Products |
| Product Group Description | Crystal |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 830108131401
If you experienced any issues with the symbol or footprint, please report it.
