83612-9020

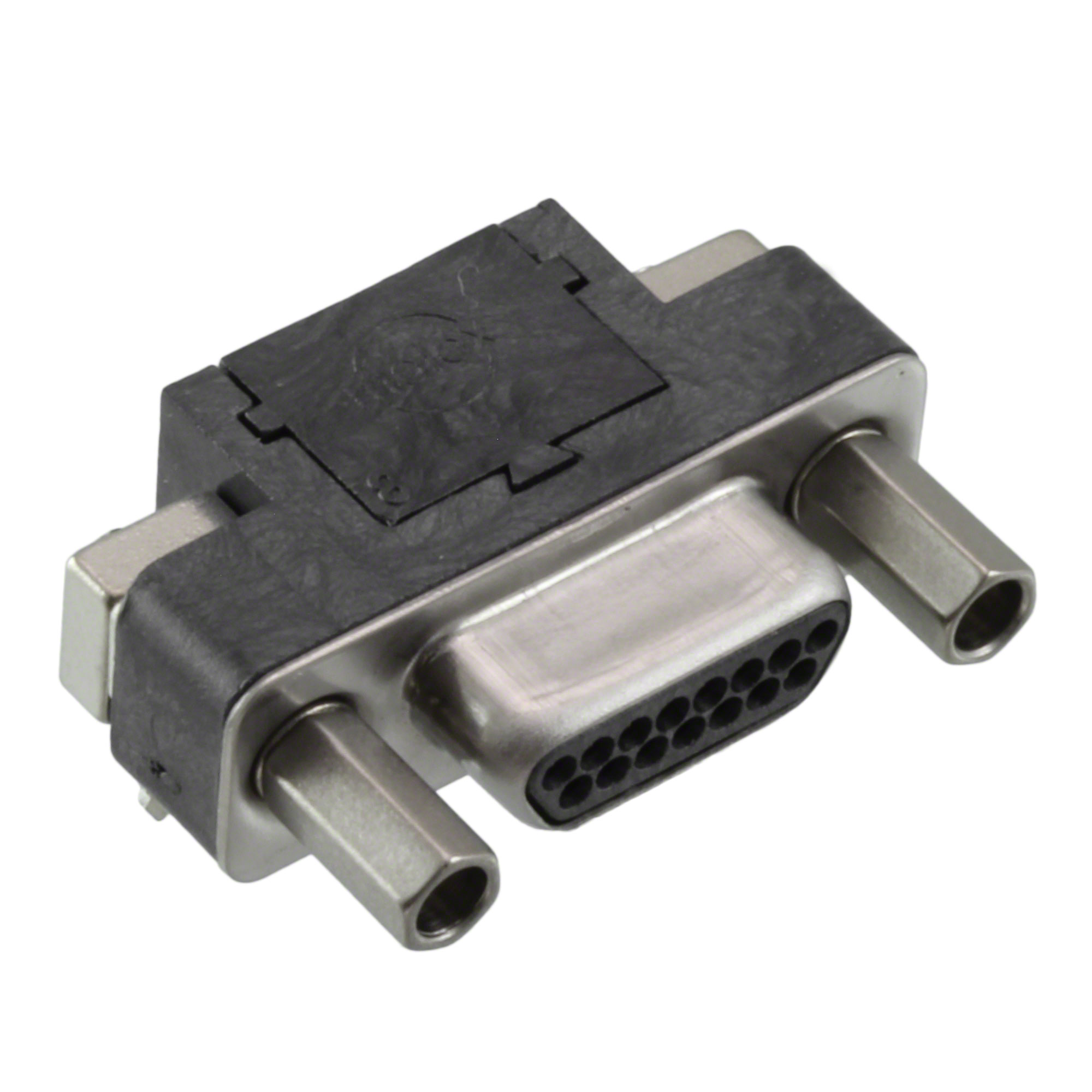

CMD RA PLUG 15 CIR W/JKPOST | Molex Incorporated 83612-9020
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 83612-9020 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

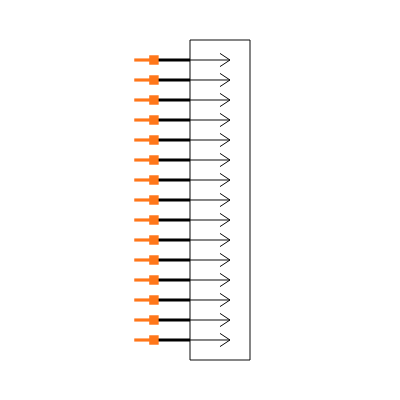

Symbol
No web preview
This Symbol is Available for

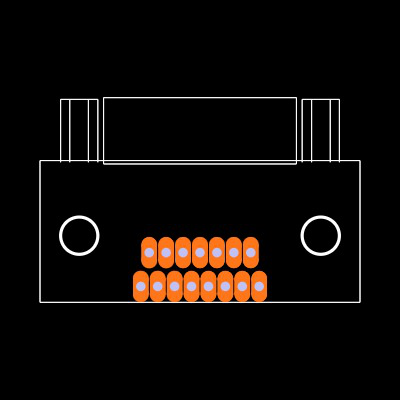

Footprint
No web preview
This Footprint is Available for

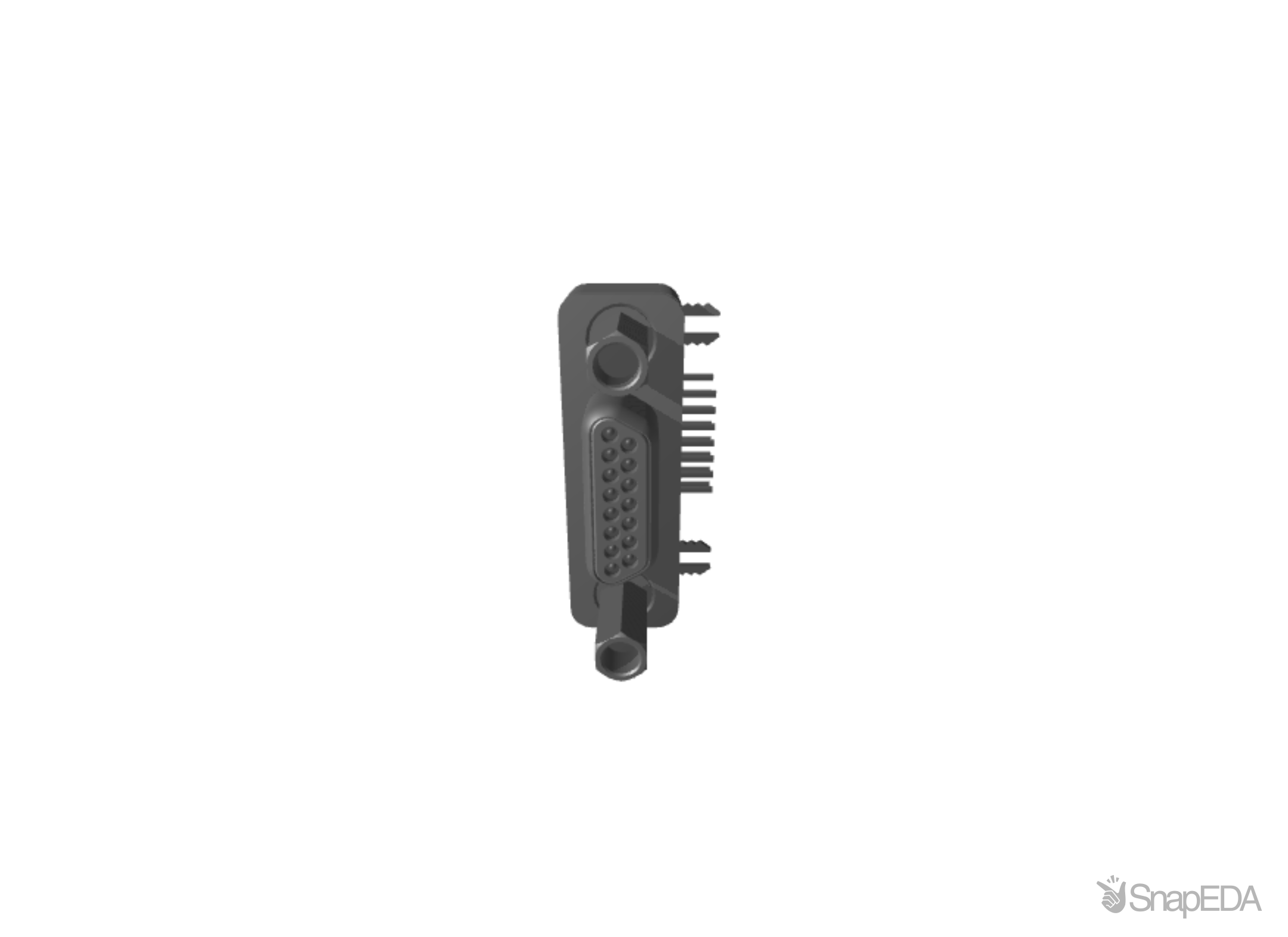

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 83612-9020
| Part Name | 83612-9020 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1 (A) |
| Dimensions | 23.75 x 15.12 x 7.82 (mm) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 350.0 V |
| Gender | Male |
| Series | CMD |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Depth | 7.82 (mm) |
| D Connector Type | Micro-D |
| Width | 15.12 (mm) |
| Length | 23.75 (mm) |
| Minimum Operating Temperature | -40.0 (°C) |
| Pitch | 1.27 (mm) |
| Number Of Contacts | 15 |
| Maximum Operating Temperature | +125 (°C) |
| Series Number | 83612 |
