85502-5005

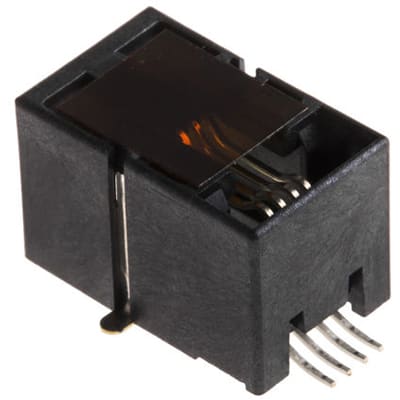

4P4C Right Angle Surface Mount UTP RJ11 Modular Jack Connector 85502 85502 | Molex Incorporated 85502-5005
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 85502-5005 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 85502-5005
| Part Name | 85502-5005 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Ways | 4P4C |
| Orientation | Right Angle |
| Mounting Type | Surface Mount |
| Gender | Male |
| Depth | 11.5 (mm) |
| Width | 11.18 (mm) |
| Length | 18.1 (mm) |
| Ethernet Connector Type | RJ11 Connector |
| Series Number | 85502 |
| Contact Plating | Gold over Palladium Nickel, Tin |
| Lan Category | Cat3 |
| Contact Material | Copper Alloy |
No issues have been reported for the 85502-5005
