85505-5002
CAT5E HIGH SPEED MOD R/A JACK 8/8 VERS A | Molex Incorporated 85505-5002
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 85505-5002 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

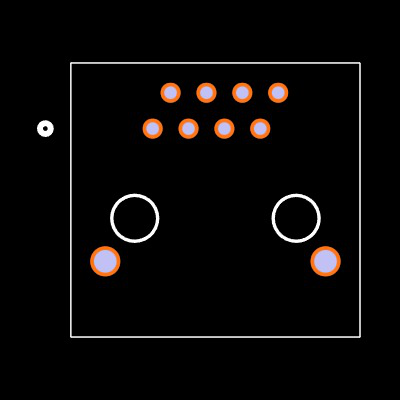

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 85505-5002
| Part Name | 85505-5002 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Ways | 8P8C |
| Orientation | Right Angle |
| Mounting Type | Through Hole |
| Number Of Ports | 1 |
| Series | 85505 |
| Shield Type | Shielded |
| Length | 15.9 (mm) |
| Width | 13 (mm) |
| Depth | 18.8 (mm) |
| Ethernet Connector Type | RJ45 Connector |
| Series Number | 85505 |
| Gender | Female |
| Lan Category | Cat5e |
| Contact Material | Phosphor Bronze |
