85508-5001

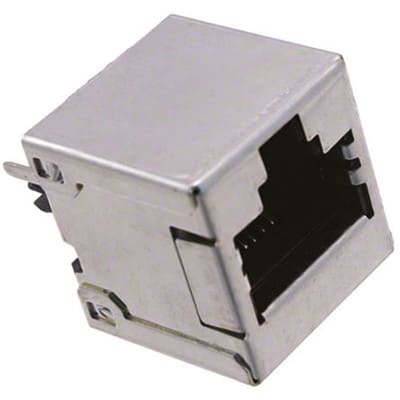

Conn., Data, Modular Jack,Vertical,Shielded, 8/8, Cat 5e,Through Hole,Gold Plate | Molex Incorporated 85508-5001
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 85508-5001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

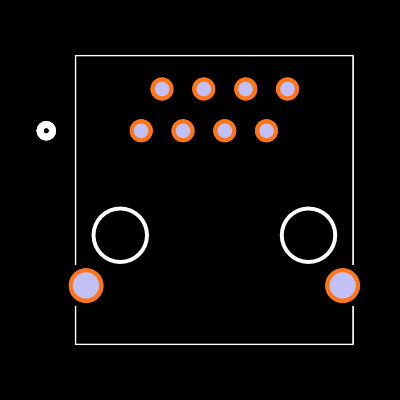

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 85508-5001
| Part Name | 85508-5001 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Ways | 8P8C |
| Orientation | Vertical |
| Mounting Type | Through Hole |
| Number Of Ports | 1 |
| Series | 85508 |
| Shield Type | Shielded |
| Length | 17.3 (mm) |
| Width | 16.6 (mm) |
| Depth | 16.5 (mm) |
| Ethernet Connector Type | RJ45 Connector |
| Series Number | 85508 |
| Gender | Male |
| Contact Plating | Gold over Palladium Nickel |
| Lan Category | Cat5e |
| Contact Material | Phosphor Bronze |
No issues have been reported for the 85508-5001
