85513-5013

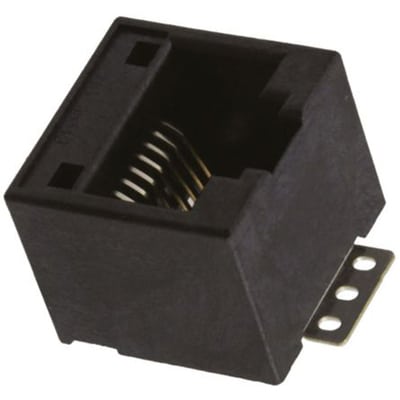

85513, Cat3 RJ45 Modular Jack Socket, Unshielded, Straight, Surface Mount | Molex Incorporated 85513-5013
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 85513-5013 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

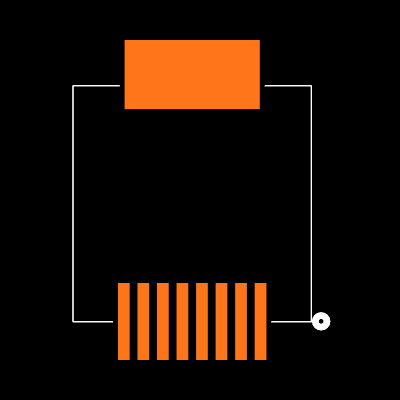

Footprint
No web preview
This Footprint is Available for

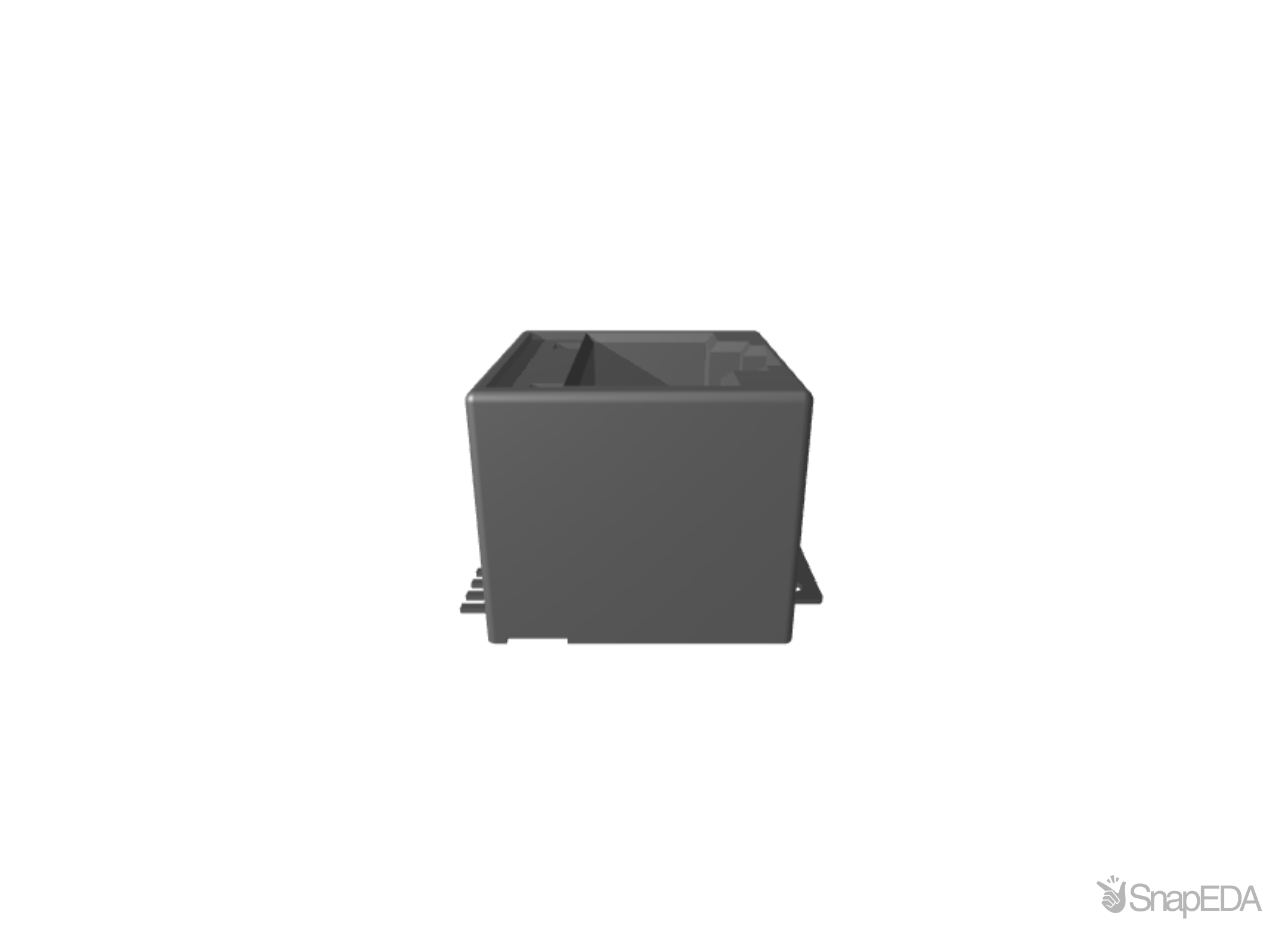

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 85513-5013
| Part Name | 85513-5013 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Ways | 8P8C |
| Orientation | Straight |
| Mounting Type | Surface Mount |
| Gender | Female |
| Shield Type | Unshielded |
| Length | 15.08 (mm) |
| Width | 15.24 (mm) |
| Depth | 12.7 (mm) |
| Ethernet Connector Type | RJ45 Connector |
| Contact Plating | Gold over Palladium Nickel |
| Series | 85513 |
| Lan Category | Cat3 |
| Contact Material | Copper Alloy |
Inventory for the 85513-5013 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
116,820
|
|
Visit Site | |
| Farnell UK |
105,384
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
5,664
|
236 x $0.88
|
Visit Site | |
| Powell Electronics |
75,940
|
|
Visit Site | |
| RS UK |
1,552
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
1,999
|
|
Visit Site | |
| TTI Europe |
9,204
|
236 x $1.15
|
Visit Site | |
| element14 Singapore |
5,664
|
|
Visit Site |
No issues have been reported for the 85513-5013
