858827-1
Conn LGH RCP 1 POS Solder ST Panel Mount 1 Terminal 1 Port
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 858827-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

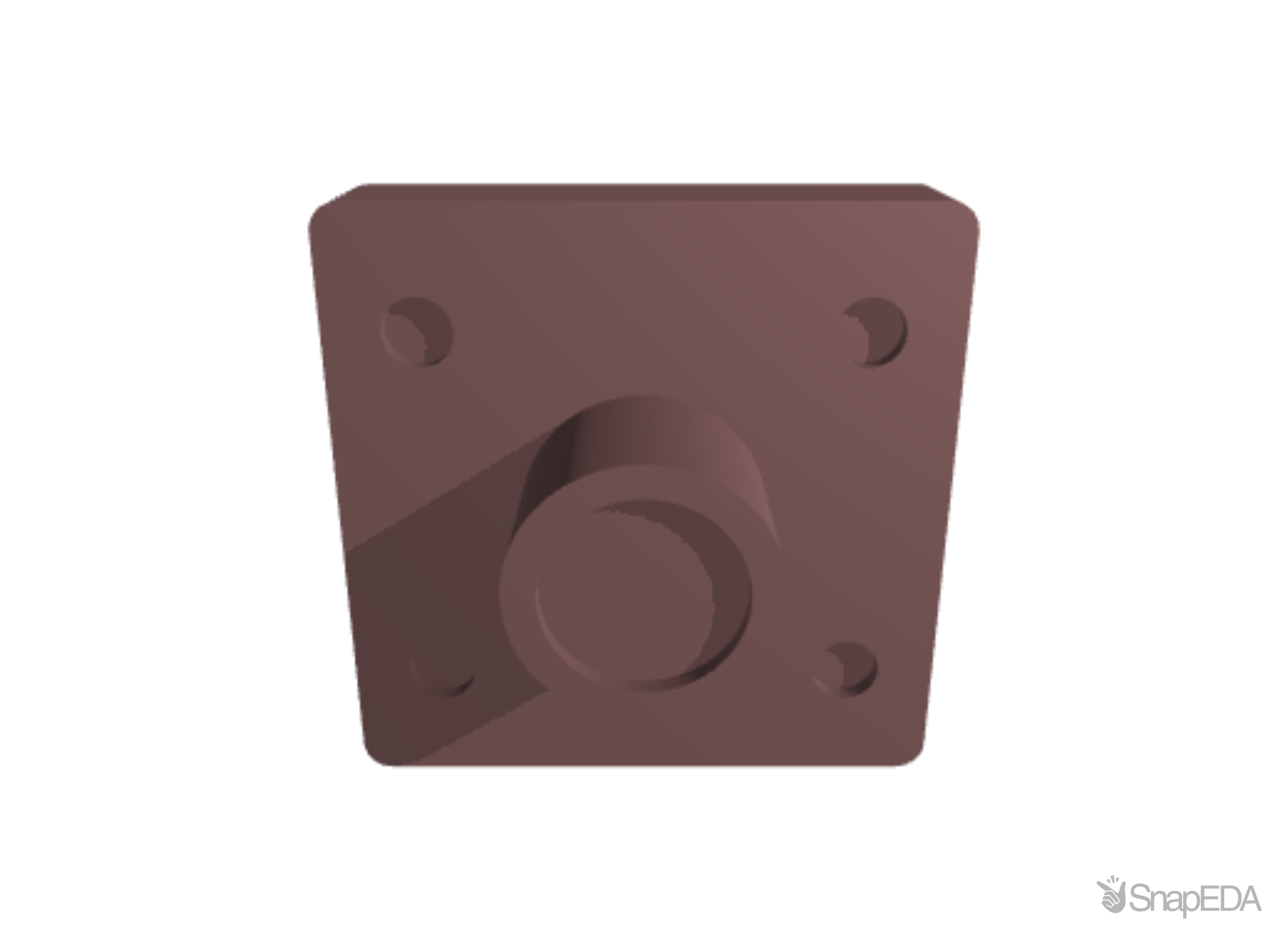

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 858827-1
| Part Name | 858827-1 |
| Manufacturer | TE Connectivity |
| Weight | 16 |
| Panel Feedthrough | No |
| TE Internal Number | 858827-1 |
| Packaging Quantity | 1 |
| Assembly Length | 1.25 |
| Housing Type | Receptacle |
| Operating Voltage (V) | 20000 |
| Contact Type | Pin |
| Panel Mount Feature Type | Flange with Mounting Holes |
| Product Type | Lead Assembly |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
