860080675015
SnapVerified

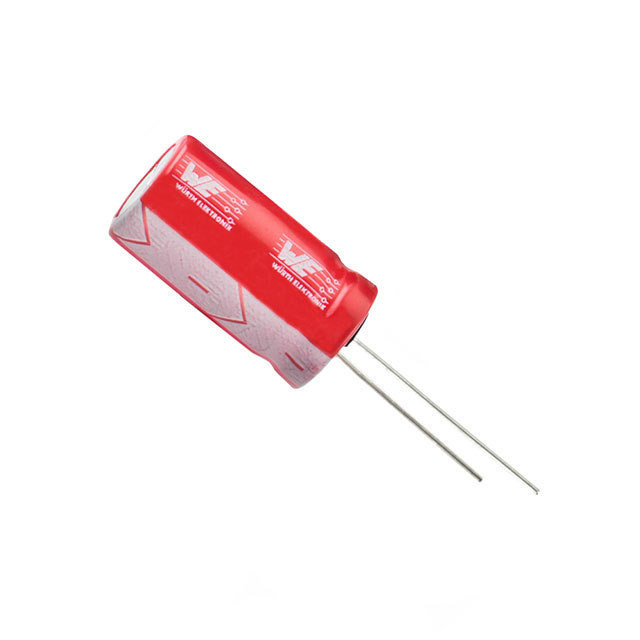

220µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Availability: In Stock
Package Type: RADIAL
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 860080675015 by Wurth Elektronik and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Simulation Models
- More
- Alternates

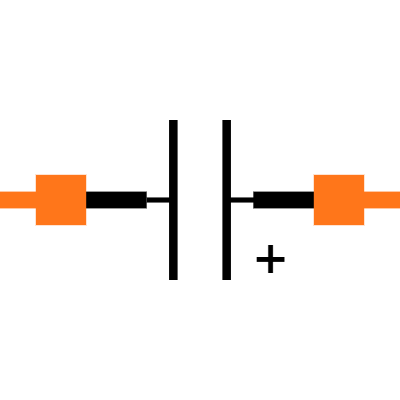

Symbol
No web preview
This Symbol is Available for

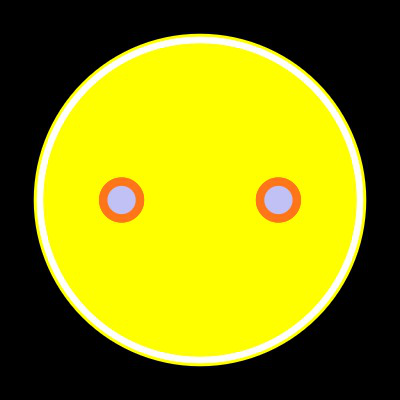

Footprint
No web preview
This Footprint is Available for

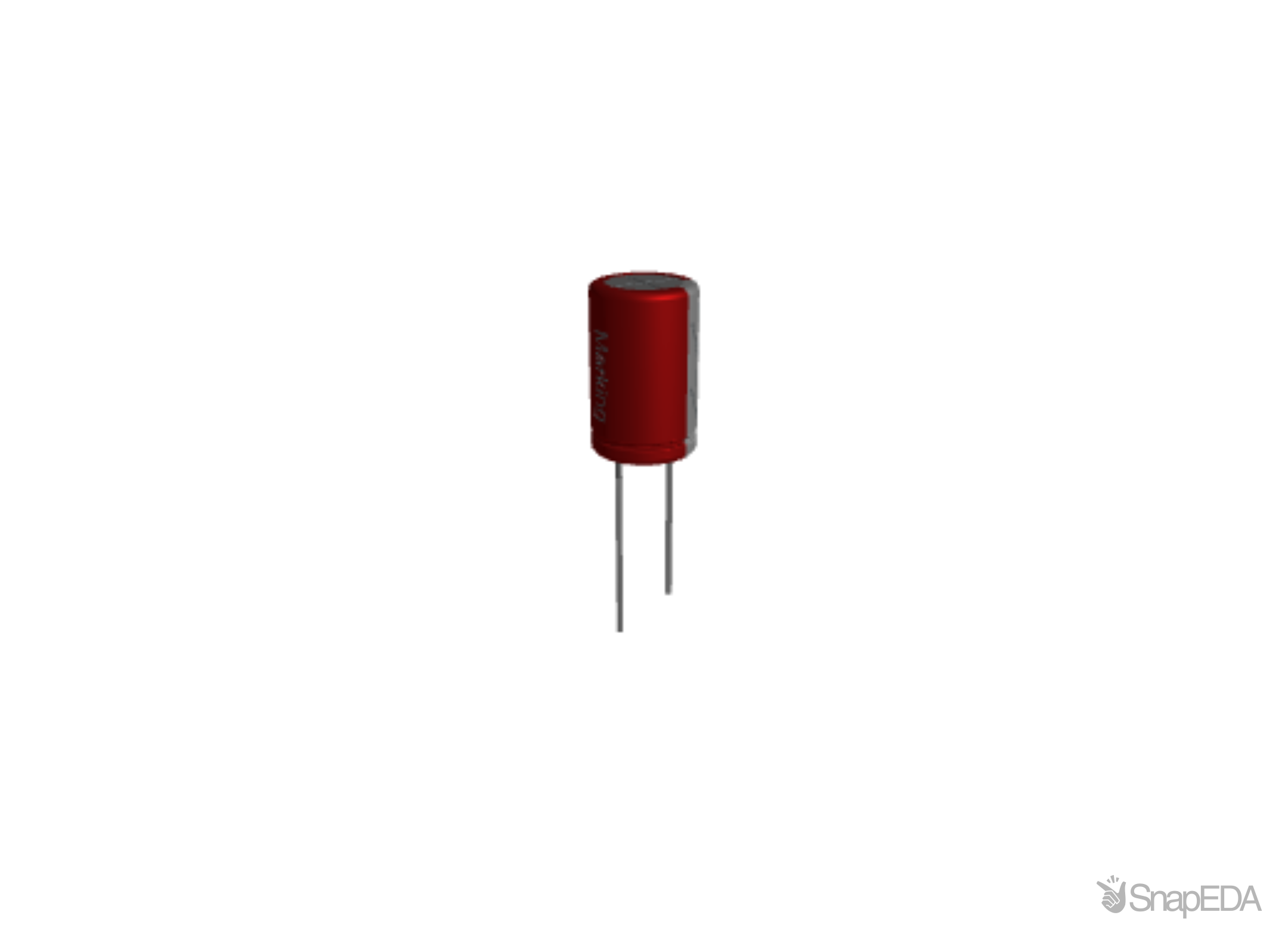

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
Simulation Models
More
| Verification | Issues | Specs | Pricing |
Specifications for the 860080675015
| Part Name | 860080675015 |
| Manufacturer | Wurth Electronics |
| Product Series Size | {u'is_url': False, u'value': u''} |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | ATEF160221M050DSPAAE000; THT Radial; 220 µF ± 20%; 50 V(DC); 5000 h; -55°C / +105°C; size DxL 10.0 x 16.0; pitch 5.0; Pin Ø 0.6; Max. Iripple 1385 mA @100 kHz; LC 110 µA; DF 8% |
| Product Family | Radial THT |
| Weight | 1.889 |
| Spq | 500 |
| Current Revision (A) | 1.0.0 |
| Packaging Type | Ammopack |
| Height | {u'is_url': False, u'value': u''} |
| Width | {u'is_url': False, u'value': u''} |
| Length | 16 mm |
| Product Unit | eiCap |
| Operating Temperature | -55 °C up to +105 °C |
| Product Group Description | Aluminium Electrolitic Capacitors |
| RoHS | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
