863016-2
Connector Accessories Plug/Receptacle Kit 3 POS Polyester Black
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 863016-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

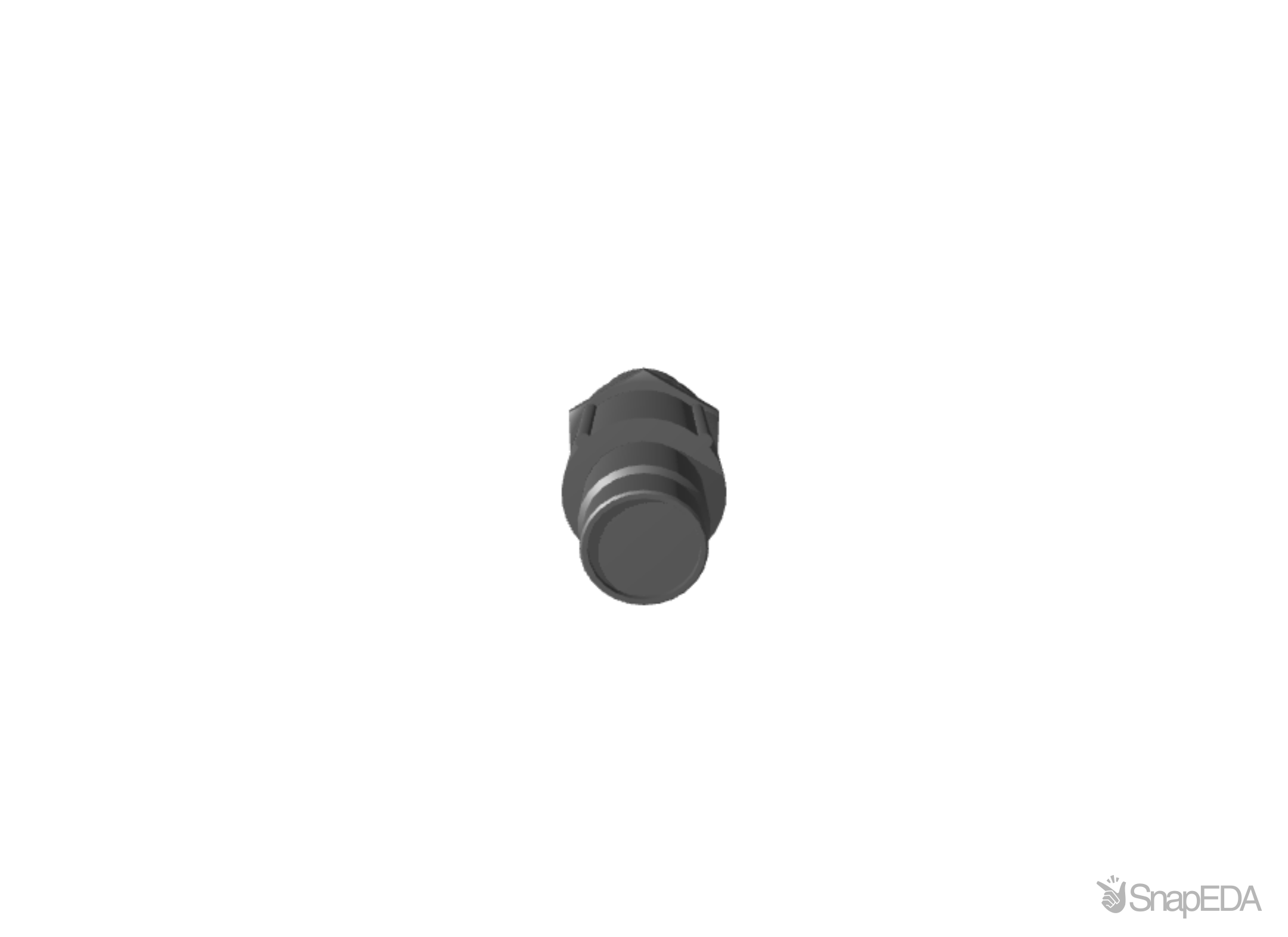

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 863016-2
| Part Name | 863016-2 |
| Manufacturer | TE Connectivity |
| Product Type | Lead Assembly |
| Shielded | No |
| TE Internal Number | 863016-2 |
| Packaging Quantity | 1 |
| Assembly Length | 1.75 |
| Housing Type | Plug and Receptacle |
| Operating Voltage (V) | 27000 |
| Assembly or Kit | Kit |
| Panel Mount Feature Type | Flange |
| Wire Size | .8 – 1.4 |
| Number of Positions | 3 |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
