870235674003

Name: 870235674003
Brand: Wurth Elektronik

SnapVerified

39 µF 35 V Aluminum - Polymer Capacitors Radial, Can 32mOhm 5000 Hrs @ 105°C

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 870235674003 by Wurth Elektronik and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

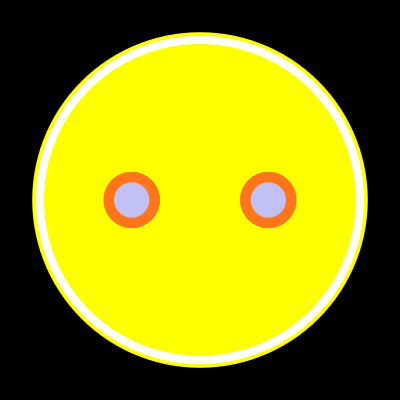

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

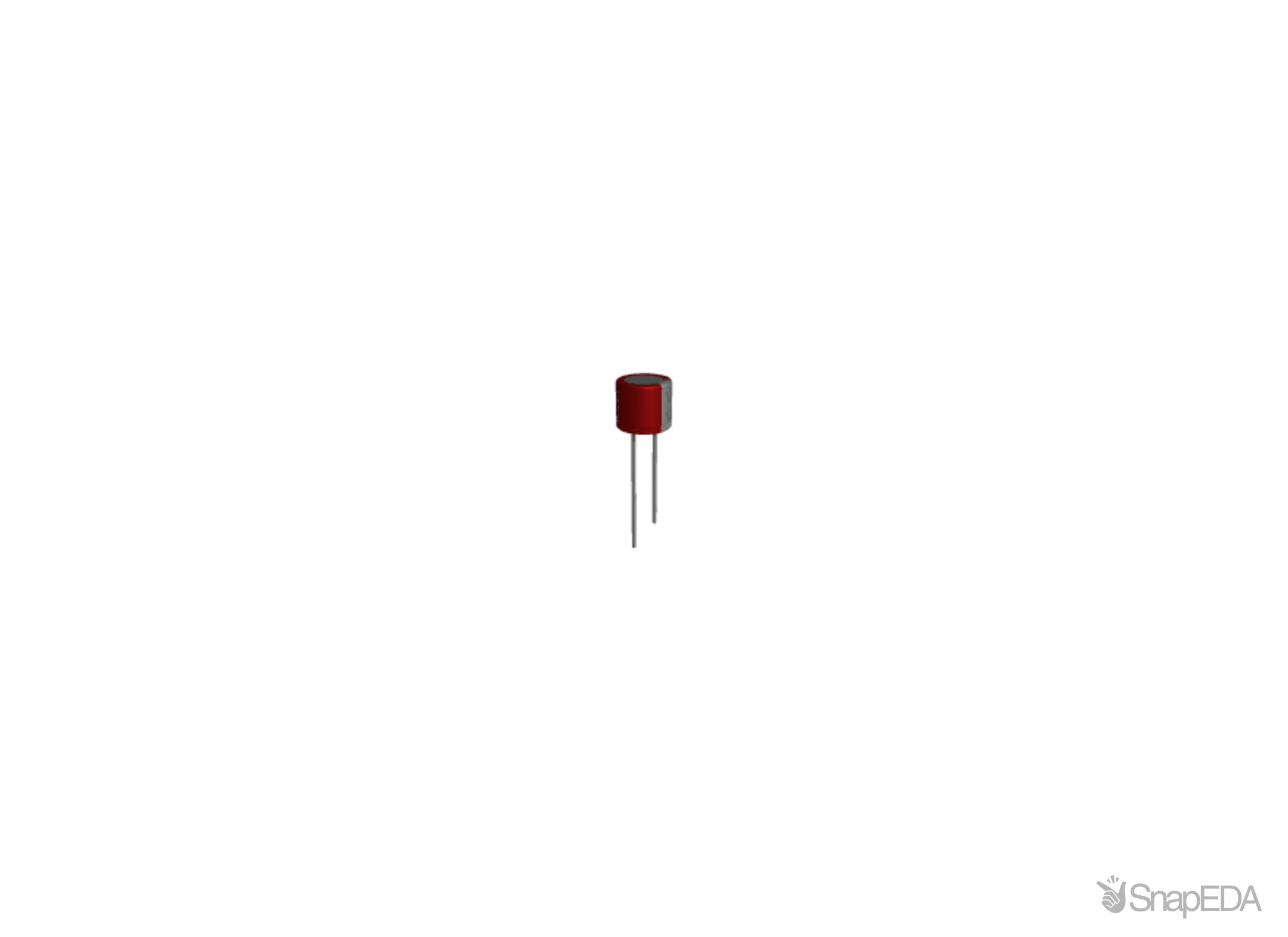

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 870235674003

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 870235674003

Part Name	870235674003
Manufacturer	Wurth Elektronik
Product Series Size	{'is_url': False, 'value': u''}
Division	Passive Components, Power Modules, Optoelectronics
Article Description Long	PTEE070390M035DSPA7E000; THT Radial; 39 µF ± 20%; 35 V(DC); 5000 h; -55°C / +105°C; size DxL 8.0 x 7.0; pitch 3.5; Pin Ø 0.6; ESR 32 mΩ; Max. Iripple 2800 mA @100 kHz; LC 273 µA; DF 12%
