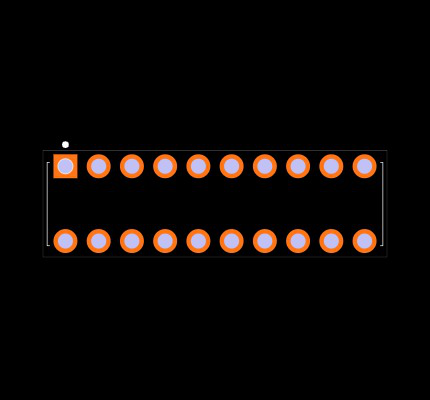

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
87264-2052

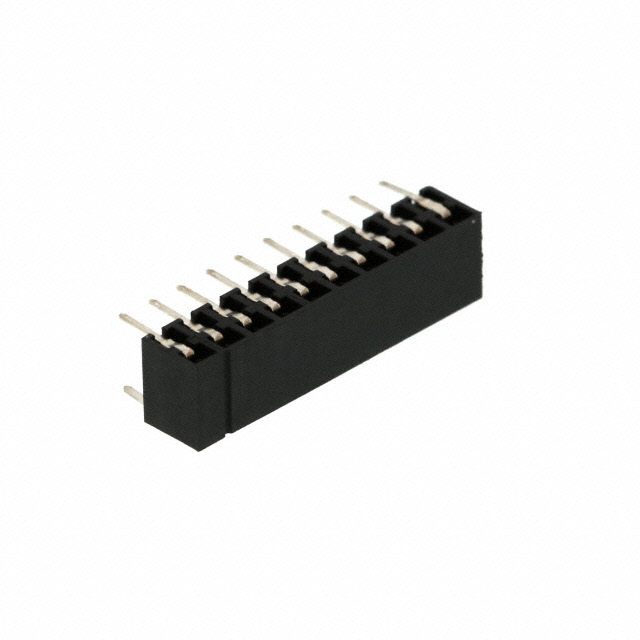

20 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 87264-2052 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

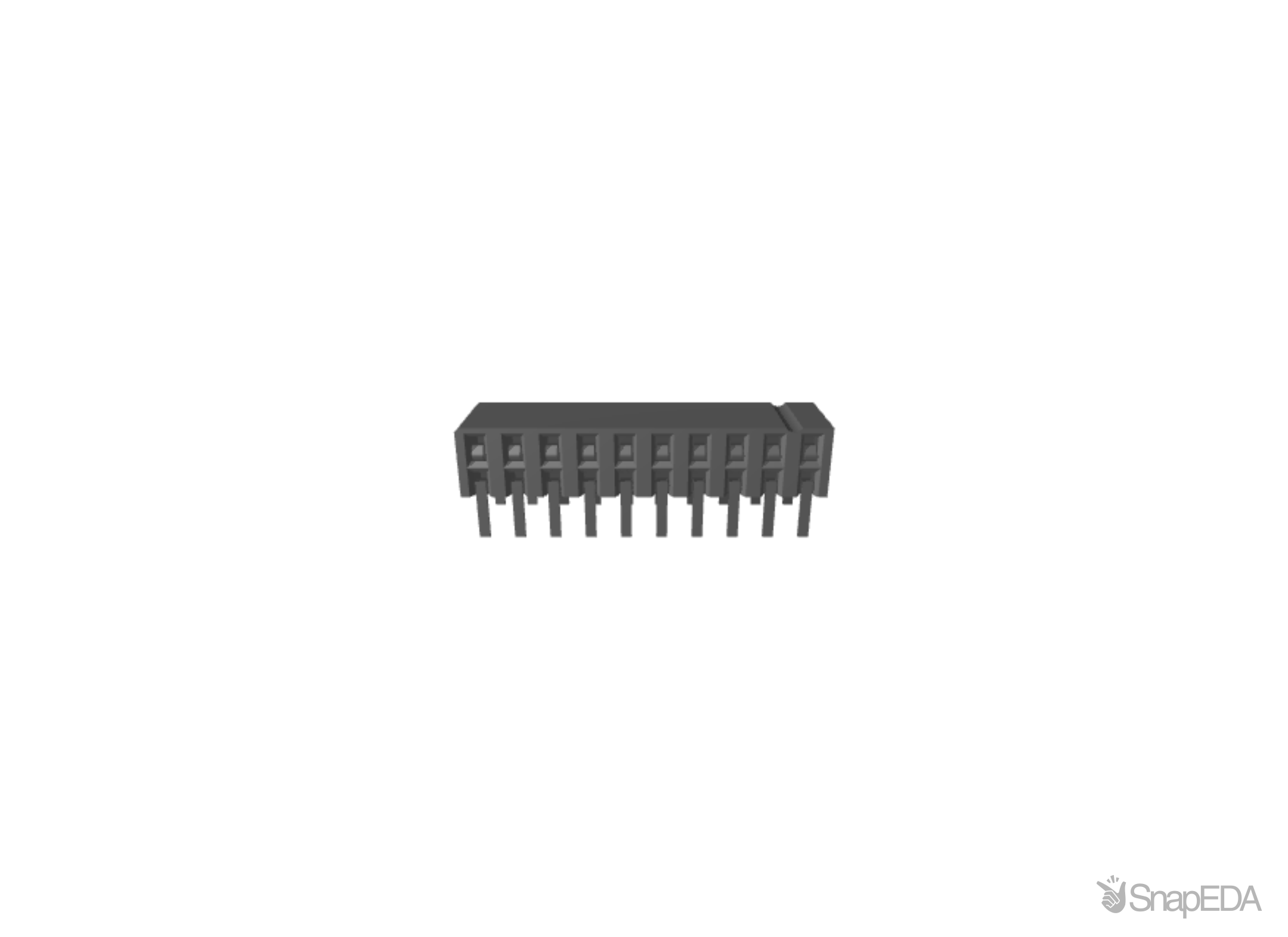

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 87264-2052
| Part Name | 87264-2052 |
| Manufacturer | Molex |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Contact Material | Bronze |
| Current Rating (A) | 12 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 125 V |
| Body Orientation | Right Angle |
| Pitch | 2 (mm) |
| Number Of Rows | 2 |
| Contact Plating | Gold, Tin |
| Termination Method | Solder |
| Number Of Contacts | 20 |
| Type | PCB Receptacle |
| Series Number | 87264 |
