875075661009
Cap, 270Uf, 35V, Alu Elec Smd, Polymer Rohs Compliant: Yes |Wurth Elektronik 875075661009
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 875075661009 by Wurth Electronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

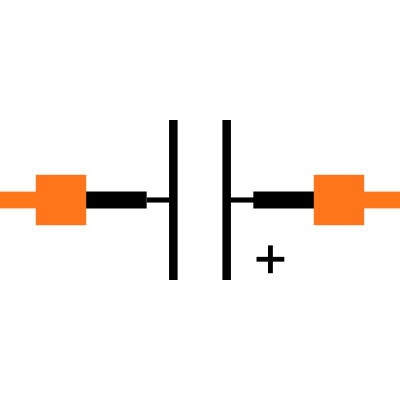

Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 875075661009
| Part Name | 875075661009 |
| Manufacturer | Wurth Electronics |
| Product Series Size | {'is_url': False, 'value': u''} |
| Division | Passive Components, Power Modules, Optoelectronics |
| Article Description Long | PSEF124271M035DVCTFB000; SMT V-Chip; 270 µF ± 20%; 35 V(DC); 2000 h; -55°C / +105°C; size DxL 10.0 x 12.4; ESR 20 mΩ; Max. Iripple 4400 mA @100 kHz; LC 1890 µA; DF 12 % |
| Product Family | V-Chip SMT |
| Weight | 1.4211 |
| Ro Hs Approval | 2011/65/EU&2015/863 |
| Spq | 400 |
| Current Revision (A) | 2.0.0 |
| Packaging Type | 15" Tape & Reel |
| Height | {'is_url': False, 'value': u''} |
| Reach Approval | (EC)1907/2006 |
| Width | 10.3 mm |
| Length | 12.4 mm |
| Product Unit | eiCap |
| Operating Temperature | -55 °C up to +105 °C |
| Product Group Description | Aluminium Polymer Capacitors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 875075661009
