885012005042

Name: 885012005042
Brand: Würth Elektronik Midcom

SnapVerified

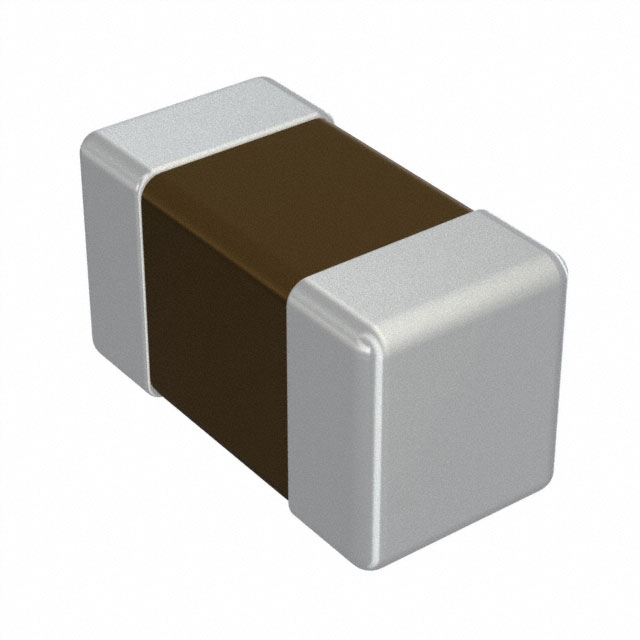

WCAP-CSGP General Purpose MLCC; SMT 0402; NP0; 22pF 5%; 25V; -55C to +125C; Tech. PN NP00402220J025DFCT10000

Availability: Out of Stock

Package Type: 0402

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 885012005042 by Würth Elektronik Midcom and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 885012005042

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 885012005042

Part Name	885012005042
Manufacturer	Würth Elektronik
Capacitance Tolerance	[-5.0, 5.0]
Polarized	{'is_url': False, 'value': False}
Voltage Rating (V)	25.0
Case Package	0402
Series	WCAP-CSGP
Product Link	https://katalog.we-online.com/en/pbs/WCAP-CSGP-0402/885012005042
AEC-Q200 Compliant	{'is_url': False, 'value': False}
Mounting Style	SMT
Capacitance	2.2e-11
Operating Temperature	[-55.0, 125.0]
Insulation Resistance	10000000000.0
Q-Factor	400.0
RoHS	True
RoHS Compliant	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
