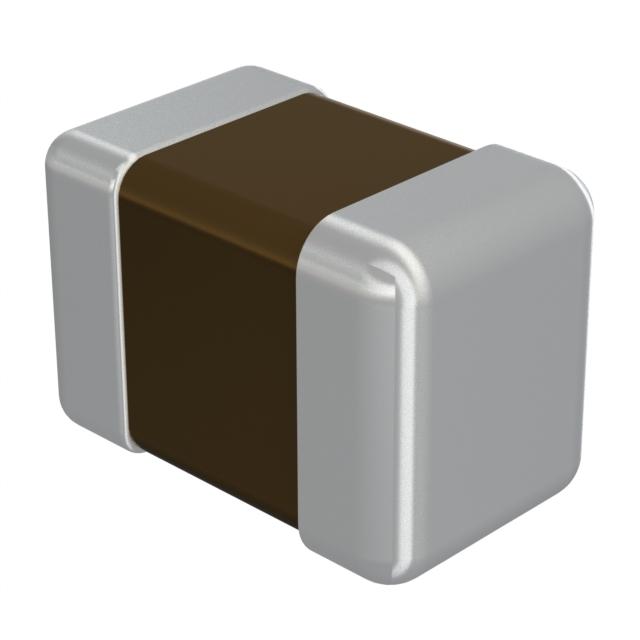

885012207128

Name: 885012207128
Brand: Würth Elektronik Midcom

SnapVerified

WCAP-CSGP General Purpose MLCC; SMT 0805; X7R; 100nF 10%; 100V; -55C to +125C; Tech. PN X7R0805104K100DFCT10000

Availability: Out of Stock

Package Type: 0805

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 885012207128 by Würth Elektronik Midcom and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 885012207128

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 885012207128

Part Name	885012207128
Manufacturer	Würth Elektronik
Product Series Size	100 V(DC)
Article Description Long	X7R0805104K100DFCT10000; SMT Chip; 100 nF ± 10%; 100 V(DC); -55°C / +125°C; size 0805; LxWxH 2.0 x 1.25 x 1.25; Term. Cu/Ni/Sn
Product Unit	eiCap
Current Revision (A)	2.0.0
AEC-Q200 Compliant	{'is_url': False, 'value': False}
Dissipation Factor	2.5
Reach Approval	Conform or declared
Width	1.25 mm
Operating Temperature	[-55.0, 125.0]
Insulation Resistance	1000000000.0
Division	Passive Components, Power Modules, Optoelectronics
Capacitance	1e-07
Product Family	General Purpose
Case Package	0805
RoHS Compliant	True
Polarized	{'is_url': False, 'value': False}
Voltage Rating (V)	100.0
Product Link	https://katalog.we-online.com/en/pbs/WCAP-CSGP-0805/885012207128
Length	2.0 mm
Product Group Description	MLCC
RoHS	True
Life Cycle Status	Active
Capacitance Tolerance	[-10.0, 10.0]
Weight	0.01127
Ro Hs Approval	Compliant
Spq	3000
Packaging Type	7" Tape & Reel
Height	1.25 mm
Mounting Style	SMT
Series	WCAP-CSGP
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

We could not find inventory or pricing across major distributors for the 885012207128 by Würth Elektronik Midcom.
