885012209071

Name: 885012209071
Brand: Würth Elektronik Midcom

SnapVerified

WCAP-CSGP General Purpose MLCC; SMT 1210; X7R; 110pF 10%; 100V; -55C to +125C; Tech. PN X7R1210225K100DFCT10000

Availability: Out of Stock

Package Type: 1210

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 885012209071 by Würth Elektronik Midcom and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

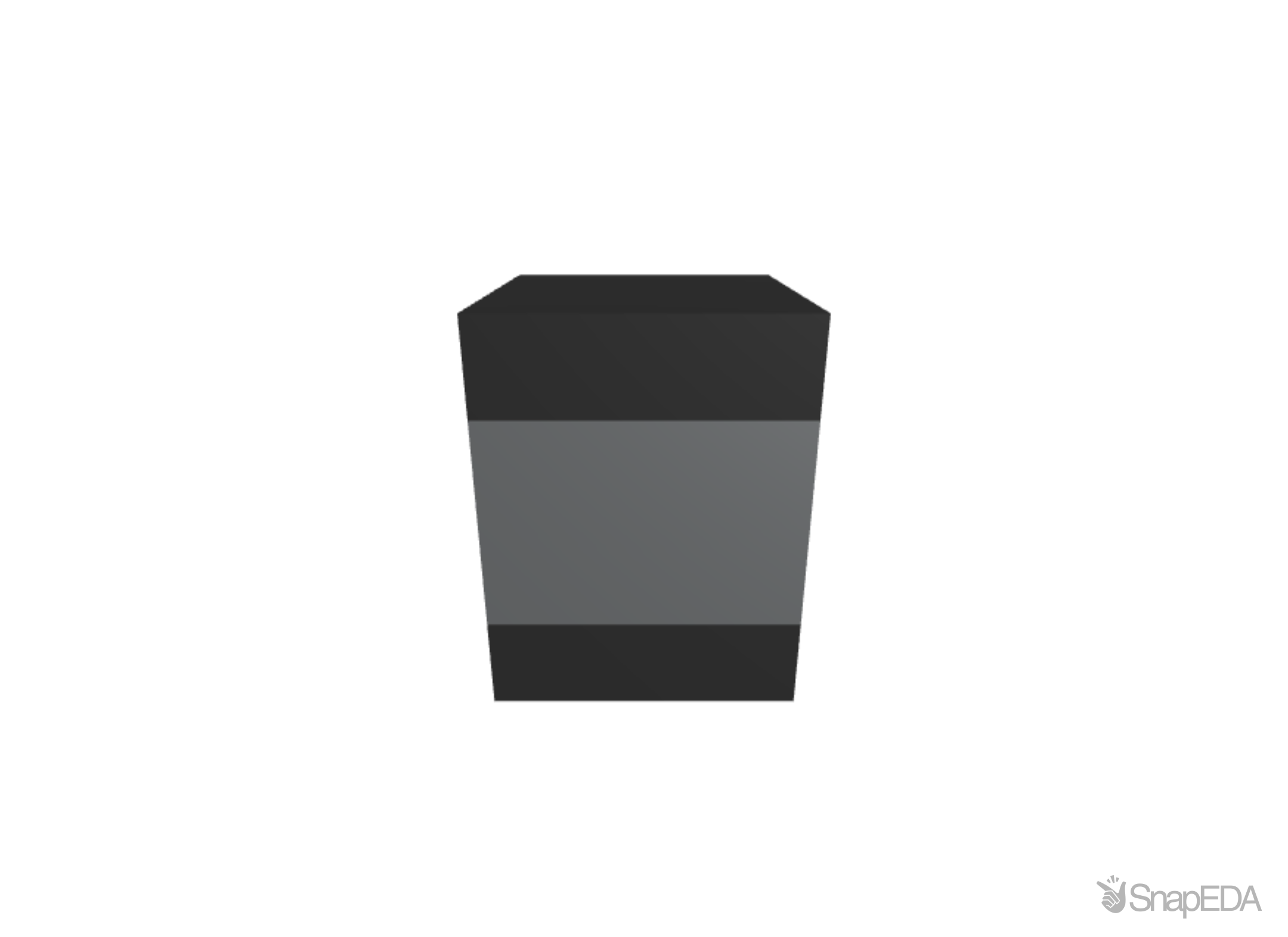

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 885012209071

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 885012209071

Part Name	885012209071
Manufacturer	Würth Elektronik
Product Series Size	100 V(DC)
Article Description Long	X7R1210225K100DFCT10000; SMT Chip; 2.2 µF ± 10%; 100 V(DC); -55°C / +125°C; size 1210; LxWxH 3.2 x 2.5 x 2.5; Term. Cu/Ni/Sn
Product Unit	eiCap
Current Revision (A)	2.0.0
AEC-Q200 Compliant	{'is_url': False, 'value': False}
Reach Approval	(EC)1907/2006
Width	2.5 mm
Operating Temperature	[-55.0, 125.0]
Insulation Resistance	10000000000.0
Division	Passive Components, Power Modules, Optoelectronics
Capacitance	1.1e-10
Product Family	General Purpose
Case Package	1210
Q-Factor	400.0
RoHS Compliant	True
Polarized	{'is_url': False, 'value': False}
Voltage Rating (V)	100.0
Product Link	https://katalog.we-online.com/en/pbs/WCAP-CSGP-1210/885012209071
Length	3.2 mm
Product Group Description	MLCC
RoHS	True
Life Cycle Status	Active
Capacitance Tolerance	[-10.0, 10.0]
Weight	0.11289
Ro Hs Approval	2011/65/EU&2015/863
Spq	1000
Packaging Type	7" Tape & Reel
Height	2.5 mm
Mounting Style	SMT
Series	WCAP-CSGP
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

We could not find inventory or pricing across major distributors for the 885012209071 by Würth Elektronik Midcom.
