885392005014
SnapVerified

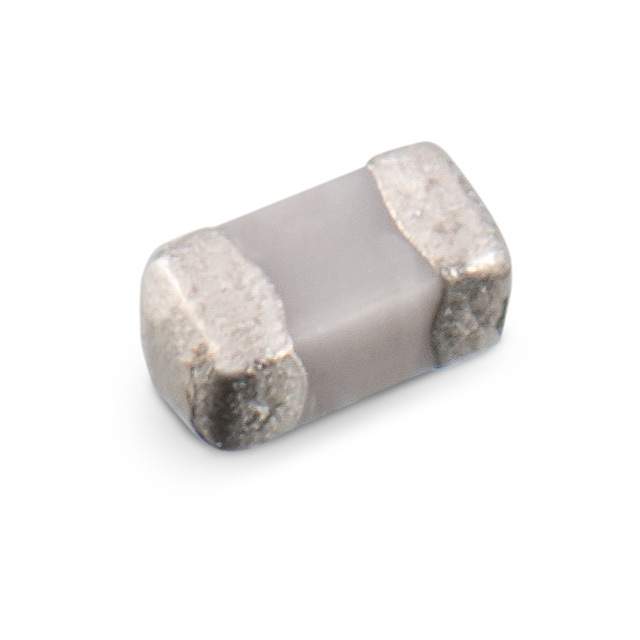

WCAP-CSRF High Frequency MLCC; SMT 0402; NP0; 9pF 0.25pF; 50V; -55C to +125C; Tech. PN NP004029R0C050DFCT1R000
Availability: In Stock
Package Type: 0402
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 885392005014 by Würth Elektronik Midcom and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

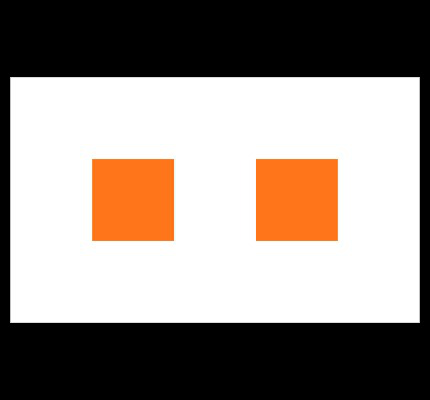

Footprint
No web preview
This Footprint is Available for

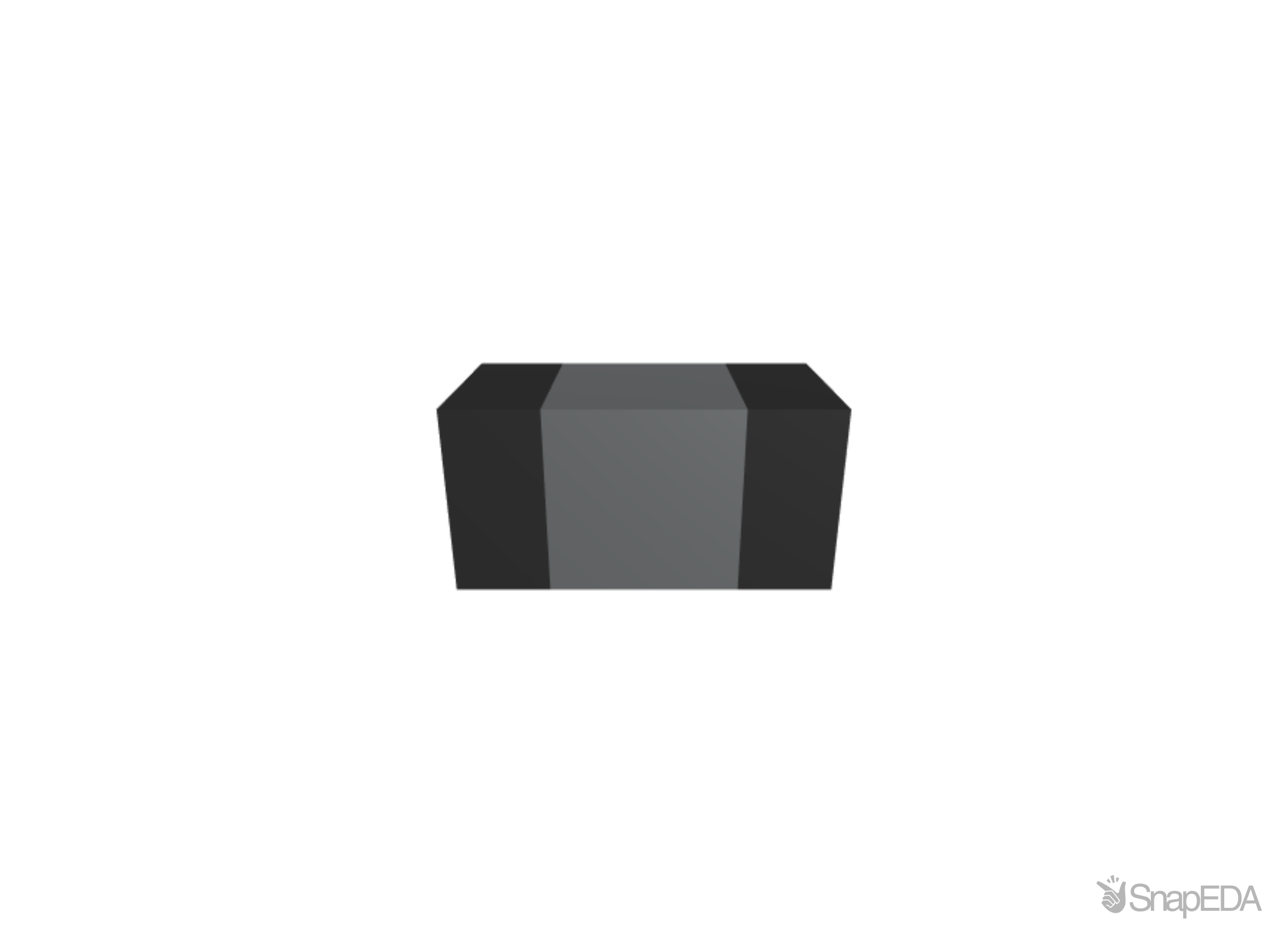

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 885392005014
| Part Name | 885392005014 |
| Manufacturer | Würth Elektronik |
| Sample Link | https://www.we-online.com/redexpert/article/885392005014?_sm-2024-09 |
| Capacitance Tolerance | [-0.25, 0.25] |
| Polarized | {'is_url': False, 'value': False} |
| Voltage Rating (V) | 50.0 |
| Case Package | 0402 |
| Series | WCAP-CSRF |
| Product Link | https://katalog.we-online.com/en/pbs/WCAP-CSRF/885392005014 |
| AEC-Q200 Compliant | {'is_url': False, 'value': False} |
| Mounting Style | SMT |
| Capacitance | 9e-12 |
| Operating Temperature | [-55.0, 125.0] |
| Insulation Resistance | 10000000000.0 |
| Q-Factor | 580.0 |
| RoHS Compliant | True |
| Life Cycle Status | Active |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 885392005014 by Würth Elektronik Midcom from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
8,270
|
|
Visit Site | |
| Newark |
8,270
|
|
Visit Site | |
| RS UK |
503
|
|
Visit Site | |
| element14 Singapore |
8,270
|
|
Visit Site |
No issues have been reported for the 885392005014
