8917
LED SPACER | Keystone Electronics 8917
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 8917 by Keystone and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

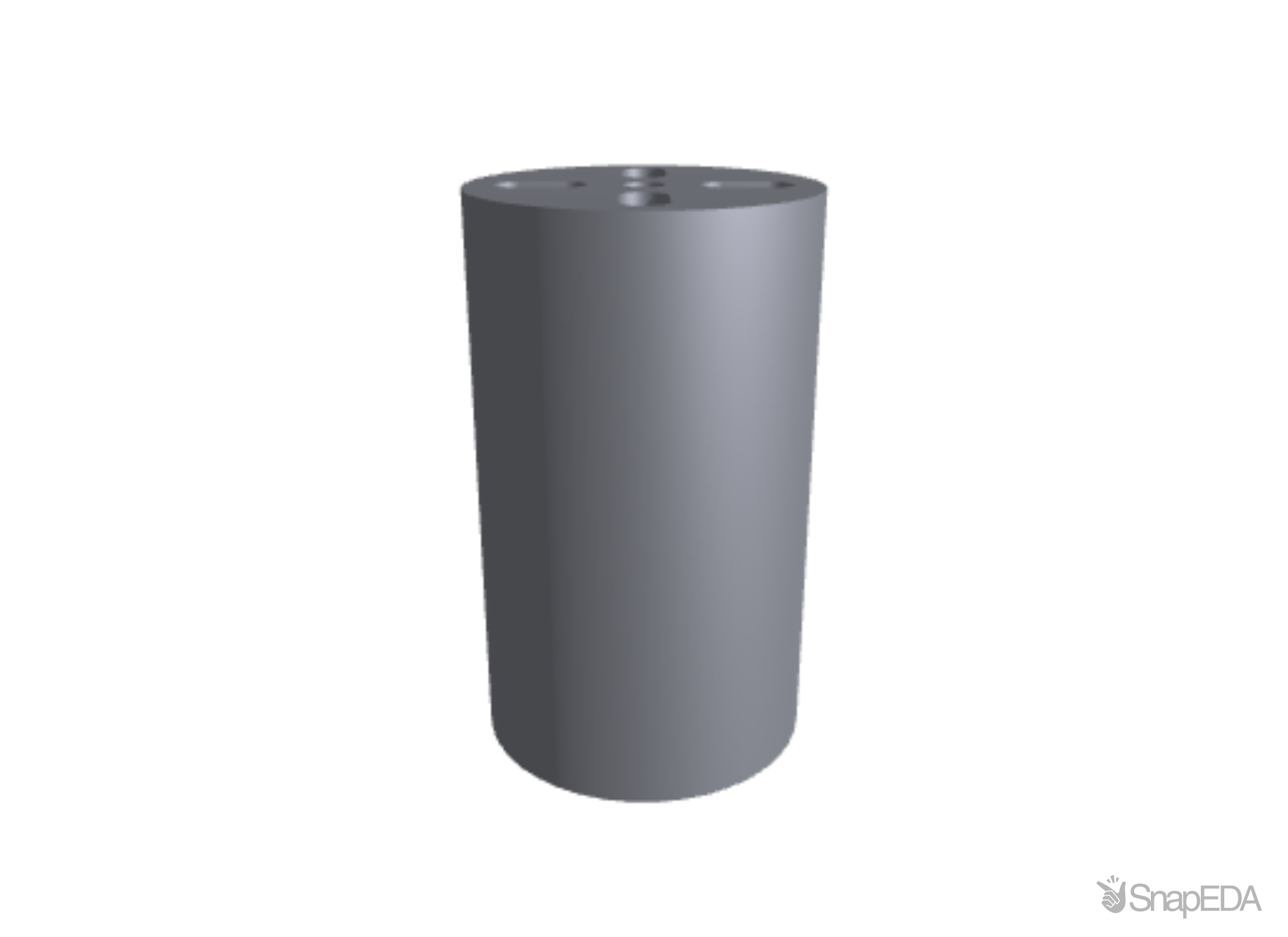

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 8917
| Part Name | 8917 |
| Manufacturer | Keystone |
| Category | Electronic Components |
| RoHS | True |
| Product Link | http://www.keyelco.com/product.cfm/Universal-Tri-Lead/8917/product_id/2839 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| For Use With | 3 mm (T-1) LED, 5 mm (T-1 3/4) LED |
| Diameter | 6.5 (mm) |
| Led Holder Type | LED Spacer |
| Mounting Type | PCB |
Inventory for the 8917 by Keystone from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
951
|
|
Visit Site | |
| Arrow Europe |
37
|
|
Visit Site | |
| Heilind Americas |
|
1,000 x $0.12
|
Visit Site | |
| RS UK |
600
|
|
Visit Site | |
| TME |
1,163
|
|
Visit Site |
No issues have been reported for the 8917
