8PCV-06-006
SnapVerified
Barrier Strip 6 Positions 1 Row Tri-Barrier 18-10AWG/22-10AWG 30A Current 600V Voltage Black PC Pins
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 8PCV-06-006 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

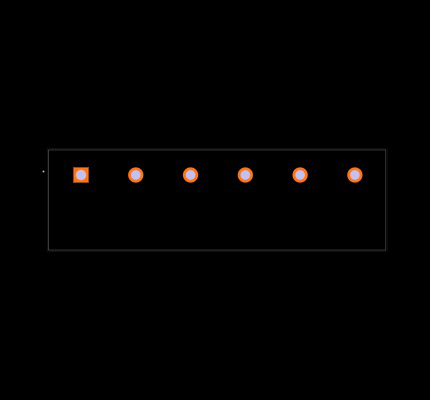

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 8PCV-06-006
| Part Name | 8PCV-06-006 |
| Manufacturer | TE Connectivity |
| Bottom Termination Style | Printed Circuit Pin |
| Centerline (Pitch) | .438 |
| Top Hardware | Wire Clamp Combo Head |
| Housing Material | Thermoplastic |
| Screw Plating Material | Zinc |
| Barrier Strip Style | Tri-Barrier |
| Screw Size | 8-32 |
| Screw Head Type | Wire Clamp Combo Head |
| Number of Positions | 6 |
| Current Rating (Max) (A) | 30 |
| Block Style | Open Bottom with Standoffs |
| TE Internal Number | 9-1437657-8 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Rows | 1 |
| Product Type | Barrier Strip |
| Operating Temperature Range | -40 – 120 |
| Terminal Material | Copper Alloy |
| Packaging Method | Package |
| Packaging Quantity | 100 |
| Length | 2.697 |
| RoHS | True |
| Terminal Plating Finish | Bright |
| Mounting Angle | Vertical |
| Number of Levels | 1 |
| Color | Black |
| Mounting Ears | Without |
| Current Rating (A) | 30 |
| Mounting Options | None |
| UL Flammability Rating | UL 94V-0 |
| Screw Material | Steel |
| Mounting Insert | Without |
| Voltage (V) | 600 |
| Terminal Plating Material | Tin |
| Wire Size | .326 – 5.26 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 8PCV-06-006 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
4,868
|
|
Visit Site | |
| Arrow Electronics |
36
|
|
Visit Site | |
| Newark |
|
500 x $4.19
|
Visit Site | |
| Verical |
36
|
2 x $3.26
|
Visit Site |
No issues have been reported for the 8PCV-06-006
