9-1452380-9
Conn Housing RCP 96 POS Crimp ST Cable Mount Automotive Box
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 9-1452380-9 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

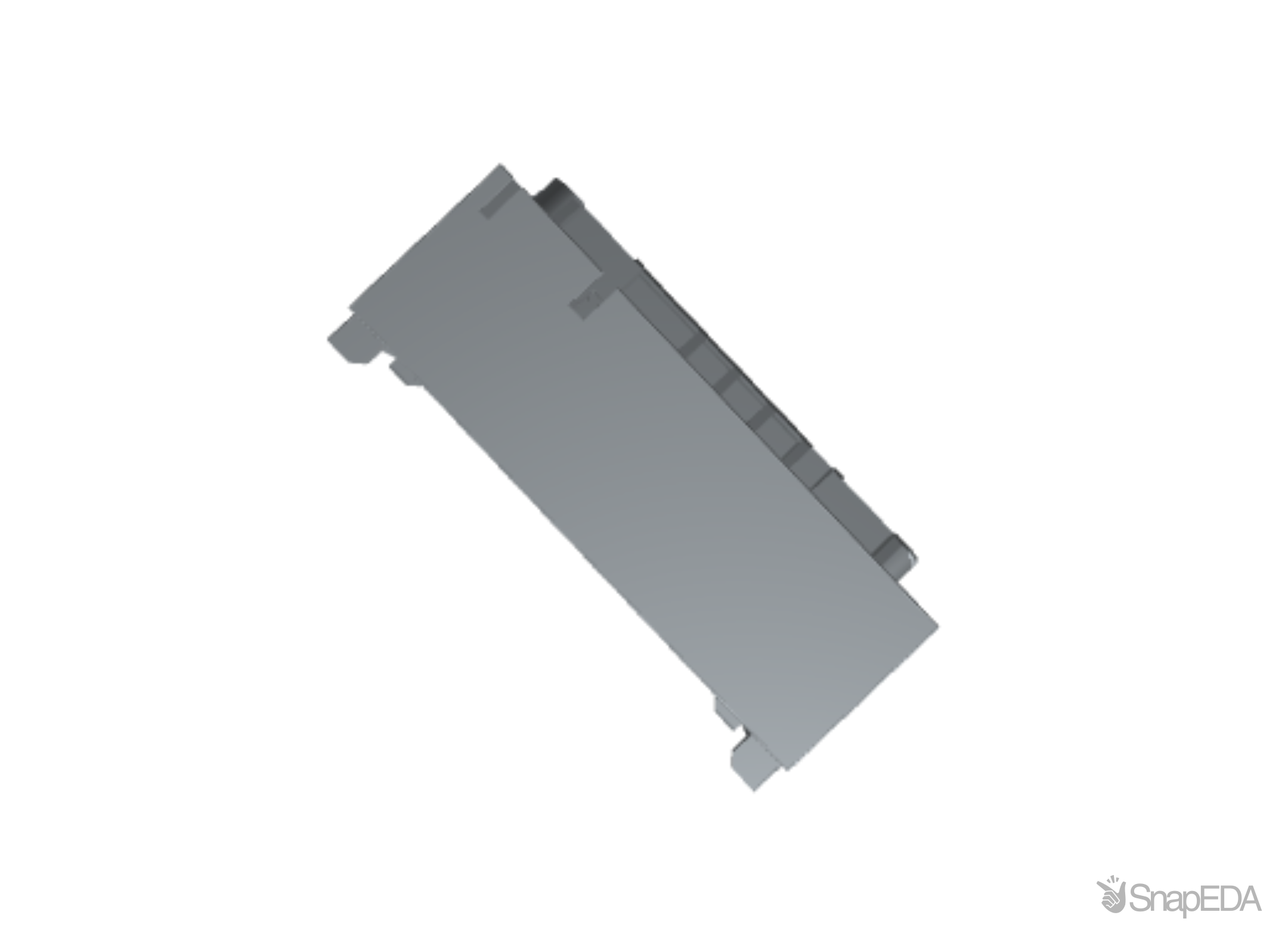

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 9-1452380-9
| Part Name | 9-1452380-9 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .138 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 1.654 |
| Operating Voltage (V) | 14 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for female terminals |
| Number of Positions | 96 |
| Hybrid Connector | No |
| TE Internal Number | 9-1452380-9 |
| Connector System | Wire-to-Device |
| Number of Rows | 4 |
| Strain Relief | Yes |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | No |
| Operating Temperature Range | -40 – 257 |
| Packaging Method | Box |
| Packaging Quantity | 252 |
| Length | 77.9 |
| Cable Exit Angle | Other |
| Serviceable | Yes |
| RoHS | True |
| Mating Tab Width | .047 |
| Sealable | Yes |
| Color | Black |
| Body Material | PA GF |
| Height | 1.406 |
| Primary Locking Feature | Integrated in Housing |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 9-1452380-9 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
82
|
|
Visit Site | |
|
★ Featured
|
148
|
|
Visit Site | |
|
★ Featured
|
127
|
N/A | Visit Site | |
| Arrow Electronics |
83
|
1 x $7.51
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Farnell UK |
206
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Newark |
109
|
|
Visit Site | |
| Onlinecomponents |
286
|
|
Visit Site | |
| Powell Electronics |
150
|
|
Visit Site | |
| TME |
228
|
|
Visit Site | |
| TTI Americas |
85
|
|
Visit Site | |
| Verical |
55
|
|
Visit Site | |
| element14 Singapore |
109
|
|
Visit Site |
No issues have been reported for the 9-1452380-9
If you experienced any issues with this part, please report it.
