9-146252-0
SnapVerified
Shrouded PCB Breakaway Header, 80-C, Thru-Hole, Straight, AMPMODU Headers Series | TE Connectivity 9-146252-0
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 9-146252-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

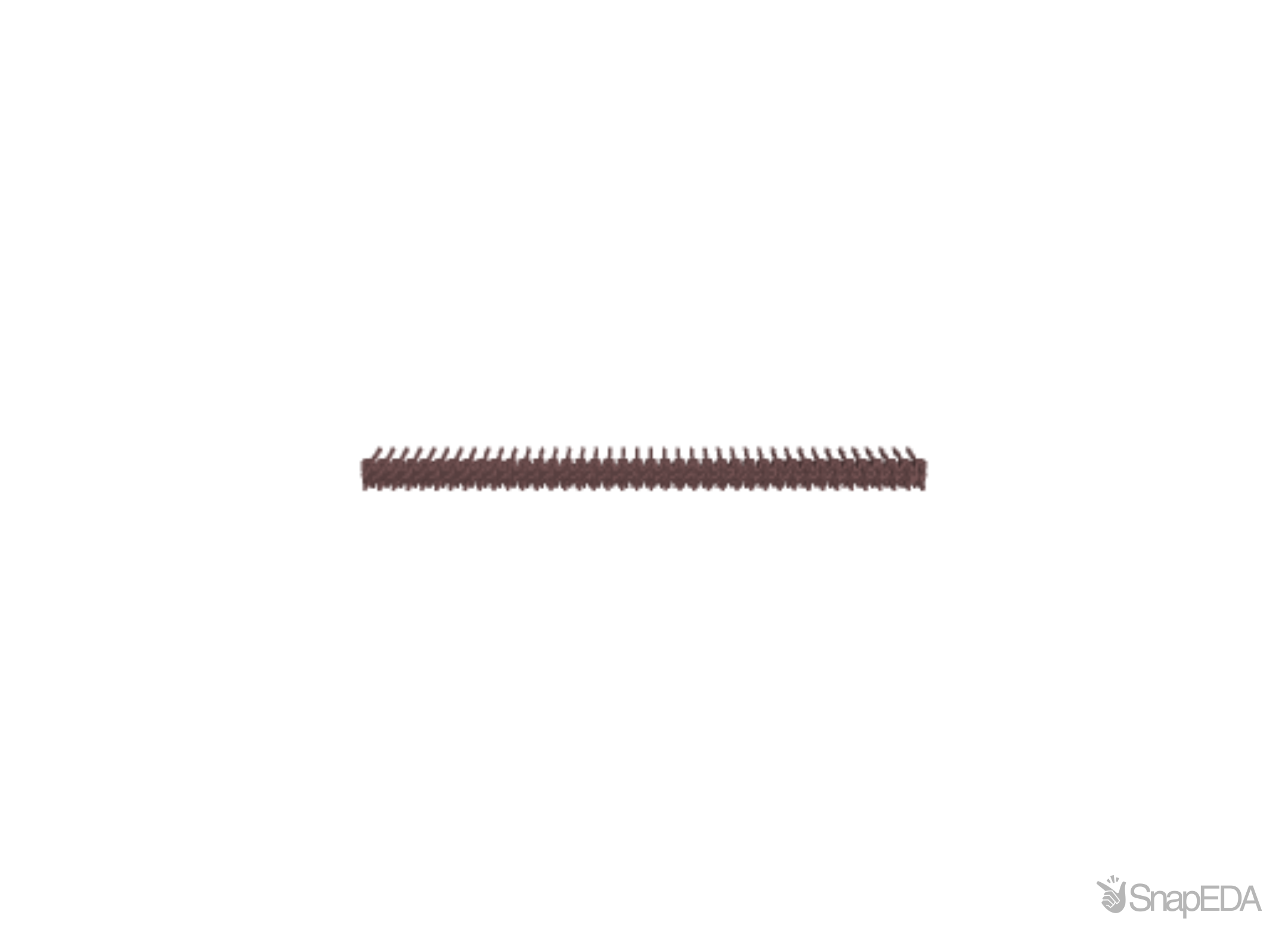

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 9-146252-0
| Part Name | 9-146252-0 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .1 |
| Dielectric Withstanding Voltage (V) | 750 V |
| Housing Material | Thermoplastic |
| Row-to-Row Spacing | .1 |
| Operating Voltage (V) | 30 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .062 |
| Termination Post & Tail Length | 3.18 |
| Contact Current Rating (Max) (A) | 3 |
| Mating Post Length | .318 |
| TE Internal Number | 9-146252-0 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 2 |
| PCB Contact Termination Area Plating Material Thickness | 100 – 200 |
| Header Type | Breakaway |
| Contact Underplating Material | Nickel |
| Strain Relief | Without |
| Contact Shape | Square |
| Housing Color | Black |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Carton |
| Packaging Quantity | 50 |
| Contact Base Material | Phosphor Bronze |
| Solder Process Feature | Board Standoff |
| Number of Positions | 80 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Approved Standards | UL E28476 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| 端子の下地めっきの材料 | Nickel |
| High Temperature Housing | Yes |
| Post Size | .64 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 15 |
| Panel Mount Feature | Without |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Connector Profile | Standard |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
