9-1617541-0
Jmac-30xp=M39016/9-063p, 9-1617541-0
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 9-1617541-0 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

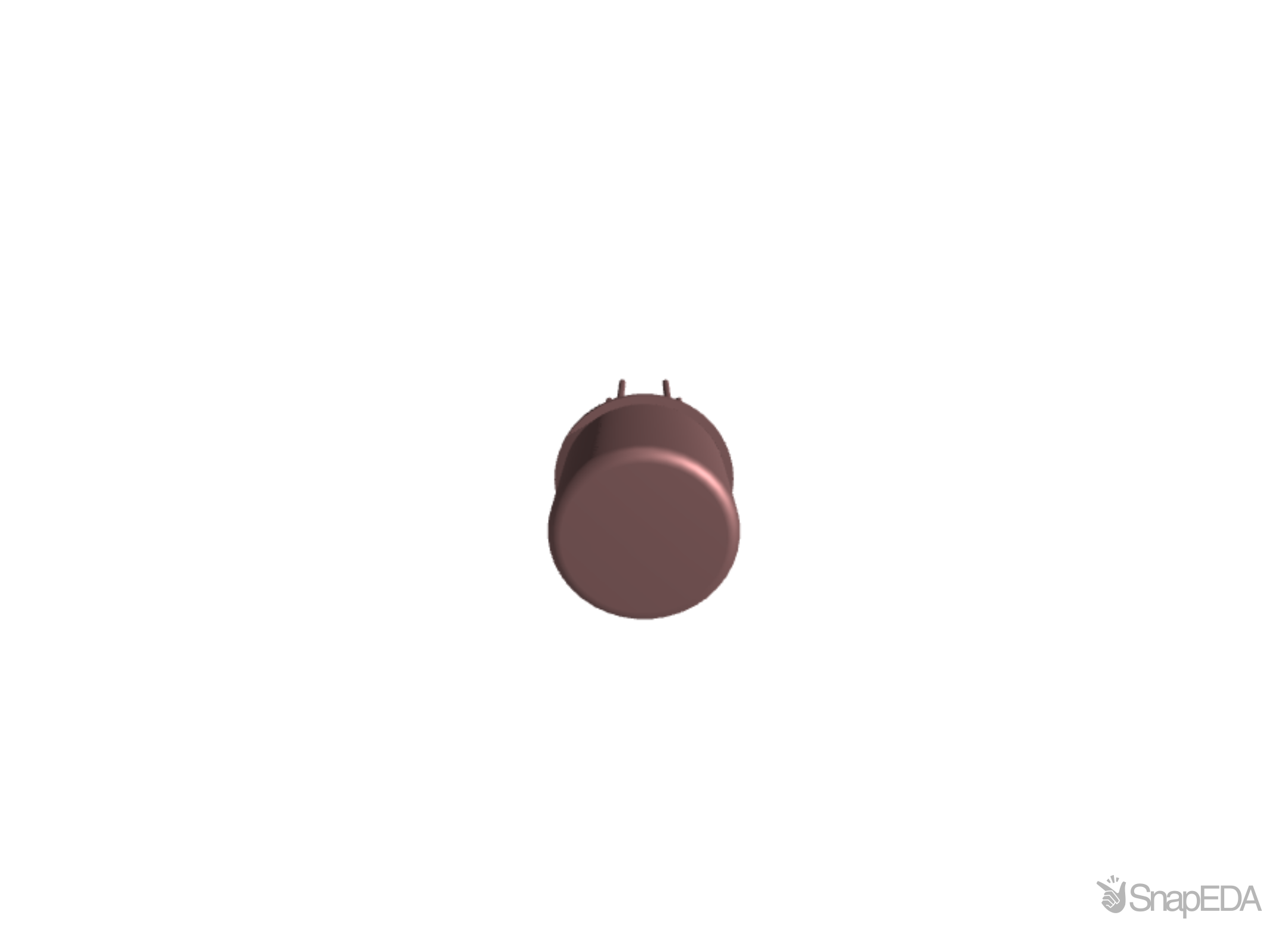

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 9-1617541-0
| Part Name | 9-1617541-0 |
| Manufacturer | TE Connectivity |
| Coil Power Rating (DC) | 360 |
| Coil Suppression Diode | Without |
| Coil Voltage (V) | 30 |
| MOSFET Driver | Without |
| Contact Switching Voltage (Max) (V) | 28 |
| Coil Resistance | 2500 |
| Contact Current Class (A) | Low Level 1 A |
| Contact Arrangement | 2 Form C, DPDT, 2 C/O |
| Contact Current Rating (A) | 1 |
| Vibration | 30G's, 10 3000Hz |
| Coil Latching | Without |
| TE Internal Number | 9-1617541-0 |
| Input Voltage (V) | 17.7 |
| Product Type | Relay |
| Relay Type | Military/Aerospace High Performance |
| Operating Temperature Range | -65 to 125 |
| Transistor Driver | Without |
| Shock | 75G's, 6ms |
| Enclosure Type | Hermetically Sealed |
| Coil Magnetic System | Non-Polarized, Monostable |
| Actuating System | DC |
| RoHS | N |
| Mounting Type | Printed Circuit Board |
| Coil Polarity Protection Diode | Without |
| Termination Type | PC Pins |
| Coil Power Measurement | Milliwatts |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 9-1617541-0 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
32 x $86.63
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Interstate Connecting Components |
|
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| Onlinecomponents |
60
|
|
Visit Site | |
| Sager |
|
|
Visit Site |
No issues have been reported for the 9-1617541-0
