9-2176070-7
100 kOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
Availability: In Stock
Package Type: 2512
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 9-2176070-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

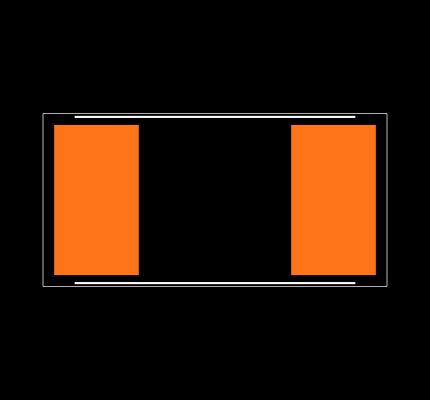

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 9-2176070-7
| Part Name | 9-2176070-7 |
| Manufacturer | TE Connectivity |
| Mount Style | Surface Mount |
| Dimensions | 6.35 x 3.2 x .55 |
| Voltage Rating (V) | 250 |
| Element Type | Thick Film |
| Resistor Type | Power Resistor |
| Packaging Method | Taped & Reeled |
| TE Internal Number | 9-2176070-7 |
| Temperature Coefficient | ±100 |
| Resistance | 100K |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | 2 |
| Product Type | Fixed Resistor |
| Tolerance | 1% |
| RoHS | RoHS Compliant By Exemption |
