9-966140-3
SnapVerified
Rectangular Power Connector, Junior Power Timer Series, Through Hole, Header, 12, 5 mm, Pin
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 9-966140-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

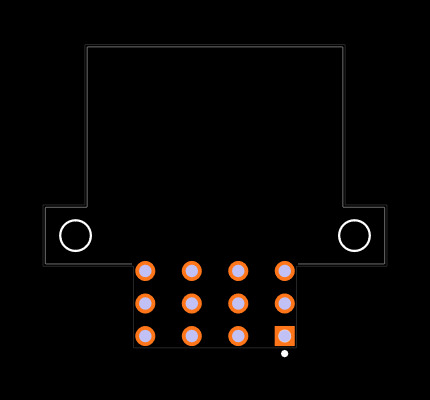

Footprint
No web preview
This Footprint is Available for

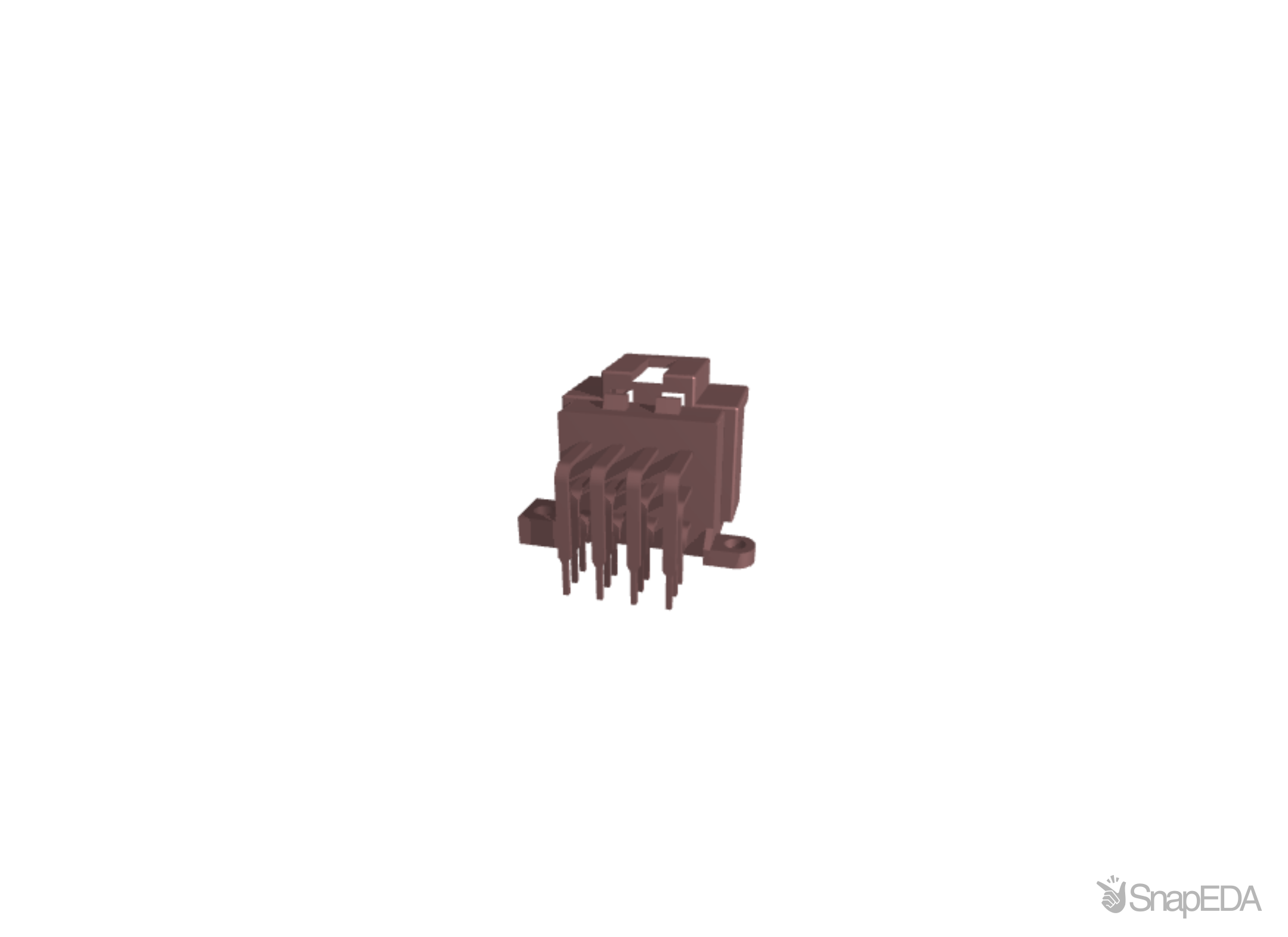

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 9-966140-3
| Part Name | 9-966140-3 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 3.5 |
| Circuit Application | Signal |
| Packaging Type | Tray |
| Width | 20.3 |
| Operating Voltage (V) | 24 |
| Number of Positions | 12 |
| PCB Mount Retention Type | Solder Tail |
| PCB Mount Retention | Without |
| Tab Thickness | .8 |
| Operating Temperature (Max) | 65 |
| TE Internal Number | 9-966140-3 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Alignment | Without |
| Number of Rows | 3 |
| Locking Interface | With |
| Number of Signal Positions | 12 |
| Sealable | No |
| Hybrid Header | No |
| Nominal Voltage Architecture (V) | 12 |
| Mounting Orientation | Horizontal/90 |
| Operating Temperature Range | -40 to 100 |
| Shielded | No |
| Mounting Holes | With |
| Termination Method | Through Hole - Solder |
| Packaging Quantity | 168 |
| Length | 1.4173 |
| RoHS | True |
| Tab Width | .11 |
| Color | Black |
| Profile Height from PCB | 26.2 |
| UL Flammability Rating | UL 94-HB |
| Panel Mount Feature | With |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
