Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
90120-0128
Header 2.54mm, single row, vertical, 8w | Molex Incorporated 90120-0128
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 90120-0128 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

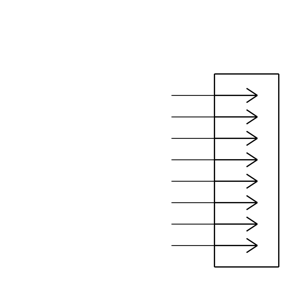

Symbol
No web preview
This Symbol is Available for

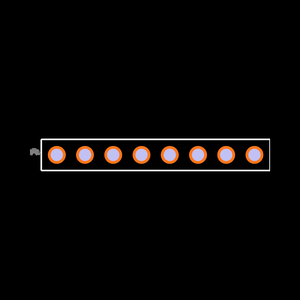

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 90120-0128
| Part Name | 90120-0128 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Brass |
| Tail Pin Length | 2.9 (mm) |
| Current Rating (A) | 3.0 (A) |
| Shrouded Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 350.0 V |
| Series | C-Grid III |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Mating Pin Length | 6.75 (mm) |
| Number Of Contacts | 8 |
| Series Number | 90120 |
Inventory for the 90120-0128 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,128
|
|
Visit Site | |
|
★ Featured
|
1,243
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
800
|
|
Visit Site | |
| Farnell UK |
1,470
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
323
|
|
Visit Site | |
| Onlinecomponents |
167
|
|
Visit Site | |
| Powell Electronics |
1,078
|
|
Visit Site | |
| RS UK |
540
|
5 x $1.17
|
Visit Site | |
| Verical |
800
|
400 x $0.50
|
Visit Site | |
| element14 Singapore |
323
|
|
Visit Site |
No issues have been reported for the 90120-0128
If you experienced any issues with the symbol or footprint, please report it.
