90120-0766

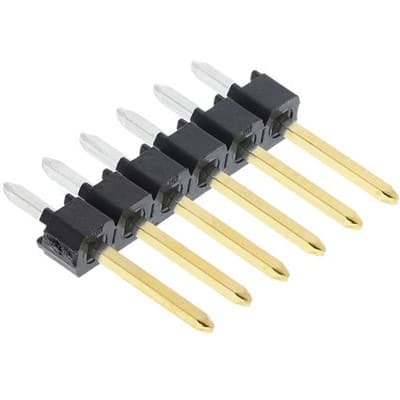

6 way single row straight header | Molex Incorporated 90120-0766
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 90120-0766 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

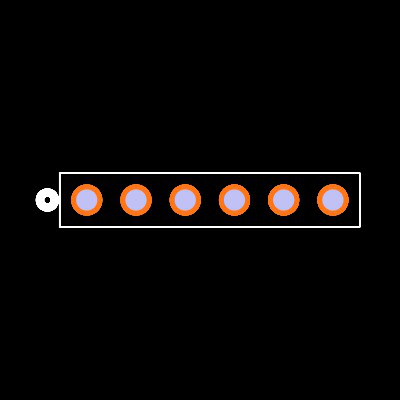

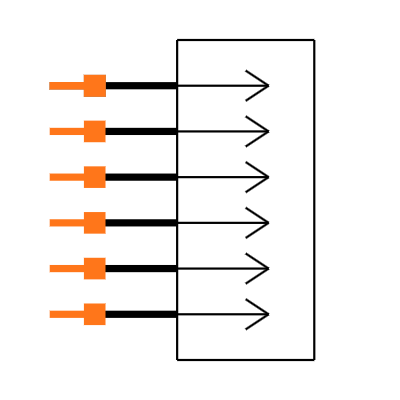

- Symbol and Footprint
- 3D Model

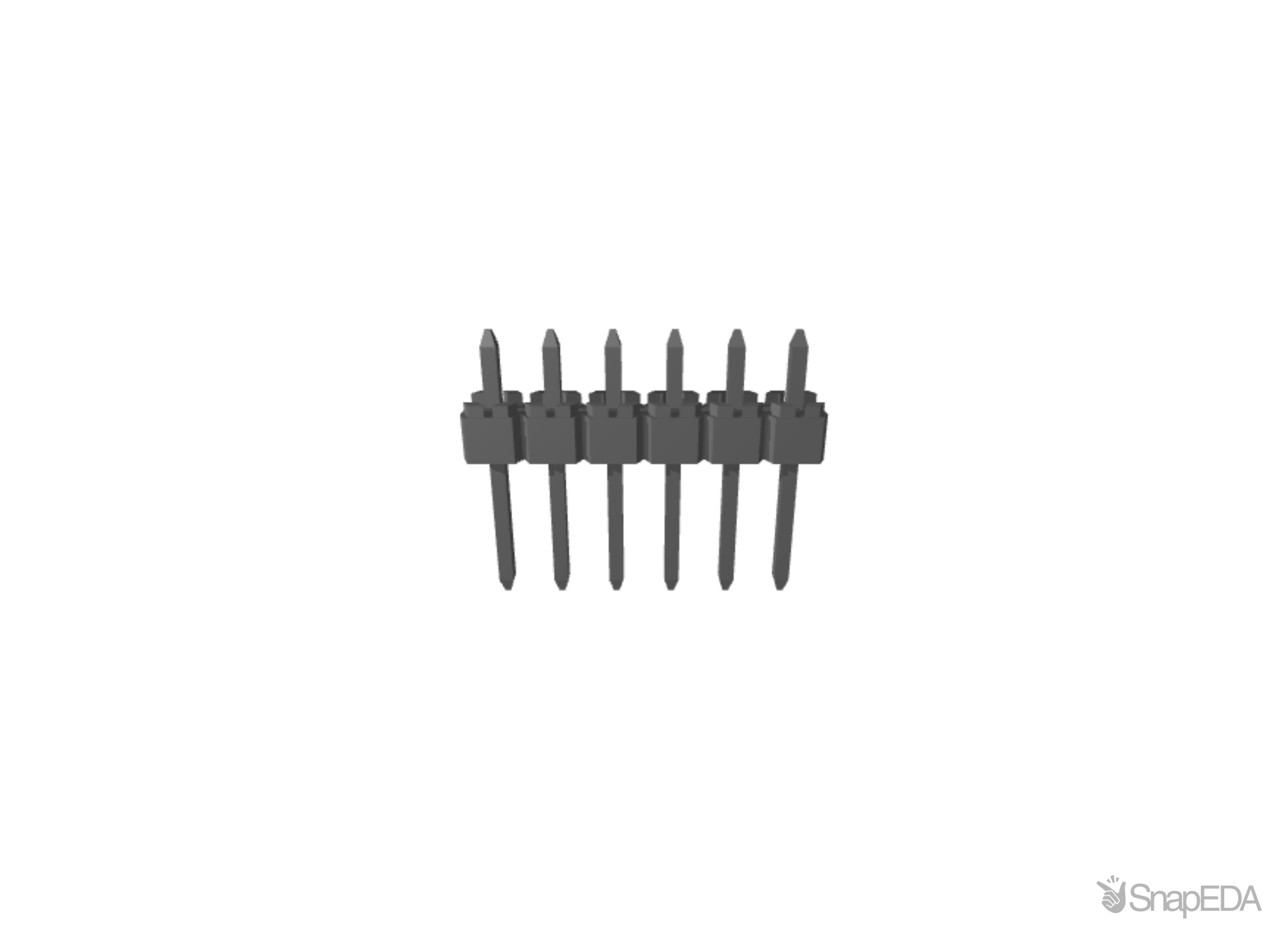

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 90120-0766
| Part Name | 90120-0766 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Unshrouded |
| Tail Pin Length | 2.9 (mm) |
| Current Rating (A) | 3.0 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 350.0 V |
| Series | C-Grid III |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Mating Pin Length | 6.75 (mm) |
| Contact Material | Brass |
| Number Of Contacts | 6 |
| Series Number | 90120 |
Inventory for the 90120-0766 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,920
|
|
Visit Site | |
| Onlinecomponents |
377
|
|
Visit Site | |
| RS Americas |
70
|
|
Visit Site | |
| Verical |
1,882
|
|
Visit Site |
No issues have been reported for the 90120-0766
If you experienced any issues with the symbol or footprint, please report it.
